StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Slim TV Mounting Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel TV Wall Mount

StarTech.com VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays, Slim Wall Mount TV Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel Monitor Wall Mount (FHA-TV-WALL-MOUNT)

Key Features

• HEIGHT ADJUSTABLE TV WALL MOUNT: Spring-assisted height adjustable range 12.6in (32cm); Articulating wall mount TV bracket supports TVs up to 55in; Max weight 66lb (30kg); Single-stud design made from powder-coated diecast aluminum for maximum durability
• ONE-TOUCH MOTION: Full-motion TV wall mount features a spring mechanism for effortless viewing angle and height adjustments; VESA plate features +/-90° swivel, +8/-15° tilt, and +/-3° rotation; Toolless adjustment w/ built-in cable management
• RANGE OF MOTION: Low profile VESA TV wall mount with jointed arm assembly supports +/-90° swivel and folds to just 2.2in (5.8cm) from the wall; Max arm extension 23.4in (59.5cm); Lateral range of 3.9ft (1.19m) ideal for corner mounting maximizing space
• COMPATIBILITY: TV mounting bracket supports TVs up to 55" from LG, Samsung, Sony, Hisense, Sharp, and other TVs; Compatible VESA patterns: 75x75, 100x100, 200x100, 200x200, 300x300, 400x200, and 400x400; Spacers and various M5/M6/M8 screws included
• QUICK AND CLEAN INSTALLATION: Swivel TV wall mount ships pre-assembled for quick deployment; Wall plate with mounting holes facilitate simplified installation; Includes installation template, bubble level, wood studs, and concrete wall mounting hardware

Description

Mounting Hardware Included | One-touch Adjustments | Digital Signage

The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.

Versatile TV Mounting

Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.

Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.

Full-Motion Adjustment

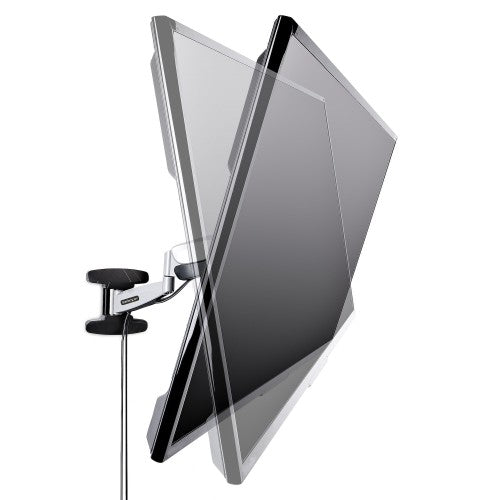

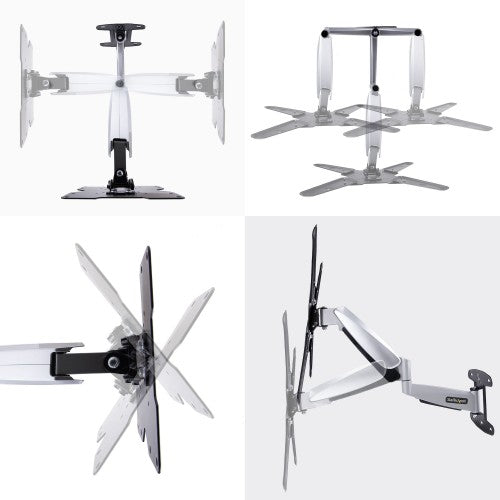

The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).

The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.

Durable Construction

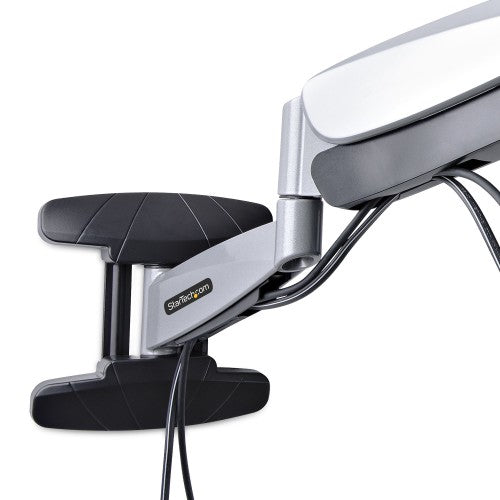

The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.

The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Specifications

Mounting
Mounting type	Wall
Minimum screen size	58.4 cm (23")
Panel mounting interface	75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400
Number of displays supported	1
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	400 x 400 mm
Maximum screen size	139.7 cm (55")
Maximum weight capacity	30 kg
Ergonomics
Height adjustment	Yes
Cable management	Yes
Tilt angle range	-15 - 8°
Swivel angle	180°
Angle of rotation	3°
Distance to the wall (min)	5.8 cm
Distance to the wall (max)	59.5 cm
Rotating	Yes
Technical details
Cable management	Yes
Angle of rotation	3°
Number of displays supported	1
Distance to the wall (min)	5.8 cm
Distance to the wall (max)	59.5 cm
Product colour	Black, Silver
Mounting type	Wall
Country of origin	China
VESA mount included	Yes
Design
Cable management	Yes
Product colour	Black, Silver
Anti-theft function	No
Housing material	Aluminium, Steel
Packaging content
Screws included	Yes
Number of washers included	13
Number of spacers included	16
Number of screws	33
Wrench included	Yes
Wrench type	Hexagonal wrench
Manual	Yes
Mounting plate included	Yes
Weight & dimensions
Width	450 mm
Depth	595 mm
Height	450 mm
Weight	6 kg
Packaging data
Package width	585 mm
Package depth	440 mm
Package height	95 mm
Package weight	6.1 kg
Manual	Yes
Logistics data
Master (outer) case width	605 mm
Master (outer) case length	460 mm
Master (outer) case height	305 mm
Products per master (outer) case	1 pc(s)
Other features
Mounting type	Wall
Country of origin	China
