Neomounts WL30S-850BL18 TV mount wall 43-86" - fixed - lockable - fast installation

Neomounts LEVEL-850 WL30S-850BL18 Fixed TV mount wall - 43-86" - max 60 kg - VESA 100x100-800x400 - d 3,3 cm - level adjustment - lockable (incl. security screw, excl. lock) - Rapid Install-model incl. fixing template - black

Description

The Neomounts WL30S-850BL18 LEVEL is a fixed wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. Height and level adjustment is available for the perfect installation.

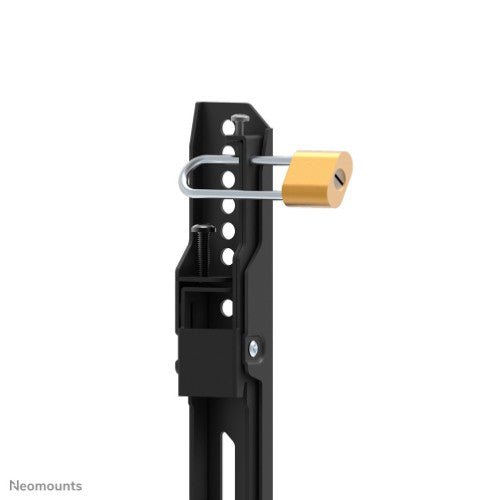

The LEVEL-850 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).

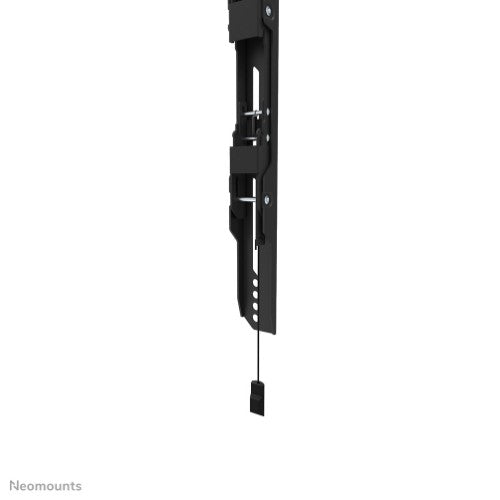

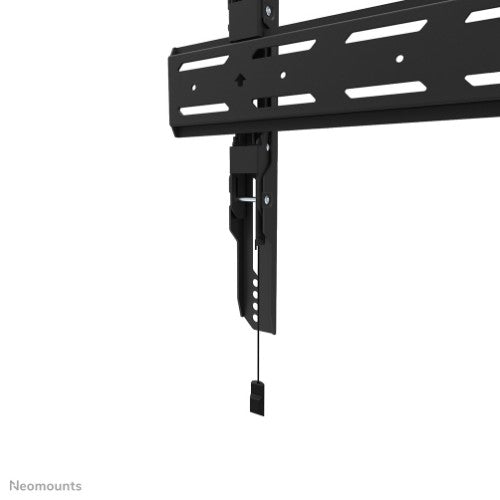

The WL30S-850BL18 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.

Specifications

Mounting
Maximum weight capacity (per display)	60 kg
Mounting type	Wall
Minimum screen size	109.2 cm (43")
Panel mounting interface	100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400,680 x 300,800 x 200,800 x 400
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	800 x 400 mm
Maximum screen size	2.18 m (86")
Maximum weight capacity	60 kg
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 20 mm
Distance to the wall (max)	3.3 cm
Type	Fixed
Technical details
Number of displays supported	1
Distance to the wall (max)	3.3 cm
Product colour	Black
Mounting type	Wall
Country of origin	China
Package net weight	4 kg
Master (outer) case net weight	18 kg
Lockable	Security screw included
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Width	884 mm
Depth	33 mm
Height	425 mm
Weight	2.7 kg
Depth (max)	3.3 cm
Packaging data
Package width	904 mm
Package depth	158 mm
Package height	74 mm
Package weight	4 kg
Logistics data
Master (outer) case width	924 mm
Master (outer) case length	240 mm
Master (outer) case height	343 mm
Master (outer) case gross weight	24.7 kg
Products per master (outer) case	6 pc(s)
Master (outer) case net weight	18 kg
Products per pallet (EU)	72 pc(s)
Harmonized System (HS) code	7326909890
Other features
Mounting type	Wall
Country of origin	China
