Neomounts FPMA-W815 Monitor/TV mount wall 10-40" - full motion

Neomounts FPMA-W815 Full motion Monitor/TV mount wall - 10-40" - max 20 kg - VESA 75x75-200x200 - d 9 cm - black

Description

The Neomounts wall mount, model FPMA-W815 is a tilt-, swivel and rotatable wall mount for flat screens up to 40". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.

Neomounts' tilt (30°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is 9 centimetres deep.

Neomounts FPMA-W815 has one pivot point and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 20 kg. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

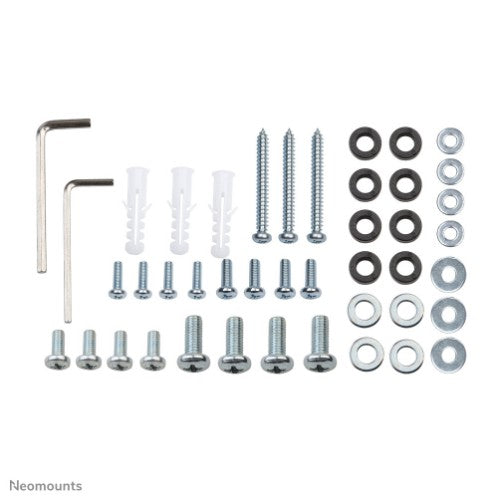

All installation material is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	20 kg
Mounting type	Wall
Minimum screen size	25.4 cm (10")
Panel mounting interface	100 x 200,100 x 100,200 x 100,200 x 200,75 x 75
Number of displays supported	1
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Maximum screen size	101.6 cm (40")
Maximum weight capacity	20 kg
Ergonomics
Tilt angle range	0 - 30°
Swivel angle range	0 - 80°
Swivel angle	80°
Angle of rotation	360°
Distance to the wall (min)	0 mm
Distance to the wall (max)	9 cm
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Type	Full motion
Technical details
Angle of rotation	360°
Number of displays supported	1
Distance to the wall (min)	0 mm
Distance to the wall (max)	9 cm
Product colour	Black
Mounting type	Wall
Country of origin	China
Package net weight	1.16 kg
Master (outer) case net weight	9.3 kg
Design
Product colour	Black
Housing material	Aluminium
Weight & dimensions
Weight	1.16 kg
Packaging data
Package width	230 mm
Package depth	100 mm
Package height	245 mm
Package weight	1.2 kg
Logistics data
Master (outer) case width	830 mm
Master (outer) case length	260 mm
Master (outer) case height	250 mm
Master (outer) case gross weight	12 kg
Products per master (outer) case	8 pc(s)
Master (outer) case net weight	9.3 kg
Products per pallet (EU)	120 pc(s)
Harmonized System (HS) code	7326909890
Other features
Mounting type	Wall
Country of origin	China
