Neomounts WL40S-910BL16 TV pillar mount 40-70" - full motion - diam. 25-100 cm

Neomounts WL40S-910BL16 Full motion TV pillar mount - 40-70" - max 45 kg - VESA 200x100-600x400 - suitable for Ø 25-100 cm - d 8,2-59 cm - level adjustment - black

Description

The Neomounts WL40S-910BL16 is a full motion pillar mount for screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (90°) technology allows you to create the optimum viewing angle. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Level adjustment is available for the perfect installation.

The WL40S-910BL16 has a depth of 8,2-59 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm.

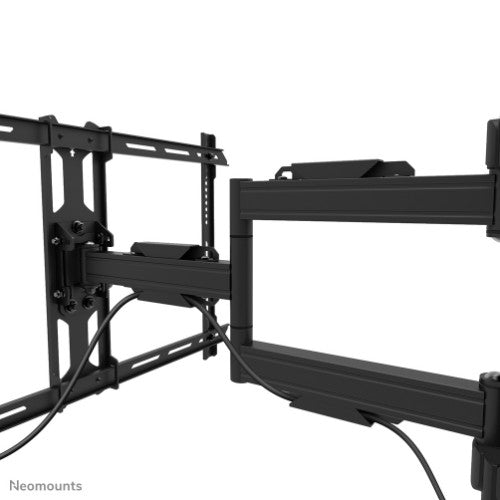

The mount is equipped with metal cable management to secure any loose cables. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.

Specifications

Mounting
Maximum weight capacity (per display)	45 kg
Mounting type	Pole
Minimum screen size	101.6 cm (40")
Panel mounting interface	200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,600 x 300,600 x 200,600 x 400
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	177.8 cm (70")
Maximum weight capacity	45 kg
Ergonomics
Adjustable depth	Yes
Cable management	Yes
Tilt angle range	-2 - 12°
Swivel angle range	-45 - 45°
Angle of rotation	6°
Pivot angle	-3 - 3°
Distance to the wall (min)	8.2 cm
Distance to the wall (max)	59 cm
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Type	Full motion
Technical details
Cable management	Yes
Angle of rotation	6°
Pivot angle	-3 - 3°
Number of displays supported	1
Distance to the wall (min)	8.2 cm
Distance to the wall (max)	59 cm
Product colour	Black
Mounting type	Pole
Country of origin	China
Package net weight	11.1 kg
Master (outer) case net weight	19 kg
Compatible pole diameter (min)	25 cm
Compatible pole diameter (max)	100 cm
Warranty period	5 year(s)
Lockable	Not lockable
Design
Cable management	Yes
Product colour	Black
Housing material	Steel
Packaging content
Mounting kit	Yes
Weight & dimensions
Width	710 mm
Depth	590 mm
Height	520 mm
Weight	9.5 kg
Depth (min)	8.2 cm
Depth (max)	59 cm
Packaging data
Package width	386 mm
Package depth	95 mm
Package height	744 mm
Package weight	11.1 kg
Mounting kit	Yes
Logistics data
Master (outer) case width	205 mm
Master (outer) case length	406 mm
Master (outer) case height	764 mm
Master (outer) case gross weight	22.8 kg
Products per master (outer) case	2 pc(s)
Master (outer) case net weight	19 kg
Products per pallet (EU)	34 pc(s)
Harmonized System (HS) code	7326909890
Other features
Mounting type	Pole
Country of origin	China
Depth adjustment range	82 - 590 mm
