Neomounts WL35-750BL16 Heavy duty wall mount 42-86" - tilt - lockable - fast installation - TÜV

Neomounts LEVEL-750 WL35-750BL16 Tiltable heavy duty wall mount - 42-86" screen - max 125 kg - VESA 100x100-600x400 - d 9,3 cm - level adjustment - lockable (excl. lock) - TÜV certified - Rapid Install-model - Tilt Guard - black

Description

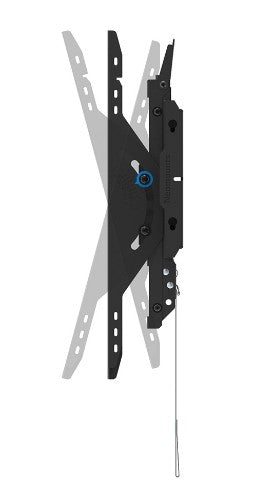

The Neomounts WL35-750BL16 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 86" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

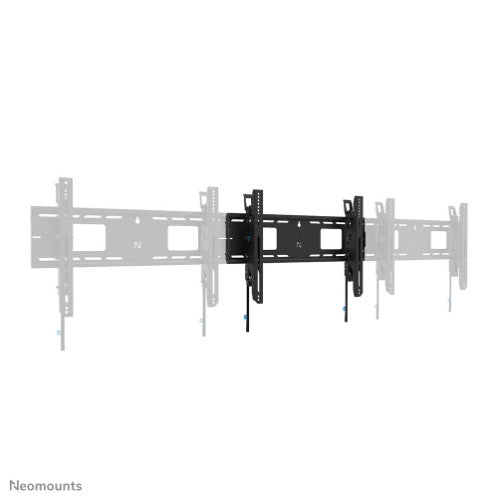

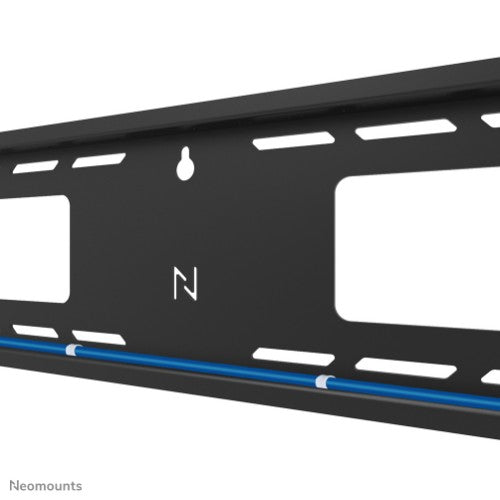

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

The WL35-750BL16 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

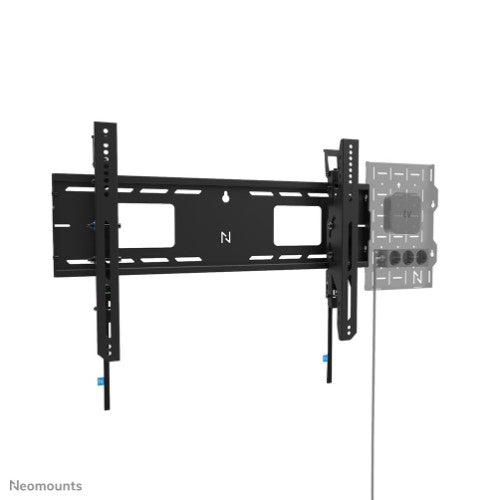

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Specifications

Mounting
Maximum weight capacity (per display)	125 kg
Mounting type	Wall
Minimum screen size	106.7 cm (42")
Panel mounting interface	100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	2.18 m (86")
Maximum weight capacity	125 kg
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 10 mm
Cable management	Yes
Tilt angle range	-15 - 15°
Distance to the wall (max)	9.3 cm
Tilt adjustment	Yes
Technical details
Cable management	Yes
Number of displays supported	1
Distance to the wall (max)	9.3 cm
Product colour	Black
Mounting type	Wall
Country of origin	China
Master (outer) case net weight	16.5 kg
Quantity per pack	1 pc(s)
Lockable	Padlock not included
Design
Cable management	Yes
Product colour	Black
Housing material	Steel
Weight & dimensions
Width	686 mm
Depth	93 mm
Height	430 mm
Weight	5.5 kg
Depth (max)	9.3 cm
Packaging data
Package width	728 mm
Package depth	102 mm
Package height	209 mm
Package weight	6.9 kg
Logistics data
Master (outer) case width	746 mm
Master (outer) case length	227 mm
Master (outer) case height	324 mm
Master (outer) case gross weight	21.5 kg
Products per master (outer) case	3 pc(s)
Master (outer) case net weight	16.5 kg
Products per pallet (EU)	60 pc(s)
Harmonized System (HS) code	7326909890
Other features
Mounting type	Wall
Country of origin	China
