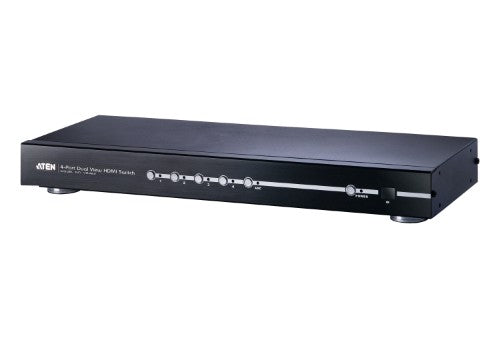

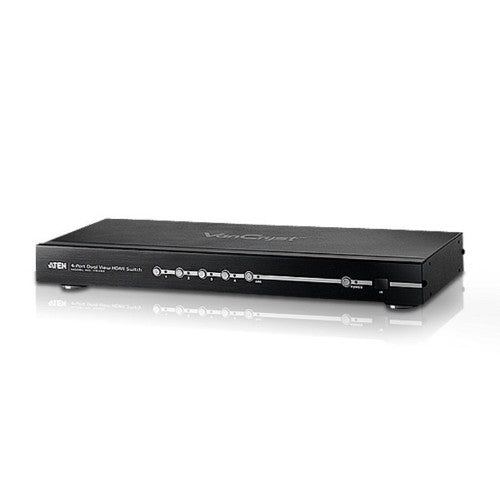

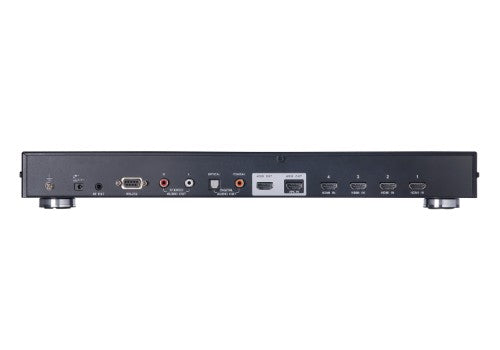

ATEN AT-VS482

4-Port HDMI Switch with Dual Output

Key Features

• Allows up to four HDMI A/V sources to be connected to two HDMI displays
• HDCP 1.4 compatible, HDMI (3D, Audio Return Channel and Deep Color)
• Supports Dolby True HD and DTS HD Master Audio
• Audio Return Channel (ARC) function – connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
• OSD for system configuration setting and information display
• Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
• Feature EDID Expert technology to set up different configurations via different EDID mode
• Allows users to view the HDMI input source port / device for easy selection
• Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x 1200)
• Built-in bi-directional RS-232 serial control port for high-end system control *
• Extra audio from HDMI input signal that supports both optical and coaxial digital audio and one stereo audio output
• IR control signal extension – extend the reach of the IR controller by adding an IR receiver unit
• Rack mountable
• * Note: The VS482 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Description

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482 4- Port Dual View HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.

The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.

Specifications

Ports & interfaces
Video port type	HDMI
Video out	2 x HDMI Type A Female (Black)
Video in	4 x HDMI Type A Female (Black)
RS-232 ports	1
HDMI ports quantity	6
Number of HDMI outputs	2
HDMI in	4
Audio (L/R) out	2
DC-in jack	Yes
Features
HD type	Full HD
3D	Yes
Product colour	Black
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Rack mounting	Yes
Maximum resolution	1920 x 1080 pixels
Maximum operating distance	15 m
Material	Metal
HDCP	Yes
Bandwidth	225 MHz
Bandwidth	6.75 Gbit/s
Weight & dimensions
Width (imperial)	43.7 cm (17.2")
Height (imperial)	4.39 cm (1.73")
Depth (imperial)	15.8 cm (6.24")
Width	437.2 mm
Height	44 mm
Depth	158.6 mm
Weight	2.17 kg
Technical details
HD type	Full HD
3D	Yes
Width (imperial)	43.7 cm (17.2")
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80%
Height (imperial)	4.39 cm (1.73")
Depth (imperial)	15.8 cm (6.24")
Width	437.2 mm
Height	44 mm
Depth	158.6 mm
Product colour	Black
Video port type	HDMI
Video out	2 x HDMI Type A Female (Black)
Video in	4 x HDMI Type A Female (Black)
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Rack mounting	Yes
Maximum resolution	1920 x 1080 pixels
Maximum operating distance	15 m
Material	Metal
HDMI ports quantity	6
HDCP	Yes
Remote control included	Yes
Bandwidth	225 MHz
Bandwidth	6.75 Gbit/s
Compliance certificates	RoHS
Packaging content
User guide	Yes
Remote control included	Yes
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80%
