StarTech.com 2PORT-HDMI-SWITCH-8K video switch

StarTech.com 2-Port 8K HDMI Switch, HDMI 2.1 Switcher 4K 120Hz HDR10+, 8K 60Hz UHD, HDMI Switch 2 In 1 Out, Auto/Manual Source Switching, Power Adapter and Remote Included

Description

Switch between two HDMI video sources on a single display, with support for up to 8K 60Hz resolutions

This 2-Port HDMI Video Switch enables two HDMI sources to connect to a single HDMI input on a display.

8K 60Hz Resolution

The HDMI Switcher supports resolutions of up to 8K 60Hz. In addition, it supports lower resolutions at higher refresh rates, such as 4K 144Hz, 4K 120Hz, and 1080p 240Hz.

This Video Switch is HDMI 2.1 complaint and supports features such as Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Consumer Electronics Control (CEC). It is backwards compatible with HDMI 2.0 (and lower) devices.

Automatic or Manual Operation

The 8K Video Switch features three options for selecting the source device. Automatic mode detects and selects the most recently activated source device or it will revert to the last active source device. Manual mode selects the desired port, using the push buttons, or with the included remote control (batteries not included). The remote control can enable or disable the automatic switching mode and it can disable the IR functionality.

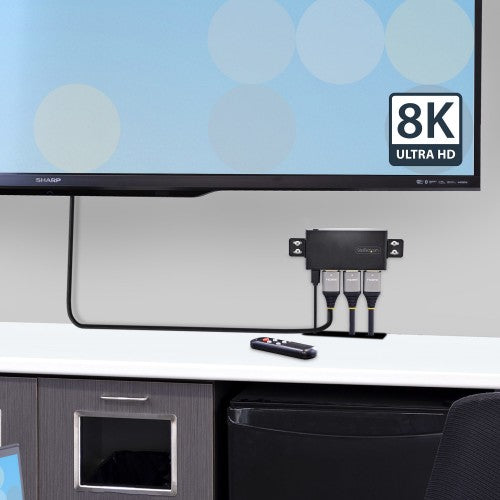

Flexible Installation Options

Use the included USB wall charger and 2.5ft (78cm) USB Micro-B cable to power the unit. If a wall outlet is unavailable, the 8K Switch can be powered through a 5V 1A USB port as well.

The included mounting kit and rubber feet enable versatile installation options. The metal housing enhances durability, making it suitable for installation and use in a variety of environments.

This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Specifications

Ports & interfaces
Video port type	HDMI
Number of HDMI outputs	1
HDMI in	2
USB port type	Micro-USB
Features
Audio output channels	7.1 channels
Product colour	Black
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 7680 x 4320
Plug and Play	Yes
Maximum resolution	7680 x 4320 pixels
Maximum operating distance	5 m
Material	Metal
LED indicators	Yes
Power
AC adapter input current	0.3 A
AC adapter output voltage	5 V
AC adapter output current	1 A
Power consumption (typical)	5 W
AC input voltage	100 - 240 V
Weight & dimensions
Width	44 mm
Height	14 mm
Depth	90 mm
Weight	87 g
Package width	123 mm
Package height	50 mm
Package depth	179 mm
Package weight	312 g
Technical details
Audio output channels	7.1 channels
Storage temperature (T-T)	-10 - 80 °C
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Width	44 mm
Height	14 mm
Depth	90 mm
Product colour	Black
Video port type	HDMI
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 7680 x 4320
Plug and Play	Yes
Maximum resolution	7680 x 4320 pixels
Maximum operating distance	5 m
Material	Metal
LED indicators	Yes
Remote control included	Yes
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Packaging data
Package width	123 mm
Package height	50 mm
Package depth	179 mm
Package weight	312 g
Packaging content
Quick start guide	Yes
Remote control included	Yes
Cables included	USB Type-A to Micro-USB Type-B
AC adapter included	Yes
Mounting kit	Yes
Operational conditions
Storage temperature (T-T)	-10 - 80 °C
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Sustainability
Sustainability compliance	Yes
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	550 mm
Master (outer) case length	400 mm
Master (outer) case height	280 mm
