StarTech.com Composite and S-Video to VGA Video Scan Converter

StarTech.com Composite and S-Video to VGA Video Scan Converter - composite to VGA - scan Converter - s-Video to VGA

Description

Convert and Scale a Composite or S-Video Signal to Work with a VGA Display

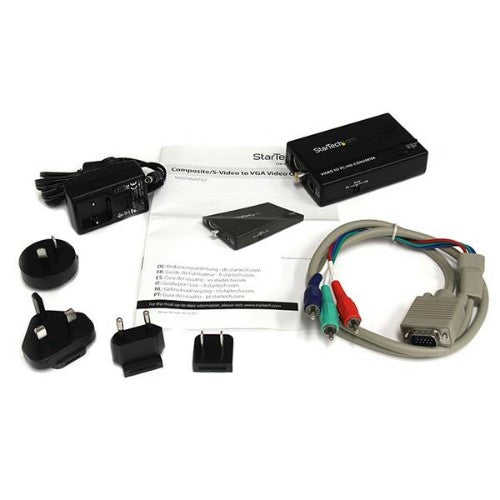

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
- Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
- Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution

Specifications

Technical details
Converter type	Active video converter
Housing material	Plastic
Maximum video resolution	1600 x 1200 pixels
Plug and Play	Yes
Output interface	VGA
On Screen Display (OSD)	Yes
Host interface	Composite, S-Video
Analog signal format system	NTSC, PAL
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Colour
Product colour	Black
Other features
Converter type	Active video converter
Housing material	Plastic
Plug and Play	Yes
On Screen Display (OSD)	Yes
Product colour	Black
Certification	CE, FCC, TAA, REACH
Features
Converter type	Active video converter
Housing material	Plastic
Plug and Play	Yes
On Screen Display (OSD)	Yes
Product colour	Black
Certification	CE, FCC, TAA, REACH
Video
Maximum video resolution	1600 x 1200 pixels
Analog signal format system	NTSC, PAL
Video resolutions	1024 x 768,1280 x 1024,1600 x 1200
Maximum refresh rate	60 Hz
Certificates
Certification	CE, FCC, TAA, REACH
Ports & interfaces
Output interface	VGA
Host interface	Composite, S-Video
Power
Power consumption (typical)	2.5 W
Operating voltage	5 V
Operating current	1 A
External power adapter	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	0 - 60%
Weight & dimensions
Width	64 mm
Depth	112 mm
Height	26 mm
Weight	86 g
Packaging data
Package width	209 mm
Package depth	118 mm
Package height	61 mm
Package weight	459 g
Logistics data
Harmonized System (HS) code	85176990
