ATEN VC812 video signal converter 1920 x 1200 pixels

HDMI to VGA/Audio Converter with Scaler

Key Features

• Converts HDMI signals to VGA output
• Supports analog/digital audio
• Superior video quality – up to 1080p; 1920 x 1200
• Features a built in high-performance scaler function for best image quality
• Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort
• 3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals
• Features a superior de-interlacer function for smooth video playback quality
• Built-in OSD function for video and system settings configuration
• Integrated superior video noise reduction
• Integrated next generation color engine – automatic picture quality/color adjustment and enhancement
• Automatically detects video input signals
• LED indication of power status and source device
• No software required – eliminates incompatibility and installation issues
• Note: The VC812 does not support HDCP

Description

The VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.

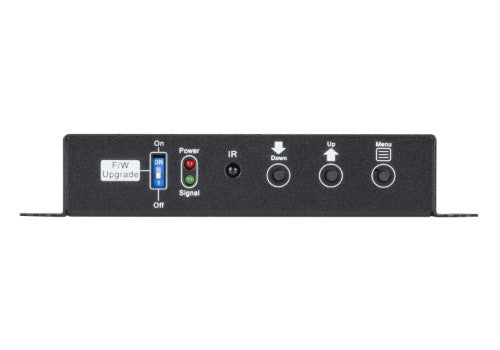

You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.

Specifications

Technical details
Maximum video resolution	1920 x 1200 pixels
Supported video modes	1080p
Output interface	HDMI
Host interface	HDB-15, RCA
Harmonized System (HS) code	85176990
Colour
Product colour	Black
Other features
Product colour	Black
Features
Product colour	Black
Video
Maximum video resolution	1920 x 1200 pixels
Supported video modes	1080p
Ports & interfaces
Output interface	HDMI
Host interface	HDB-15, RCA
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	83 mm
Depth	110 mm
Height	28 mm
Weight	310 g
Logistics data
Harmonized System (HS) code	85176990
