StarTech.com HDMI to RCA Converter Box with Audio

StarTech.com HDMI to RCA Converter Box with Audio - Composite Video Adapter - NTSC/PAL - 1080p

Description

Composite Video Adapter | NTSC/PAL | 1080p

This HDMI to RCA converter box with audio converts a digital HDMI video source (with supporting audio) to work with analog RCA composite video televisions and displays, in both NTSC and PAL systems.

Uncompromised Quality

This HDMI to composite video converter provides features that ensure the highest quality output image, such as noise reduction, frame rate conversion and adaptive contrast enhancement.

With support for high-definition input resolutions up to 1080p, this RCA adapter lets you convert your HDMI signal to composite video and audio while still producing a crystal-clear picture.

Ultimate Convenience

This lightweight composite adapter is compact and highly portable, so you can use it virtually anywhere. Offering support for a wide range of HDTV and PC input resolutions, this versatile RCA converter is a perfect solution for using newer devices with your existing legacy displays.

The ability to convert and use your new HDMI equipped device with your older televisions or displays not only offers flexibility but also saves you the cost of upgrading hardware, making it extremely convenient for home or office applications.

Hassle-Free Setup

To ensure easy operation and installation, this unique RCA composite video converter allows for plug-and-play installation without any additional software or drivers.

HD2VID2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

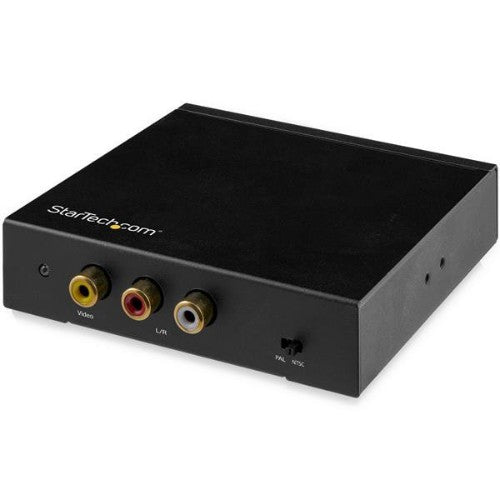

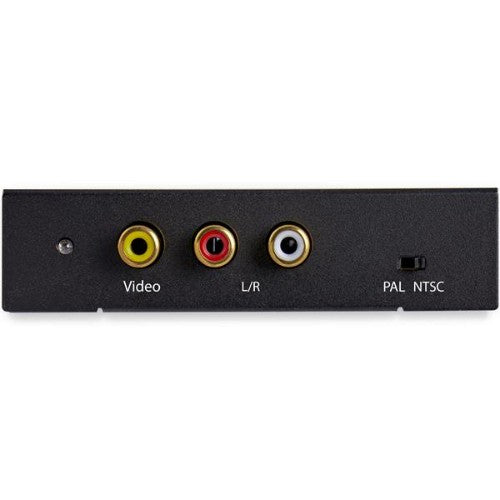

- Convert your current HDMI source to composite video and audio (yellow, white and red outputs)
- Achieve HDTV resolutions with support for up to 1080p
- Support for multiple HDTV and PC input resolutions, compatible with almost any HDMI source device

Specifications

Technical details
Converter type	Active video converter
Audio output channels	2.0 channels
Maximum video resolution	1920 x 1080 pixels
Supported video modes	480p, 576p, 720p, 1080p
Host interface	HDMI
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Colour
Product colour	Black
Other features
Converter type	Active video converter
Product colour	Black
Certification	REACH, FCC
Features
Converter type	Active video converter
Product colour	Black
Certification	REACH, FCC
Video
Maximum video resolution	1920 x 1080 pixels
Supported video modes	480p, 576p, 720p, 1080p
Video resolutions	640 x 480,800 x 600,1920 x 1080
Certificates
Certification	REACH, FCC
Audio
Audio output channels	2.0 channels
Audio sampling rate	48 kHz
Ports & interfaces
Host interface	HDMI
Power
Power plug type	Type M
Input current	0.4 A
Operating voltage	5 V
Operating current	2 A
Input voltage	100 - 240 V
External power adapter	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	103 mm
Depth	104 mm
Height	25 mm
Weight	225 g
Packaging data
AC adapter included	Yes
Included power plug types	ANZ, EU, JP, NA, UK
Package width	150 mm
Package depth	210.5 mm
Package height	52 mm
Package weight	545 g
Manual	Yes
Mounting bracket(s) included	Yes
Logistics data
Harmonized System (HS) code	85176990
Packaging content
AC adapter included	Yes
Included power plug types	ANZ, EU, JP, NA, UK
Manual	Yes
Mounting bracket(s) included	Yes
