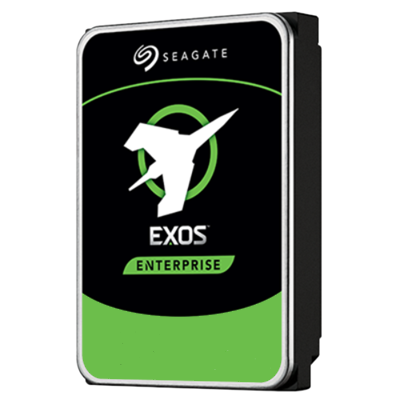

Seagate Enterprise ST14000NM000J internal hard drive 14 TB 7200 RPM 256 MB 3.5" Serial ATA III

14TB, 3.5", SATA III 6Gb/s, 7200RPM, 256MB Cache, Standard Model FastFormat™ (512e/4Kn)

Description

The most scalable drives in the datasphere, Exos X series hard drives integrate the latest technology in support of a secure and reliable cloud data centre.

Scalable. Responsive. Innovative

Designed to handle the most rigorous workloads, the Seagate Exos X series enterprise class drives are perfect, high-reliability solutions for servers, storage systems, and business-centric NAS systems. Whatever your applications, there’s an Exos drive for it.

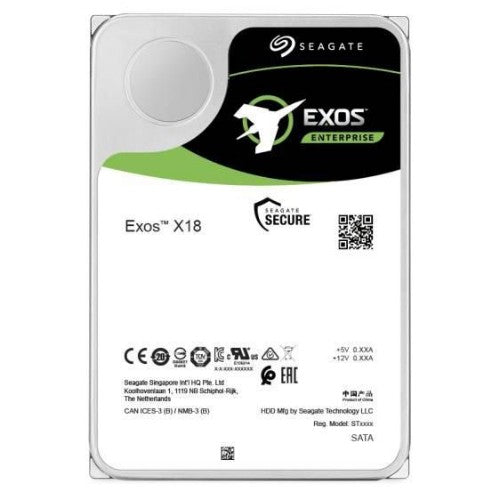

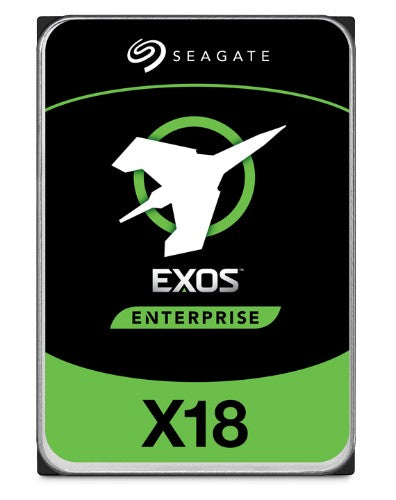

Exos X18

Designed for maximum storage capacity and the highest rack-space efficiency, delivering up to 18 TB capacity.

Specifications

Hard drive
Component for	Disk array
HDD sustained transfer rate	258 MiB/s
HDD interface transfer rate	6 Gbit/s
Average latency	4.16 ms
Mean time between failures (MTBF)	2500000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	14 TB
Features
Type	HDD
Component for	Disk array
HDD sustained transfer rate	258 MiB/s
HDD interface transfer rate	6 Gbit/s
Interface	Serial ATA III
Average latency	4.16 ms
Mean time between failures (MTBF)	2500000 h
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	14 TB
Storage drive buffer size	256 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Rotational Vibration (RV) sensors	Yes
24/7 operation	Yes
Power
Power consumption (write)	6.3 W
Power consumption (read)	9.2 W
Power consumption (idle)	4.9 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Operating shock	50 G
Non-operating vibration	2.27 G
Non-operating shock	200 G
Technical details
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84717050
Interface	Serial ATA III
Mean time between failures (MTBF)	2500000 h
Weight & dimensions
Width	101.8 mm
Weight	650 g
Height	26.1 mm
Depth	147 mm
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
