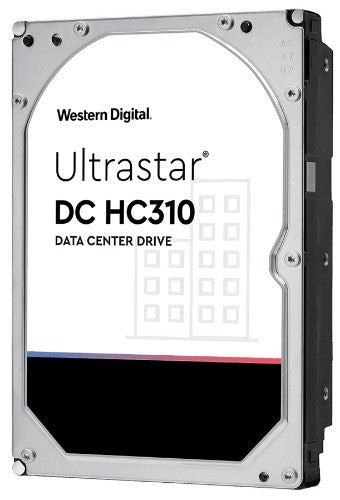

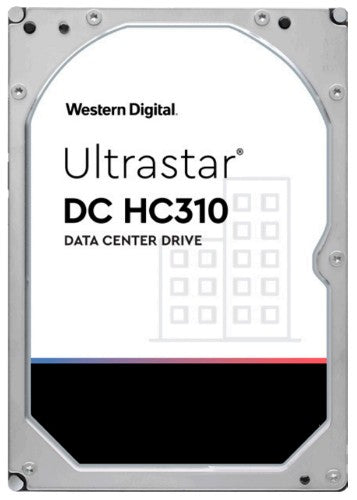

Western Digital Ultrastar DC HC310 HUS726T6TALE6L4 internal hard drive 6 TB 7200 RPM 256 MB 3.5" Serial ATA III

3.5", 7200 RPM, 256 MB Buffer, 6TB, SATA 6 Gb/s, 512e SE

Key Features

• 4TB-10TB capacities support both OEM & Cloud deployments
• Common Hardware & Firmware to minimize redundant testing needs
• Advanced Format 512e models
• Self-encrypting drive options

Description

Delivering Economics and Access Speed to Data Center Applications and Workloads

As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-filled design that delivers up to the industry leading 10TB1 of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds and is offered in either 6Gb/s SATA or 12Gb/s SAS interface with advanced format 512e2 sector size.

Specifications

Hard drive
Component for	Server/workstation
HDD interface transfer rate	6 Gbit/s
Write seek time	8.6 ms
Read seek time	8 ms
Average latency	4.16 ms
Mean time between failures (MTBF)	2000000 h
Start/stop cycles	600000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	6 TB
Features
Type	HDD
Component for	Server/workstation
HDD interface transfer rate	6 Gbit/s
Interface	Serial ATA III
Write seek time	8.6 ms
Read seek time	8 ms
Average latency	4.16 ms
Mean time between failures (MTBF)	2000000 h
Start/stop cycles	600000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	6 TB
Storage drive buffer size	256 MB
Power
Power consumption (typical)	7 W
Power consumption (idle)	5.9 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.67 G
Operating shock	70 G
Non-operating vibration	1.04 G
Non-operating shock	300 G
Technical details
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84717050
Interface	Serial ATA III
Mean time between failures (MTBF)	2000000 h
Weight & dimensions
Width	101.6 mm
Weight	715 g
Height	26.1 mm
Depth	147 mm
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
