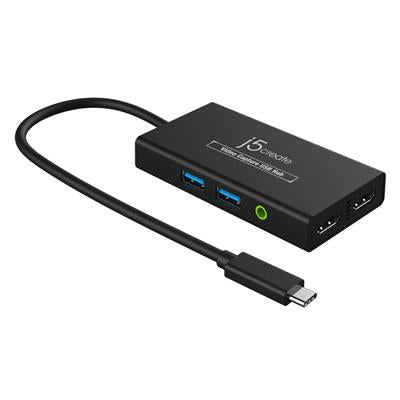

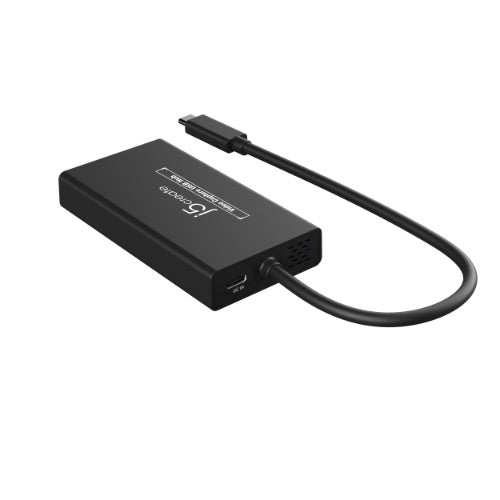

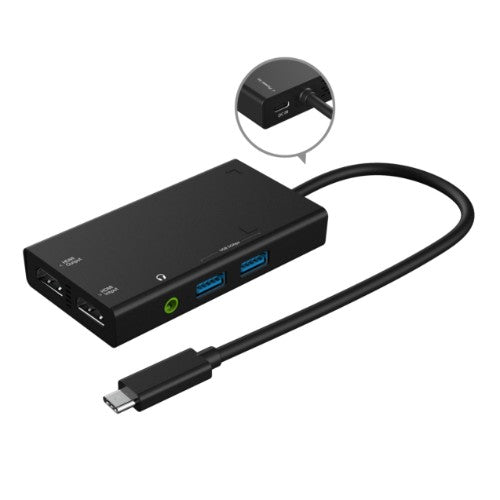

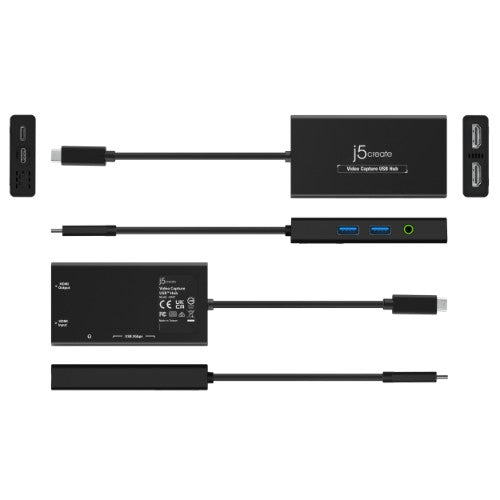

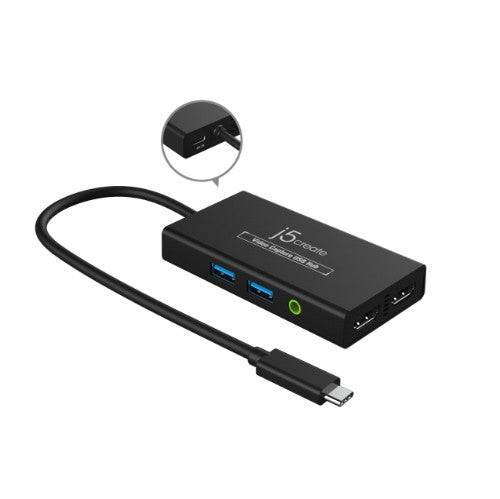

j5create JVA01-N Video Capture USB™ Hub

j5create JVA01 Video Capture USB™ Hub, Space Grey

Key Features

• "UVC Capture
• HDMI™ to USB-C® with 60W Power Delivery
• Power Delivery 3.0 lets you stream live without interruption
• Ultra-low latency stream through USB-C® 3.2 connection
• 3.5 mm audio jack allows you to connect headphones or speakers
• 2 x SuperSpeed USB™ 5Gbps ports to connect additional peripherals
• UVC standard - No driver installation required
• Field production made easy with its compact size"
• "USB-C® Hub with 4K HDMI™
• Easily add an HDMI™ video output with resolutions up to 4K @ 30 Hz
• USB-C® Power Delivery provides up to 60W pass-through charging to the connected devices
• 2 x USB™ Type-A ports provide up to 5Gbps transfer speed
• No driver installation required for Windows® or macOS®"

Description

The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub. With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device. It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity. The compact and lightweight design makes this video capture hub perfect for mobile streaming. When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display. It also supports upstream charging to keep your laptop powered while in use.

Specifications

Performance
Country of origin	Taiwan
Memory card slot(s)	No
Internal	No
Host interface	USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)	1920 x 1080 pixels
Plug and Play	Yes
Capturing from	Digital camera, Game console, PC
Product colour	Black
Compatible products	Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 (USB™ 3.2 is recommended).
Housing material	Plastic
High Dynamic Range (HDR) supported	No
Cable length	0.3 m
Technical details
Country of origin	Taiwan
Package type	Box
Memory card slot(s)	No
Package width	193 mm
Package height	22.5 mm
Internal	No
Host interface	USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)	1920 x 1080 pixels
Plug and Play	Yes
Capturing from	Digital camera, Game console, PC
Product colour	Black
Compatible products	Available USB-C® port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 (USB™ 3.2 is recommended).
Housing material	Plastic
High Dynamic Range (HDR) supported	No
Cable length	0.3 m
Warranty period	2 year(s)
Video
Analog signal format system	Not supported
Supported resolutions	HDMI™ In: 3840 x 2160 USB-C® display: 3840 x 2160 Capture/Record: 1920 x 1080
Maximum refresh rate	30 Hz
Ports & interfaces
HDMI in	1
Number of HDMI outputs	1
Headphone outputs	1
HDMI ports quantity	2
High Dynamic Range (HDR) supported	No
USB ports quantity	2
USB version	3.2 Gen 1 (3.1 Gen 1)
USB port	Yes
USB connector type	USB Type-A
Power
Power supply type	USB
Input current	3 A
Input voltage	20 V
Output voltage	20 V
Output current	3 A
Software
Mac compatibility	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Android
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 85%
Weight & dimensions
Width	50.5 mm
Depth	96.5 mm
Height	15 mm
Weight	69 g
Packaging data
Package type	Box
Package width	193 mm
Package height	22.5 mm
Package weight	148.2 g
Package depth	125 mm
Packaging content
Quick installation guide	Yes
Quantity	1
Manual	Yes
Logistics data
Country of origin	Taiwan
