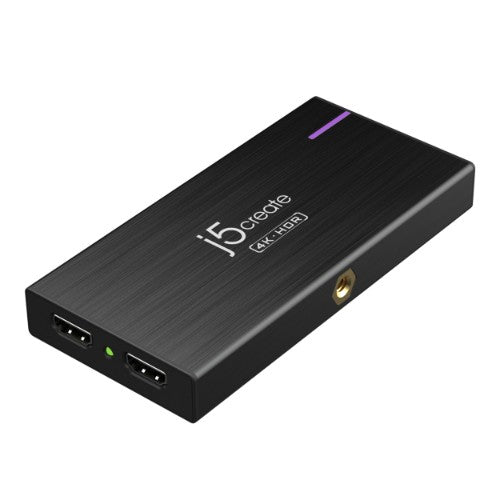

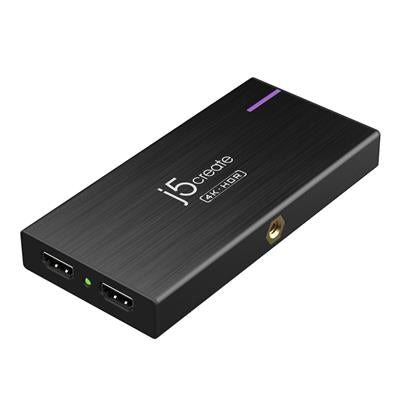

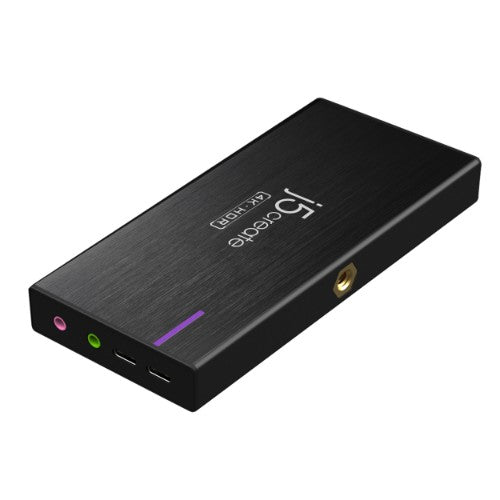

j5create JVA14-N 4K Game Capture Station

j5create JVA14 4K Game Capture Station, Black

Key Features

• Uncompressed 4K@30 Capture + 4K@60 Loop Out
• 4K60 pass-through support (Uncompressed)
• Power Only: Orange
• No driver installation required
• HDR Passthrough: Supports resolutions up to 4K @ 60 Hz, 1440p @ 144 Hz, and 1080p @ 240 Hz
• Ultra-low latency stream with high-performance USB-C® 3.2 connection
• "LED indicator to keep track of USB™ speeds and compression rates
• USB™ 3.0 connection: Purple (Uncompressed)
• USB™ 2.0 connection: Blue (Uncompressed)"

Description

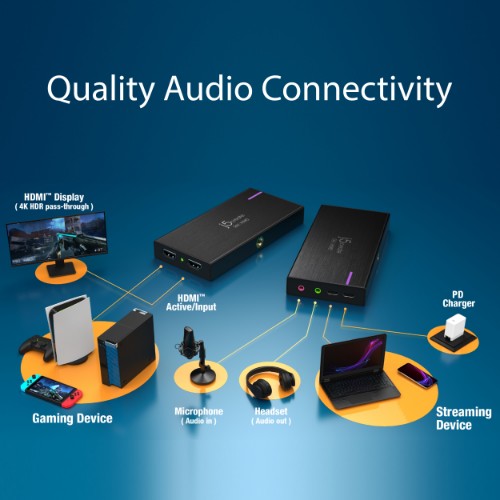

The JVA14 4K Game Capture Station is a capture device designed to stream and record your gameplay. It supports 4K @ 30 FPS video capture with 4K @ 60 FPS passthrough for consoles capable of 4K resolution. It has a 3.5 mm Audio In port and Mic In port allowing a headset to be connected for live commentary streaming on PlayStation™ 4 / 5, Xbox™ Series X / S, Xbox™ One X / S. It is fully compatible with OBS™ and other video streaming software, making it perfect for live streaming. The JVA14 is plug-and-play and compatible with macOS® and Windows® laptops and desktops.

Specifications

Performance
Country of origin	Taiwan
Memory card slot(s)	No
Internal	No
Host interface	USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)	3840 x 2160 pixels
Plug and Play	Yes
LED indicators	Power, USB
Capturing from	Digital camera, Game console, PC
Product colour	Black
Compatible products	Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)
Housing material	Aluminium
High Dynamic Range (HDR) supported	Yes
Cable length	1 m
Technical details
Country of origin	Taiwan
Package type	Box
Memory card slot(s)	No
Package width	155 mm
Package height	70 mm
Internal	No
Host interface	USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)	3840 x 2160 pixels
Plug and Play	Yes
Capturing from	Digital camera, Game console, PC
Product colour	Black
Compatible products	Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)
Housing material	Aluminium
High Dynamic Range (HDR) supported	Yes
Cable length	1 m
Warranty period	2 year(s)
Video
Analog signal format system	Not supported
Supported video modes	1080p, 1440p, 2160p
Supported resolutions	Maximum Capture Refresh Rate: 4K30 FPS, 2K60 FPS, 1080p120 FPS Maximum Passthrough Refresh Rate: 4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR Maximum Capture Capability: USB™ 3.0: 3840 x 2160@ 30 USB™ 2.0:1280 x720 @ 30

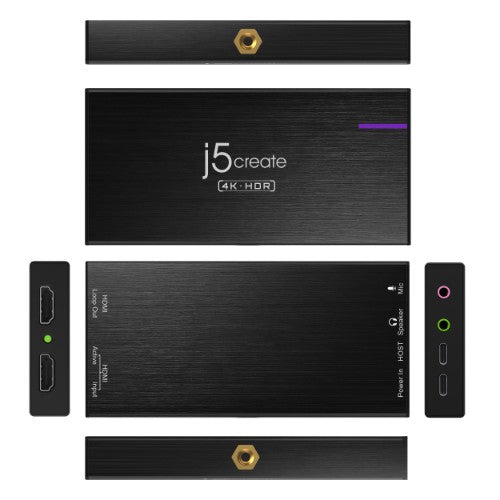

Ports & interfaces
HDMI in	1
Number of HDMI outputs	1
Headphone outputs	1
HDMI ports quantity	2
High Dynamic Range (HDR) supported	Yes
USB ports quantity	1
USB version	3.2 Gen 1 (3.1 Gen 1)
USB port	Yes
USB connector type	USB Type-C
Power
Power supply type	USB
Software
Mac compatibility	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Android
System requirements
Minimum RAM	8000 MB
Minimum processor	CPU: Intel®Core™ i7 6700HQ& above. GPU: NVIDA®GTX960M & above
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 85%
Indication
LED indicators	Power, USB
Weight & dimensions
Width	134.6 mm
Depth	18.4 mm
Height	63.7 mm
Weight	142.5 g
Packaging data
Package type	Box
Package width	155 mm
Package height	70 mm
Package weight	371.5 g
Package depth	75 mm
Packaging content
Quick installation guide	Yes
Quantity	1
Cables included	HDMI, USB Type-C to USB Type-A, USB Type-C to USB Type-C
Logistics data
Country of origin	Taiwan
