StarTech.com 2 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub

StarTech.com DVI KVM Switch with Audio & USB 2.0 Hub – 2-Port USB KVM Switch - 1920 x 1200 - Dual Monitor KVM Switch (SV231DD2DUA)

Description

Share a keyboard, mouse and dual DVI displays/monitors between 2 multimedia computers
The SV231DD2DUA 2-port Dual DVI USB KVM Switch allows two PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Take full advantage of Dual head video cards by switching both machines across two high resolution DVI monitors
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Specifications

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Headphone outputs	4
Performance
Maximum resolution	2048 x 1536 pixels
Number of users	1 user(s)
Technical details
Product colour	Black
Number of users	1 user(s)
Design
Product colour	Black
Certification	RoHS
Video
Maximum resolution	2048 x 1536 pixels
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	90 - 90%
Weight & dimensions
Weight	750 g
Package width	292 mm
Package depth	196 mm
Package height	72 mm
Package weight	1.26 kg
Packaging data
Package width	292 mm
Package depth	196 mm
Package height	72 mm
Package weight	1.26 kg
Certificates
Certification	RoHS
Other features
Connectivity technology	Wired
Power supply type	115 AC
Power requirements	9 V, 1.7 A
Ports quantity	2
Dimensions (WxDxH)	160 x 100 x 57 mm
Compatible operating systems	Windows 98e/SE/ME/2000/XP/Vista, Linux, Mac OS

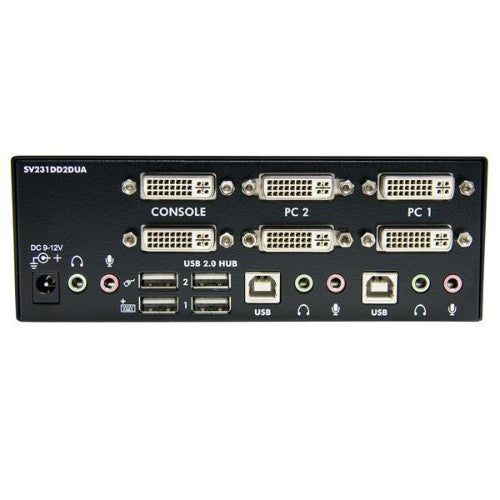

I/O ports	6x 24 pin DVI-I F 4x USB A F 2x USB B F
Logistics data
Harmonized System (HS) code	85176200
