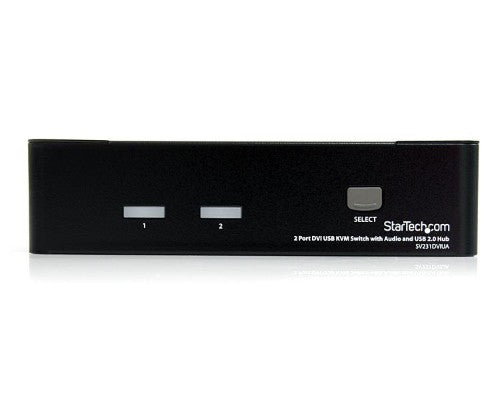

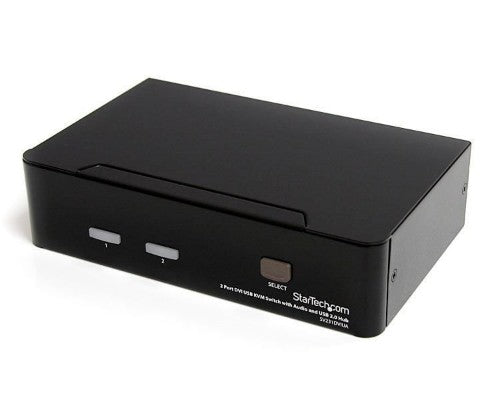

StarTech.com 2 Port DVI USB KVM Switch with Audio and USB 2.0 Hub

StarTech.com 2 Port DVI KVM Switch - USB DVI - Hot-key & Audio Support - 1920x1200 KVM Switch - KVM Video Switch (SV231DVIUA)

Key Features

• Built-in USB 2.0 hub_x000D_
• Hot-key and front-panel push buttons for easy computer selection_x000D_
• USB keyboard and mouse console connections_x000D_
• Supports resolutions up to 1920x1200_x000D_
• No software or drivers required_x000D_
• Stereo audio and microphone support_x000D_

Description

Share keyboard, mouse, speakers and a DVI display between two multimedia computers

The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.

Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.

The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.

This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.

The StarTech.com Advantage

- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- High resolution support (1920x1200) offers crystal clear video clarity even on large displays
- Absolutely no software or drivers required, providing a completely OS independent KVM solution

Specifications

Ports & interfaces
Console USB ports quantity	4

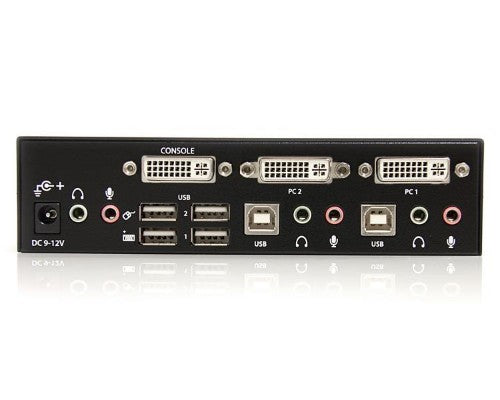

Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
Number of microphone inputs	3
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Audio connections	Yes
Headphone outputs	3
DC-in jack	Yes
Performance
Daisy chain	No
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Number of users	1 user(s)
Technical details
Product colour	Black
Rack mounting	No
Number of users	1 user(s)
LED indicators	Yes
Compliance certificates	CE, RoHS
Design
Mean time between failures (MTBF)	126397 h
Product colour	Black
Rack mounting	No
LED indicators	Yes
Display
Built-in display	No
Power
Input current	0.8 A
Output current	1.5 A
Power plug type	Type M
Compatible power plug types	EU, UK, US
Output voltage	12 V
Power consumption (typical)	18 W
Input voltage	100 - 240 V
Video
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Sustainability
Compliance certificates	CE, RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	199 mm
Depth	160 mm
Height	40 mm
Weight	650 g
Package width	242 mm
Package depth	187 mm
Package height	91 mm
Package weight	1.1 kg
Packaging data
Package width	242 mm
Package depth	187 mm
Package height	91 mm
Package weight	1.1 kg
Packaging content
Rubber feet	Yes
Manual	Yes
Logistics data
Master (outer) case width	314 mm
Master (outer) case length	399 mm
Master (outer) case height	260 mm
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85176200
