StarTech.com 2 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dell HP Apple Lenovo - TAA Compliant

StarTech.com 2 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dell HP Apple Lenovo - TAA Compliant (SV231DPU34K)

Description

KVM with USB | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4Kif you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

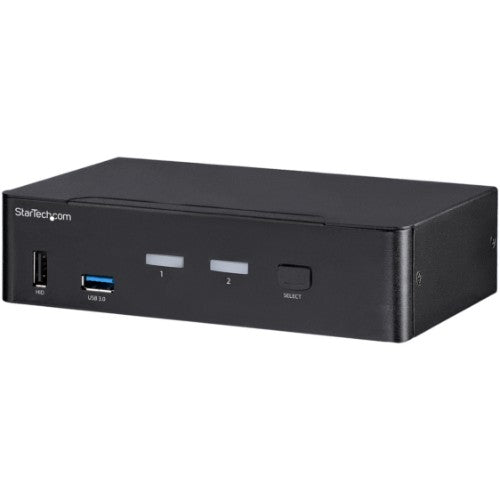

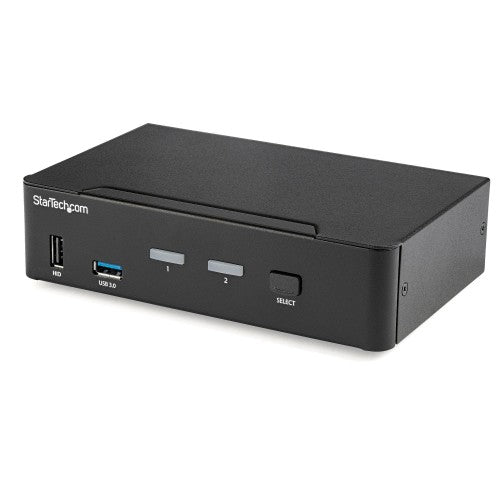

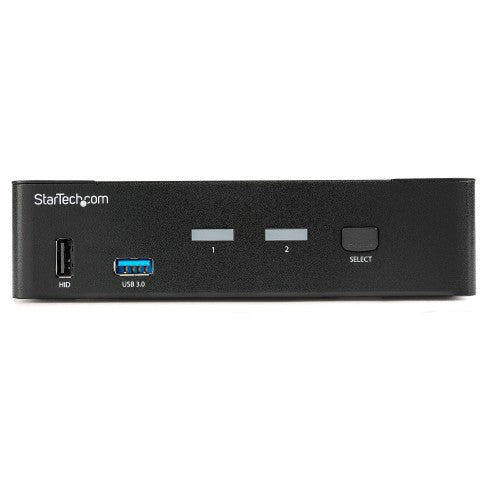

The front-panel push buttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

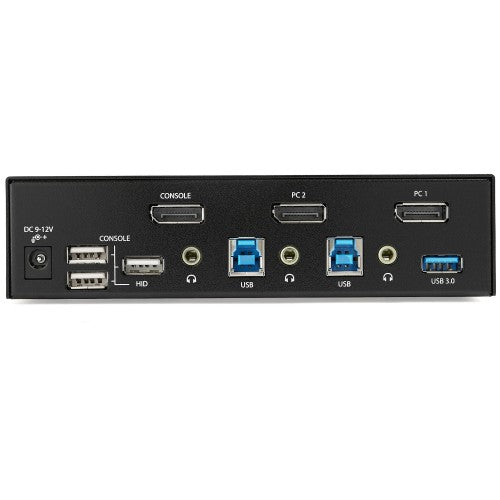

Ports & interfaces
Console USB ports quantity	6
Console ports	3.5mm headphone, DisplayPort, USB A
USB connector type	USB Type-A, USB Type-B
DisplayPorts quantity	3
DisplayPort version	1.2
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	3
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
HDCP	Yes
Performance
Daisy chain	No
HDCP	Yes
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Number of users	1 user(s)
Audio channels	2.0
Technical details
Product colour	Black
On Screen Display (OSD)	No
Number of users	1 user(s)
LED indicators	Yes
Hot keys	Yes
IP control	No
Compliance certificates	RoHS
Design
Mean time between failures (MTBF)	60000 h
Product colour	Black
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, TAA, REACH
Housing material	Steel
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Input current	0.6 A
Output current	1.5 A
Power plug type	Type M
Compatible power plug types	AU, EU, JP, UK, US
Output voltage	12 V
Power consumption (typical)	18 W
External power adapter	Yes
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions

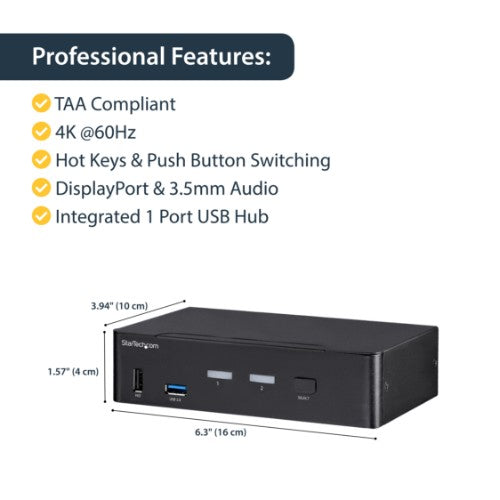

Width	160 mm
Depth	100 mm
Height	40 mm
Weight	1.1 kg
Package width	189 mm
Package depth	238 mm
Package height	91 mm
Packaging data
Package width	189 mm
Package depth	238 mm
Package height	91 mm

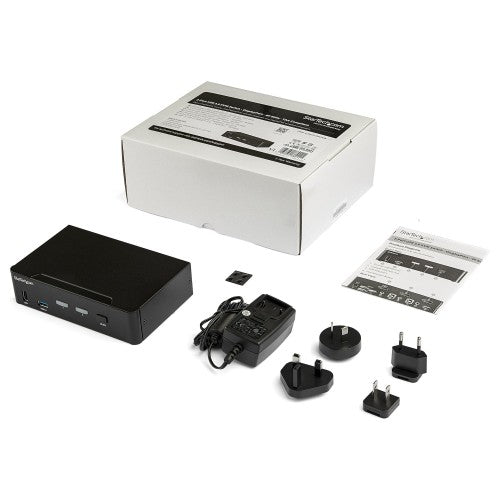

Packaging content
Rubber feet	Yes
Quick installation guide	Yes
AC adapter included	Yes
Certificates
Certification	CE, FCC, TAA, REACH
Other features
IP control	No
Hot keys	Yes
Logistics data
Master (outer) case width	318 mm
Master (outer) case length	389 mm
Master (outer) case height	285 mm
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85176200
