StarTech.com 2 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) and 4x USB 2.0 HID, Audio - Hotkey Switching - TAA

StarTech.com 2 Port HDMI KVM Switch - Single Monitor 4K 60Hz Ultra HD HDR - Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) and 4x USB 2.0 HID, Audio - Hotkey Switching - TAA (SV231HU34K6)

Description

KVM with USB | TAA Compliant | USB 3.0 Hub | HDMI 2.0 | Digital & Analog Audio

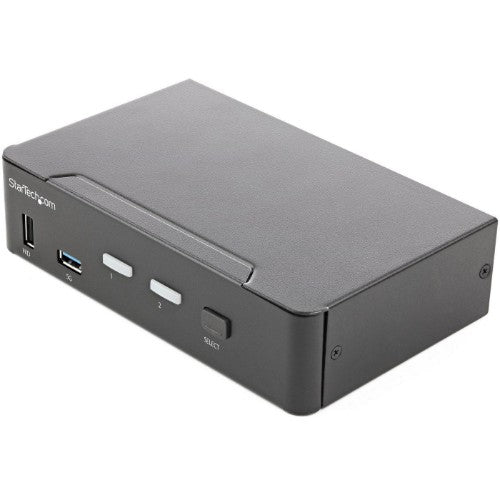

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The HDMI KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution. Includes EDID and HDCP signal emulation so monitors always remain synced for faster switching times, and desktop settings are maintained to avoid disrupting your workflow.

With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the HDMI 2.0 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this HDMI KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

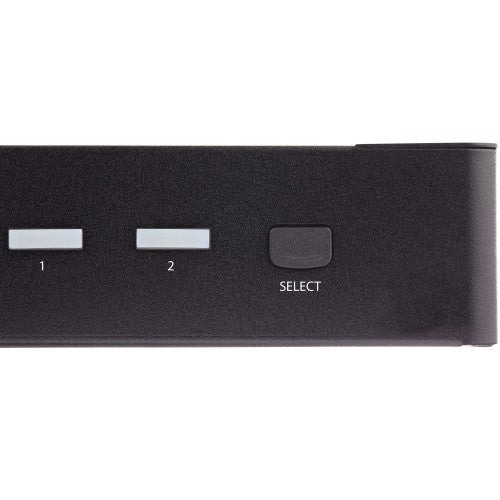

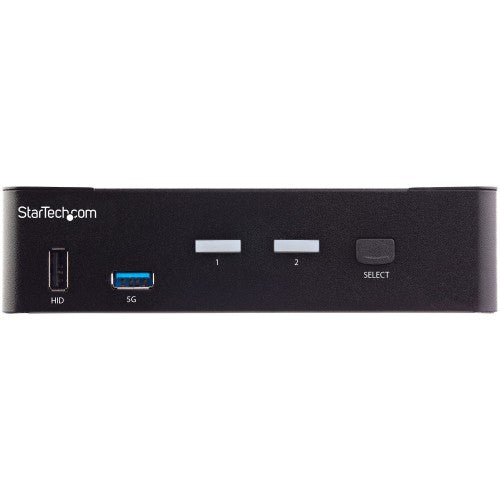

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors.

This 2-port HDMI KVM switch is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

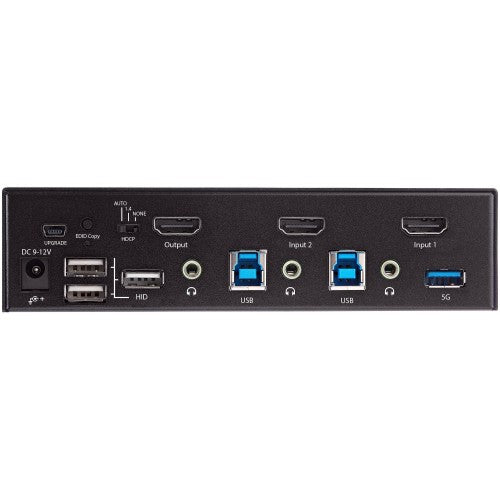

Ports & interfaces
Console USB ports quantity	4
Console ports	3.5mm headphone, HDMI, USB A
HDMI version	2.0
Number of computers controlled	1
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
Headphone outputs	3
HDMI ports quantity	3
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
HDCP	Yes
Performance
Daisy chain	No
Chipset	Genesys Logic - GL3523
HDCP	Yes
Data transfer rate (max)	5 Gbit/s
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Number of users	1 user(s)
Audio channels	7.1
Technical details
Product colour	Black
Rack mounting	Yes
Push button	Yes
On Screen Display (OSD)	No
Number of users	1 user(s)
LED indicators	Yes
Hot keys	Yes
IP control	No
USB hub	Yes
Design
Mean time between failures (MTBF)	143000 h
Product colour	Black
Rack mounting	Yes
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Certification	CE, RoHS, FCC
Housing material	Steel
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Input current	1 A
Output current	3 A
Power plug type	Type M
Compatible power plug types	EU, JP, UK, US
Output voltage	12 V
Power consumption (typical)	36 W
External power adapter	Yes
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	100 mm
Depth	160 mm
Height	40 mm
Weight	640 g
Package width	238 mm
Package depth	180 mm
Package height	91 mm
Package weight	147 g
Packaging data
Package width	238 mm
Package depth	180 mm
Package height	91 mm
Package weight	147 g
Packaging content
AC adapter included	Yes
Certificates
Certification	CE, RoHS, FCC
Other features
IP control	No
Push button	Yes
Hot keys	Yes
Logistics data
Master (outer) case width	397 mm
Master (outer) case length	265 mm
Master (outer) case height	305 mm
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85176200
