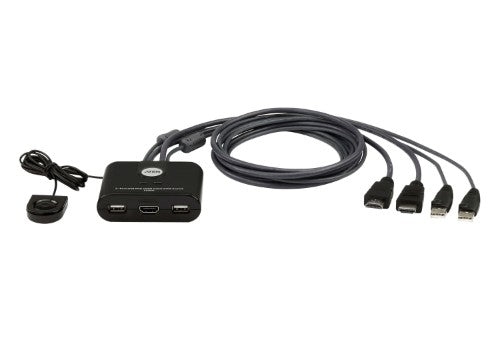

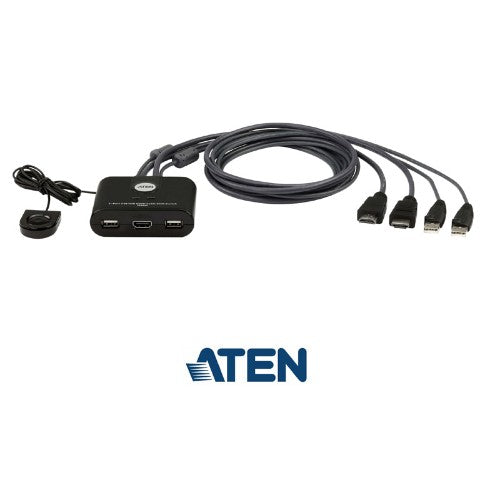

ATEN CS22HF KVM switch Black

2-Port USB FHD HDMI Cable KVM Switch

Key Features

• One KVM console controls two computers with USB and HDMI interface
• Superior video quality – up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz
• Computer selection via Remote Port Selector
• HDMI compliant; HDCP 1.4 compliant

Description

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22HF by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22HF helps create an organized desktop with reduced cable clutter, and brings in FHD viewing quality to lift up work performance.

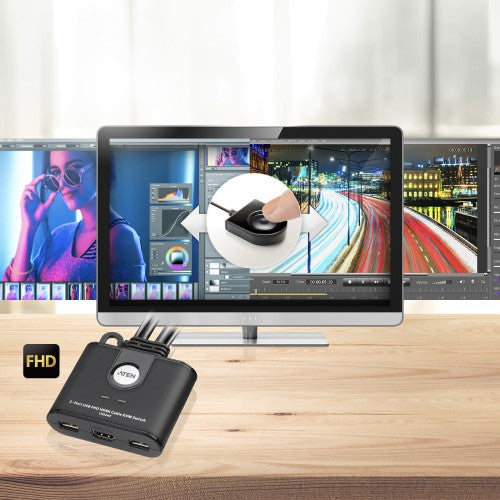

Superior FHD Visual Clarity

The CS22HF empowers your desktop operations with remarkable FHD video quality to expedite visual-intensive workflow.

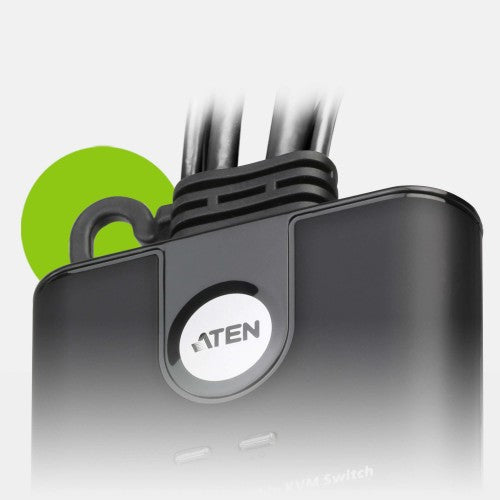

Space Efficient Desktop Setup

The compact, easy-hook design allows expanding functionality while keeping your desktop in an orderly fashion for improved productivity.

Smooth Cross-Platform Integration

The CS22HF enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

Flexible USB Peripheral Sharing

The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.

Plug in. Power on

The CS22HF supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

Applications

The CS22HF Cable KVM Switch allows for an ideal desktop setup in working scenarios including office, media design, network separation and work from home.

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	HDMI, USB A
USB connector type	USB Type-A
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	2
DC-in jack	Yes
USB 2.0 Type-A hub ports quantity	2
Console HDMI ports quantity	1
Cable length	1.2 m
HDCP	Yes
Performance
HDCP	Yes
HD type	Full HD
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Technical details
Product colour	Black
Rack mounting	No
LED indicators	Yes
Design
Remote switch cable length	1.8 m
Product colour	Black
Cable length	1.2 m
Rack mounting	No
LED indicators	Yes
Housing material	Plastic
Display
Built-in display	No
Power
Power consumption (typical)	1.5 W
Input voltage	5 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Video
HD type	Full HD
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	66.5 mm
Depth	82.4 mm
Height	25.2 mm
Weight	260 g
