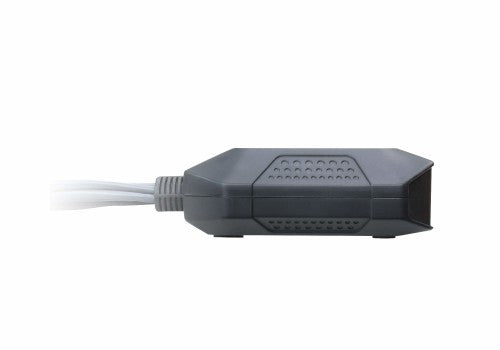

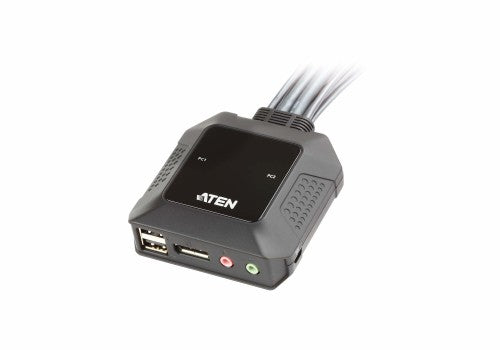

ATEN CS22DP KVM switch Black

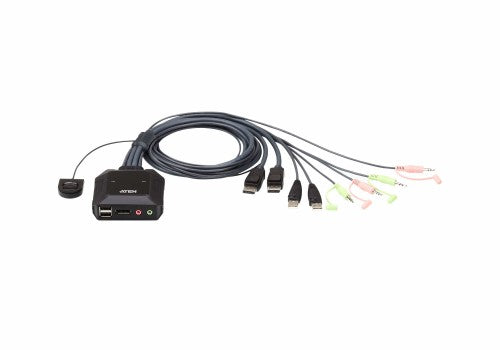

2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector

Key Features

• One KVM console controls two USB DisplayPort computers
• Superior video quality – up to 4096 x 2160 @ 30 Hz
• Multiplatform support – Windows, Mac, and Linux
• Bus-powered design

Description

Having two computers running different projects at the same time can be a time saver, but having a KVM console set up to switch between computers via a pushbutton over one shared screen makes multitasking even more productive. Allow the CS22DP compact cable KVM switch to work its magic by de-cluttering your desktop workspace with a neat and space-efficient new look, and further enrich your operations with superb 4K audiovisual quality, making your desktop workflows more enjoyable.

Superior AV Performance in Vivid 4K

The CS22DP empowers your desktop operations with 4K audiovisual enhancement by presenting visual content in outstanding precision.

Smooth Cross-Platform Integration

The CS22DP enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console via one-button switching with the remote port selector.

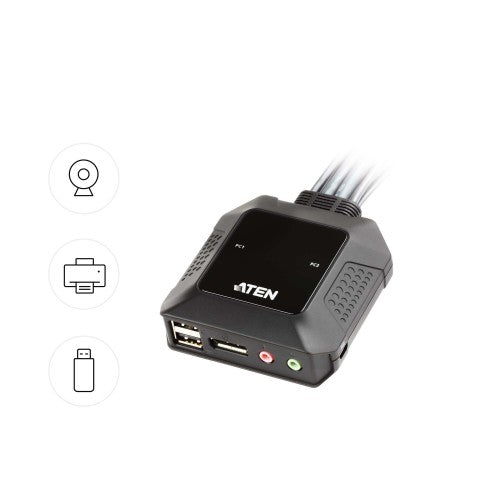

Flexible USB Peripheral Sharing

The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

Plug in. Power on

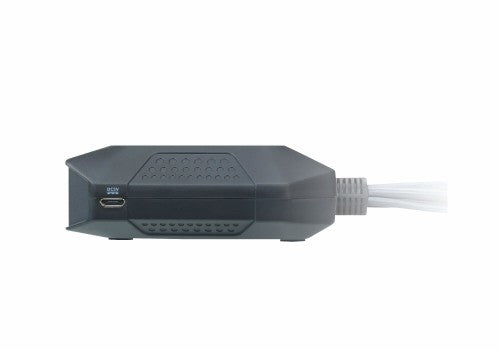

The CS22DP supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

Applications

The CS22DP Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.

Specifications

Ports & interfaces
Console USB ports quantity	2

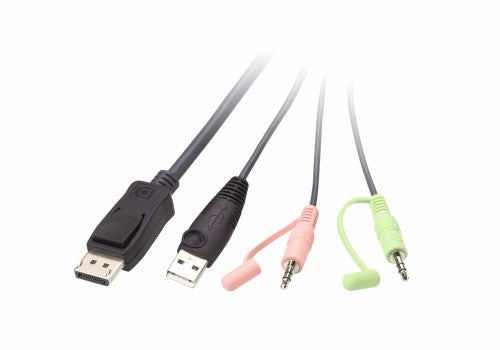

Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB connector type	Micro-USB B, USB Type-A
Number of microphone inputs	1
DisplayPorts quantity	2
DisplayPort version	1.1
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	1
USB 2.0 Type-A hub ports quantity	2
Console DisplayPorts ports quantity	1
Cable length	1.2 m
HDCP	Yes
Network
Ethernet LAN	No
Performance
HDCP	Yes
HD type	4K Ultra HD
Video bandwidth	30 Hz
Hot-Plug support	Yes
Maximum resolution	4096 x 2160 pixels
Technical details
Product colour	Black
Rack mounting	No
Hot-Plug support	Yes
LED indicators	Yes
Compliance certificates	RoHS
Design
Wired remote switch	Yes
Remote switch cable length	1.8 m
Product colour	Black
Cable length	1.2 m
Rack mounting	No
LED indicators	Yes
Housing material	Plastic
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	1.38 W
Input voltage	5 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Video
HD type	4K Ultra HD
Video bandwidth	30 Hz
Maximum resolution	4096 x 2160 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	84.2 mm
Depth	83.4 mm
Height	30.4 mm
Weight	350 g
Packaging content
Manual	Yes
