ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector

2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector

Key Features

• One USB keyboard, mouse and one HDMI monitor control two HDMI computers
• Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)

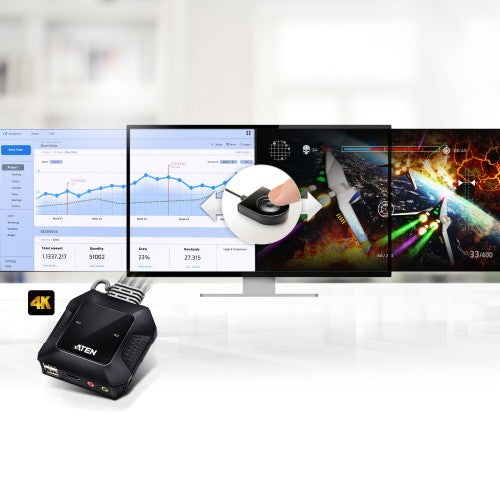

• Computer selection via remote port selector
• HDMI compliant; HDCP 2.2 compliant
• Supports USB hot-plugging
• The console USB ports can be used for USB peripheral sharing1
• Multiplatform support – Windows, Mac and Linux
• Hook design for space-saving and organized workstation
• Plug and play
• Bus-powered – no external power adapter required

Description

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.

Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.

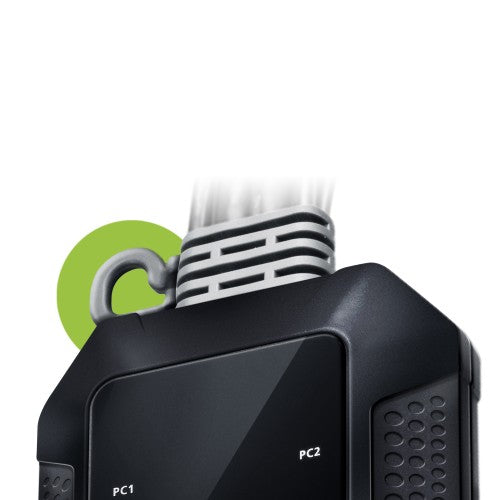

Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.

Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

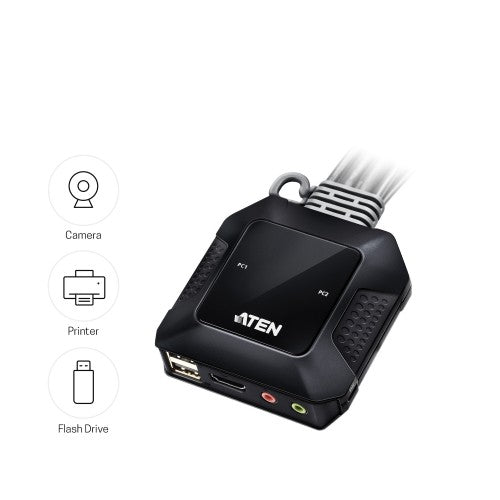

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

Specifications

Ports & interfaces
Console USB ports quantity	2

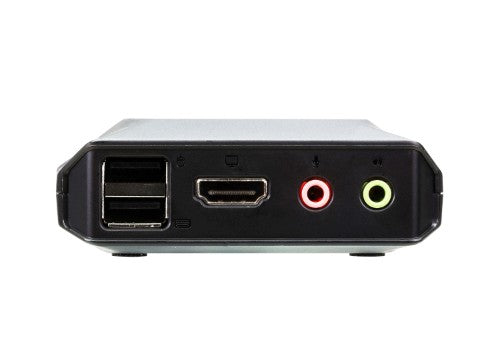

Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
USB connector type	USB Type-A
Number of microphone inputs	3
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
Headphone outputs	3
HDMI ports quantity	3
Console HDMI ports quantity	1
Cable length	1.2 m
HDCP	Yes
Performance
HDCP	Yes
HD type	4K Ultra HD
Video bandwidth	60 Hz
Hot-Plug support	Yes
Plug and Play	Yes
Maximum resolution	4096 x 2160 pixels
HDCP version	2.2
Technical details
Product colour	Black
Rack mounting	No
Hot-Plug support	Yes
Plug and Play	Yes
LED indicators	Yes
Design
Wired remote switch	Yes
Remote switch cable length	1.8 m
Product colour	Black
Cable length	1.2 m
Rack mounting	No
LED indicators	Yes
Housing material	Plastic
Display
Built-in display	No
Power
Power source	USB
Power consumption (typical)	3.47 W
Input voltage	5 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	4096 x 2160 pixels
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	84.2 mm
Depth	83.4 mm
Height	30.4 mm
Weight	340 g
Packaging content
Manual	Yes
