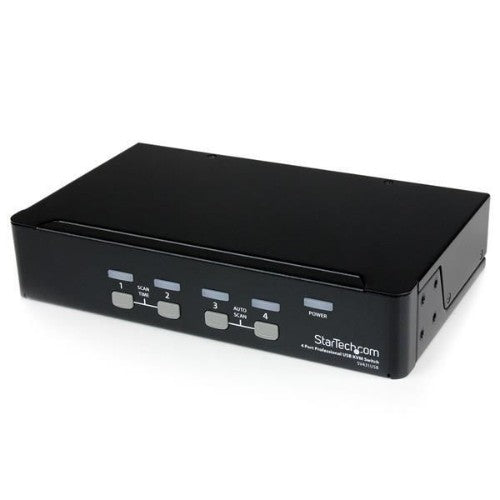

StarTech.com 4 Port Professional VGA USB KVM Switch with Hub

StarTech.com 4 Port Professional VGA USB KVM Switch with Hub

Description

Control up to 4 PC or Mac computers from a single keyboard, mouse and monitor and share any USB device between all connected computers

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

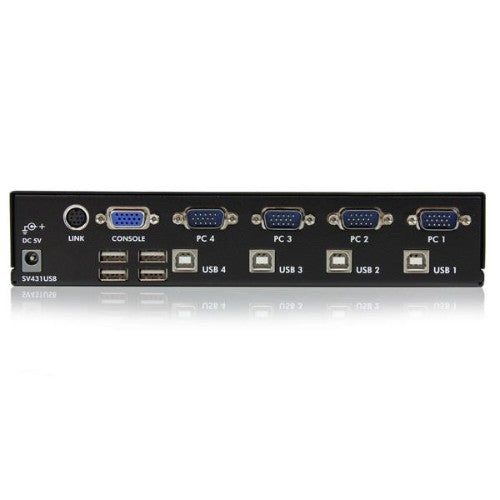

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

Backed by a StarTech.com 3 year warranty and free lifetime technical support.

The StarTech.com Advantage

- Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Specifications

Ports & interfaces
Console USB ports quantity	4
Console ports	USB A, VGA (D-Sub)
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Audio connections	No
DC-in jack	Yes
Performance
Daisy chain	No
Maximum resolution	1920 x 1440 pixels
Scan interval	3,8,15,30 s
Number of users	1 user(s)
Maximum cable length	5 m
Technical details
Product colour	Black
Rack mounting	Yes
Scan interval	3,8,15,30 s
On Screen Display (OSD)	No
Number of users	1 user(s)
Hot keys	No
IP control	No
Compliance certificates	RoHS
Design
Mean time between failures (MTBF)	82506 h
Maximum cable length	5 m
Product colour	Black
Rack mounting	Yes
Hot keys	No
Certification	CE, FCC, REACH, TAA, cUR
Rack capacity	1U
Housing material	Steel
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Input current	0.4 A
Output current	2 A
Power plug type	Type N
Output voltage	5 V
Input voltage	110-240 V
Video
Maximum resolution	1920 x 1440 pixels
Sustainability
Compliance certificates	RoHS
Weight & dimensions
Width	130 mm
Depth	220 mm
Height	44 mm
Weight	988 g
Package width	196 mm
Package depth	295 mm
Package height	72 mm
Package weight	1.3 kg
Packaging data
Package width	196 mm
Package depth	295 mm
Package height	72 mm
Package weight	1.3 kg
Packaging content
Rubber feet	Yes
Manual	Yes
Certificates
Certification	CE, FCC, REACH, TAA, cUR
Other features
IP control	No
Hot keys	No
Logistics data
Harmonized System (HS) code	85176200
