Fractal Design Meshify C Midi Tower Black

ATX/mATX/ITX, 3.5"/2.5" x 2, 2.5" x 3, USB 3.0 x 3

Key Features

• Streamlined high-airflow design
• The performance and capacity of a larger tower in a remarkably compact mid-tower size

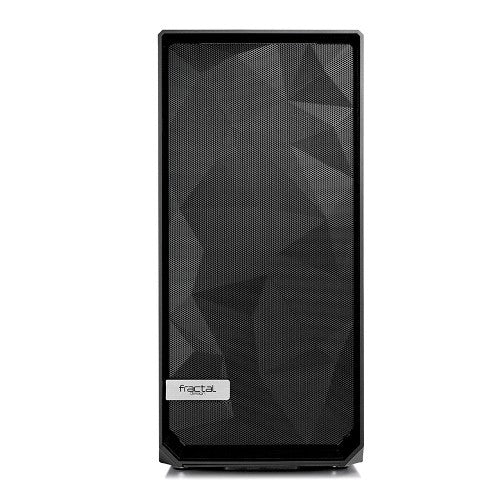

• Newly designed angular mesh front panel maximizes air intake
• Distinctive new styling with stealthy black-on-black aesthetic
• Flexible storage options with room for up to 5 drives
• Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
• Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
• Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
• Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
• Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
• Up to 35 mm of space behind motherboard plate with grommetted pass-throughs for clean cable routing

Reasons To Buy

Easy-to-clean-filters

Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access

Stealthy design

Distinctive new styling with stealthy black-on-black aesthetic

Three SSD positions

Flexible storage options with room for up to five drives in total and three SSD positions

Description

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C carves a space uniquely its own as a new force in high-airflow design.;
An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C has a remarkably compact footprint with the high-end component support of a larger tower, and with seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
When performance is top priority and compromise is not an option, Meshify has you covered in style.

Specifications

Design
Volume	36.5 L
Anti-dust filter	Yes
Number of external 5.25" bays	0
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	3
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, ITX, micro ATX
Side window	No
Illumination	No
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	17 cm
Maximum graphics card length	31.5 cm
Maximum PSU length	17.5 cm
Type	PC
Form factor	Midi Tower
Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	3
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, ITX, micro ATX
Supported HDD sizes	2.5,3.5"
Side window	No
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	17 cm
Maximum graphics card length	31.5 cm
Maximum PSU length	17.5 cm
Type	PC
Form factor	Midi Tower
Harmonized System (HS) code	84733080
Indication
Illumination	No
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	0
Cooling
Front radiator installed	No
Front radiator sizes supported	120,140,240,280,360 mm
Rear radiator installed	No
Rear radiator sizes supported	120 mm
Top radiator installed	No
Top radiator sizes supported	120,140 mm
Front fans installed	1x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Number of side fans supported (max)	0
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Storage
Supported HDD sizes	2.5,3.5"
Packaging content
Manual	Yes
Weight & dimensions
Volume	36.5 L
Width	212 mm
Depth	395 mm
Height	440 mm
Weight	6.16 kg
Packaging data
Package width	298 mm
Package height	493 mm
Package depth	542 mm
Package weight	7.52 kg
Manual	Yes
Logistics data
Harmonized System (HS) code	84733080
Other features
Volume	36.5 L
Manual	Yes
Harmonized System (HS) code	84733080
