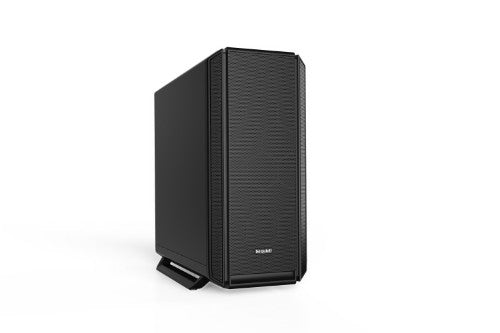

be quiet! Silent Base 802 Black Midi Tower

Midi-Tower, PS/2, E-ATX/ATX/M-ATX/Mini-ITX, 2x USB 3.2 Gen. 1, 1x USB 3.2 Gen. 2 Type C, HD Audio, Steel, ABS, 3x Pure Wings 2 (140mm), Black

Key Features

• Interchangeable top cover and front panel for either maximum airflow or silent operation
• Three Pure Wings 2 140mm fans guarantee a perfect airflow
• Extra thick insulation mats for improved noise reduction
• State-of-the-art I/O-panel with fan controller and USB 3.2 Gen. 2 Type C connector for usage of latest hardware
• Fast and secure detachment of the side panels with push pins
• PSU shroud and smart HDD slot covers provide a neat interior
• Decoupled motherboard tray can be relocated for an inverted layout
• The power supply can be easily installed from the back of the case
• Detachable top bracket allows easy fan and radiator installation
• Generous dimensions for radiators up to 420mm
• Full metal body provides stability and a great haptic

Description

EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE
The be quiet! Silent Base 802 Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.

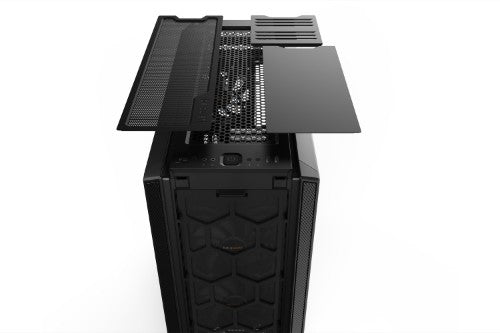

INTERCHANGEABLE TOP COVER
Optimized for air or water cooling
The first of 2 included top covers perfectly rounds off the design of the Silent Base 802 Black and ensures a silent operation. For all who strive for extremely powerful cooling and especially with water-cooled systems, the highly air-permeable top cover is the right choice.

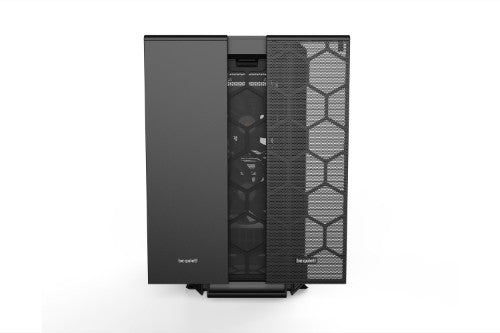

INTERCHANGEABLE FRONTPANEL
Ensures maximum performance or whisper-quiet operation
The airflow front panel provides maximum performance for sophisticated configurations with highest demands for low temperatures. The standard front panel is the perfect choice for silent systems and regular PC configurations. Both panels are included.

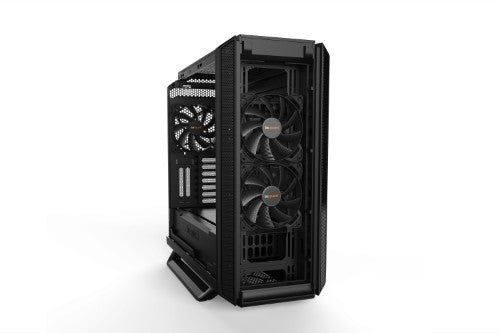

THREE PREINSTALLED
PURE WINGS 2
Whisper-quiet operation
3 preinstalled Pure Wings 2 140mm fans with airflow-optimized fan blades ensure perfect airflow and solid cooling no matter if you chose a high airflow or a silence optimized configuration.

SUPERB NOISE DAMPENING
Extra thick insulation for maximum stability and silence
The front and sides are equipped with extra thick dampening mats of up to 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket, motherboard tray and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.

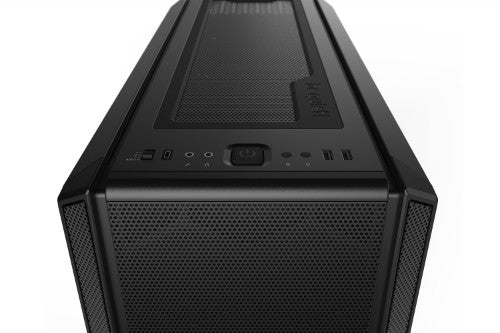

SMART I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of the latest hardware. The integrated 4-step fan controller allows the setting of the speed of up to 6 fans manually or connect all to one PWM signal.

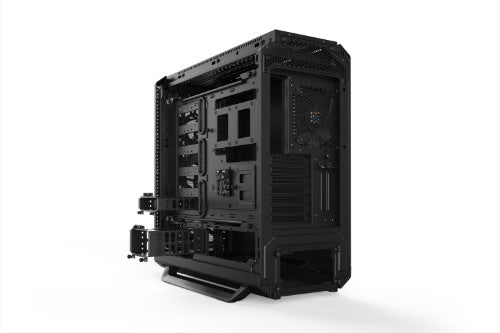

VERSATILE MOTHERBOARD TRAY
Designed to fit individual requirements
The motherboard tray is decoupled and can be installed alongside the left panel in an inverted layout. It is also removable for use as a test bench.

FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm or 420mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	3
Number of 2.5" bays	7
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Side window	No
Product colour	Black
Number of expansion slots	9
Maximum CPU cooler height	18.5 cm
Maximum graphics card length	44.9 cm
Maximum PSU length	28.8 cm
Type	PC
Form factor	Midi Tower
Harmonized System (HS) code	84733080
Material
Material	Acrylonitrile butadiene styrene (ABS), Steel
Ergonomics
Cable management	Yes
On/off button	Yes
Certificates
Certification	CE, RoHS
Design
Anti-dust filter	Yes
Material	Acrylonitrile butadiene styrene (ABS), Steel
Number of 5.25" bays	0
Number of 3.5" bays	3
Number of 2.5" bays	7
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Side window	No
Certification	CE, RoHS
Cable management	Yes
Product colour	Black
Number of expansion slots	9
Maximum CPU cooler height	18.5 cm
Maximum graphics card length	44.9 cm
Maximum PSU length	28.8 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Power supply
Supported power supply form factors	ATX, PS2
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	0
Cooling
Front radiator sizes supported	120,140,240,280,360,420 mm
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,240,360 mm
Front fans installed	2x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Liquid cooling capability	Yes
Storage
Supported HDD sizes	2.5,3.5"
Packaging content
Stand included	Yes
Screws included	Yes

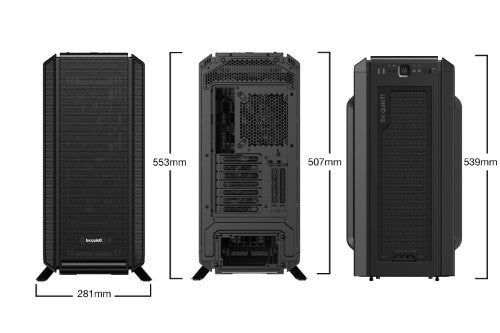

Weight & dimensions
Width	281 mm
Depth	539 mm
Height	553 mm
Weight	12.6 kg
Packaging data
Package width	323 mm
Package height	615 mm
Package depth	651 mm
Package weight	13.3 kg
Logistics data
Harmonized System (HS) code	84733080
Other features
Harmonized System (HS) code	84733080
Stand included	Yes
Screws included	Yes
