Cooler Master HAF 700 EVO Full Tower Grey

556 x 279 x 540mm, Mini-ITX/Micro-ATX/ATX/E-ATX/SSI-CEB/SSI-EEB, 12 x 3.5"/2.5", 12 x 2.5", 1x USB 3.2 Gen2 Type-C, 4x USB 3.2 Gen1, 3.5mm

Description

THE HAF 700 EVO TRULY HAS NO LIMITS
Drawing inspiration from our ever-growing community of enthusiasts, the HAF 700 EVO is capable of housing up to EATX motherboards such as the Dominus Extreme, as well as any sized graphics cards in both horizontal and vertical orientations.

Users can enjoy direct side intake and support for power supplies of up to 200mm, and well as unparalleled number of options for installing disks, pumps and radiators.

MAMMOTH RADIATOR SUPPORT
HAF 700 EVO provides users unparalleled options for out-of-the-box cooling support. Users may pick and choose between installing a selection of radiator sizes in various mounting locations: 480mm (side panel), 360mm (front panel, bottom panel, or up to dual radiators on the top panel), or 240mm (rear panel).

ROTATABLE RADIATOR BRACKET

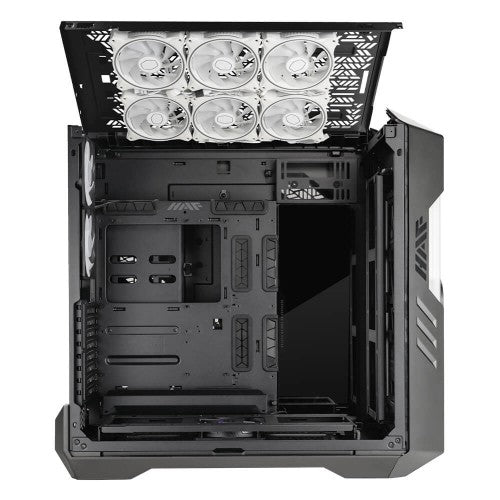

HAF 700 EVO boasts two rotatable fan/radiator brackets. These brackets are fully modular and can be installed in multiple positions for complex setups. Users may choose one of the two to rotate, showcasing their radiator at unique angles.

THE “HAF STANDARD” IN COOLING
From the revamped FineMesh V2 to the exclusive Performance Edition 200mm SickleFlow fans, HAF 700 Evo surely packs a punch. HAF 700 Evo surely also provides unparalleled options for users looking to water-cool their systems with custom solutions.

A DECADE OF HAF DESIGN, REVOLUTIONIZED
The HAF 700 Evo is almost entirely tool-less and you can install almost any component without the need for screwdrivers , including:
– GPUs
– Vertical GPU Holder Kit
– Power Supply
– 3.5″ Drives
– 2.5″ Drives
– HDD cage
– Pumps and Reservoirs
– Internal & External Paneling

IRIS: BUILT IN REAL-STATS MONITOR
Monitor system stats in real time or showcase your personality on Iris, your built-in LCD assistant. Immerse yourself in full range customization of Iris’s display and ARGB Gen2 elements via MasterPlus+, and bring to life vastly diverse setups, unique in aesthetics and function.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	12
Number of 2.5" bays	12
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB
Supported HDD sizes	2.5,3.5"
Product colour	Grey
Number of expansion slots	8
Maximum CPU cooler height	16.6 cm
Maximum graphics card length	49 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Full Tower
Harmonized System (HS) code	84733080
Material
Material	Mesh, Plastic, Steel, Tempered glass
Design
Anti-dust filter	Yes
Material	Mesh, Plastic, Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	12
Number of 2.5" bays	12
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB
Product colour	Grey
Number of expansion slots	8
Maximum CPU cooler height	16.6 cm
Maximum graphics card length	49 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Full Tower
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	0
Cooling
Front radiator sizes supported	360,420 mm
Rear radiator sizes supported	240 mm
Top radiator sizes supported	360,420 mm
Front fans installed	2x 200 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140,200 mm
Number of side fans supported (max)	4
Side fans diameters supported	120,140 mm
Rear fans installed	2x 120 mm
Number of rear fans supported (max)	2
Rear fans diameters supported	120 mm
Number of top fans supported (max)	6
Top fans diameters supported	120,140,200 mm
Bottom fans installed	1x 120 mm
Number of bottom fans supported (max)	3
Bottom fans diameters supported	120,140 mm
Side radiator sizes supported	420,480 mm
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	279 mm
Depth	556 mm
Height	540 mm
Weight	24.3 kg
Packaging data
Accessories included	Universal Graphics Card Holder Kit V2
Package width	399 mm
Package height	725 mm
Package depth	780 mm
Package weight	29 kg
LED controller	Yes
Logistics data
Harmonized System (HS) code	84733080
Other features
Harmonized System (HS) code	84733080
