Antec AX20 Midi Tower Black

Mid-Tower, ATX, Micro-ATX, ITX, Tempered glass, Steel, Plastic, 358 x 207 x 451 mm, 4000 g

Description

Unique Design & Powerful Heat Dissipation
AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.

Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.

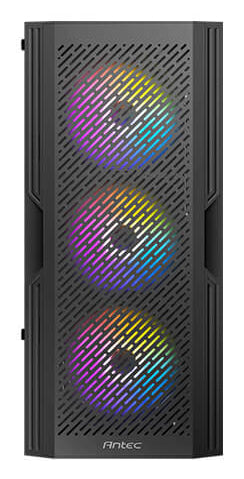

High-Airflow Front Panel
Massive air intake at the front, top, and bottom. Creating multiple airflow paths.

Specifications

Technical details
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	ATX, ITX, micro ATX
Side window	Yes
Reset button	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	15.5 cm
Maximum graphics card length	27 cm
Maximum PSU length	17 cm
Type	PC
Form factor	Midi Tower
Material
Material	Plastic, Steel, Tempered glass
Ergonomics
Reset button	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Plastic, Steel, Tempered glass
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	ATX, ITX, micro ATX
Side window	Yes
Reset button	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	15.5 cm
Maximum graphics card length	27 cm
Maximum PSU length	17 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Power supply
Power supply included	No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	2
Cooling
Front radiator sizes supported	120,140,240,280 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120 mm
Weight & dimensions
Width	207 mm
Depth	358 mm
Height	451 mm
Weight	4 kg
Packaging data
Package weight	4.71 kg
