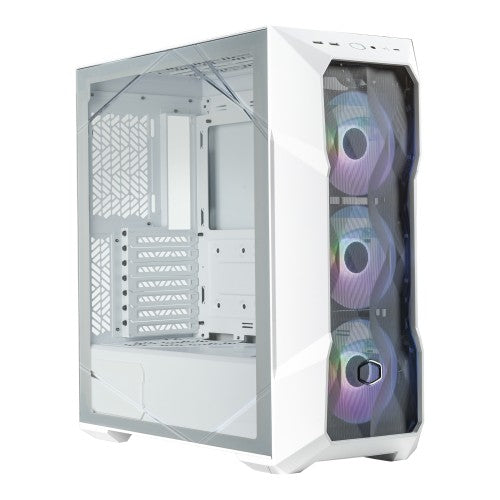

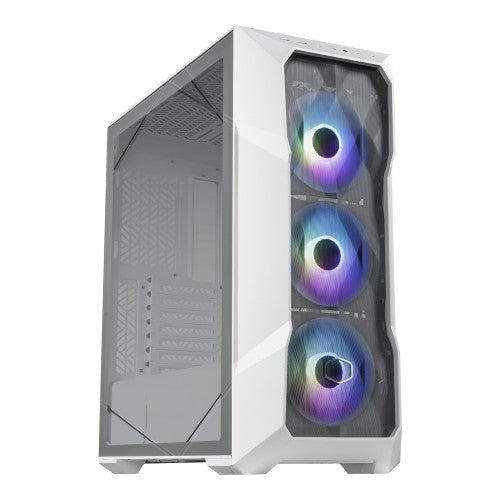

Cooler Master MasterBox TD500 Mesh V2 Midi Tower White

Mini ITX/Micro ATX/ATX/SSI CEB/E-ATX, 50L, 2 x 3.5", 3 x 2.5", 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C, 3.5mm, 3 x 120mm, 7.7 kg

Key Features

• Polygonal FineMesh Front Panel
• Three CF120 ARGB Fans Included
• USB 3.2 Gen 2 Type C Support
• Tool-Free Crystalline TG Side Panel
• PSU Shroud With Removable Cover
• ARGB Controller Included
• Removable Top Panel
• Removable HDD cage

Description

Exquisitely Ruthless
MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.

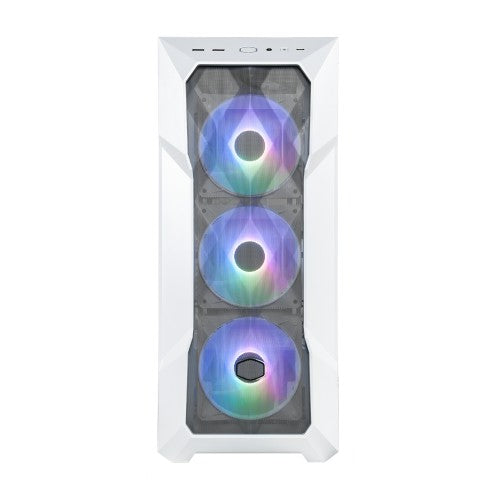

FineMesh Performance Front Panel
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.

Available in both Black & White colorations
MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best matches your setup!

Three CF120 ARGB Fans Included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

USB 3.2 Gen 2 Type C Support
USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.

ARGB/FAN HUB Included
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

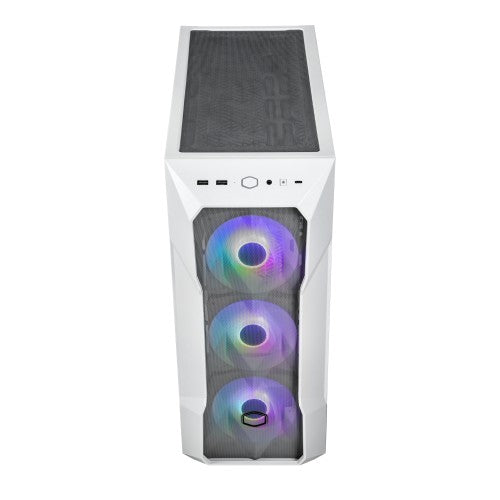

Removable Top Panel
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.

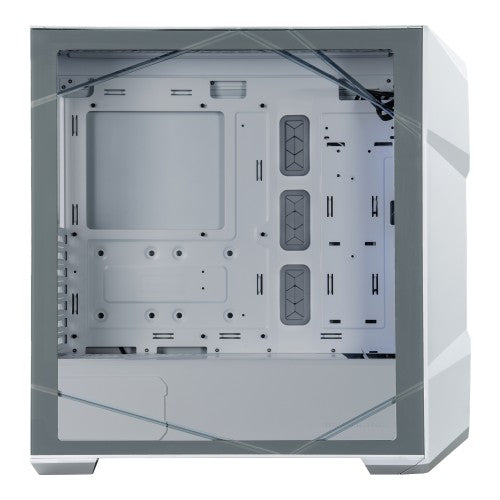

Tool-Free Crystalline TG Side Panel
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.

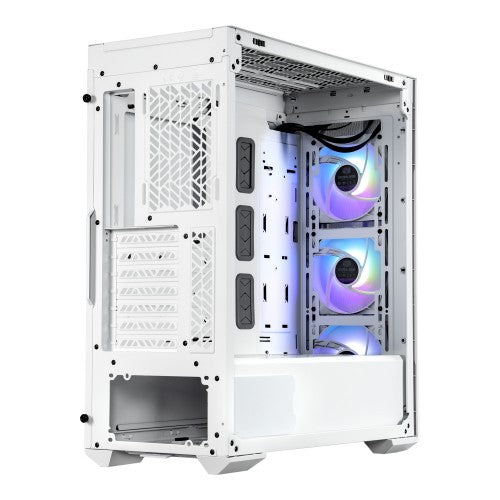

Versatile Cooling Options
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

PSU Shroud With Removable Cover
MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

Hardware Compatibility
MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.

Specifications

Design
Volume	50 L
Anti-dust filter	Yes
Material	Mesh, Tempered glass, Plastic, Steel
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	ATX, micro ATX, SSI CEB, Mini-ITX, EATX
Side window	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Product colour	White
Number of expansion slots	7
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
Technical details
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	ATX, micro ATX, SSI CEB, Mini-ITX, EATX
Supported HDD sizes	2.5,3.5"
Side window	Yes
Product colour	White
Number of expansion slots	7
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
Material
Material	Mesh, Tempered glass, Plastic, Steel
Indication
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Ergonomics
Cable management	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
Cooling
Front radiator sizes supported	140,240,360,120,280 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,240,360,140,280 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	140,120 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Volume	50 L
Width	210 mm
Depth	499 mm
Height	500 mm
Weight	7.7 kg
Packaging data
Package width	290 mm
Package height	584 mm
Package depth	558 mm
Package weight	9.2 kg
Other features
Volume	50 L
