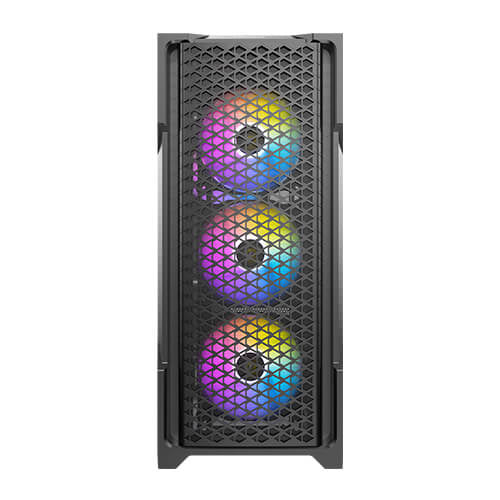

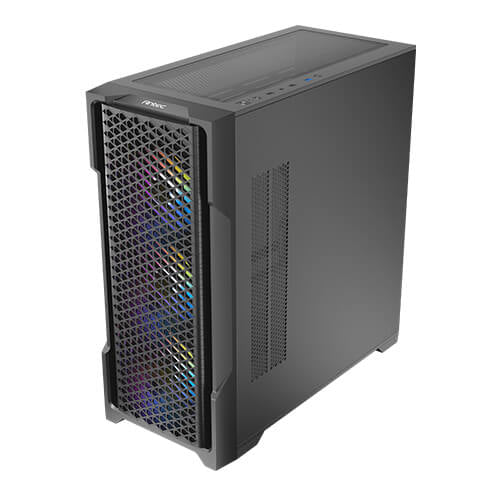

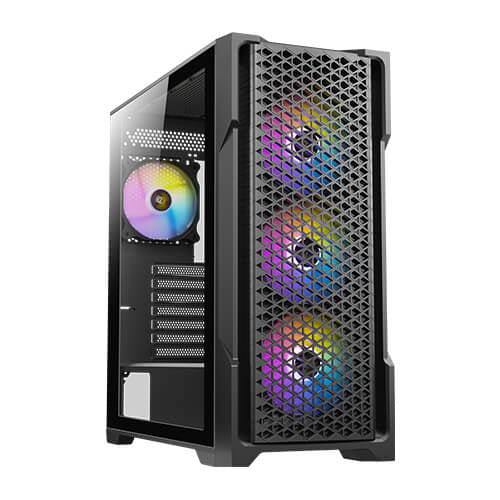

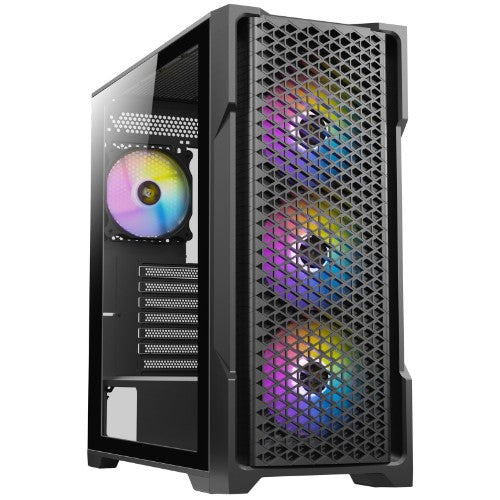

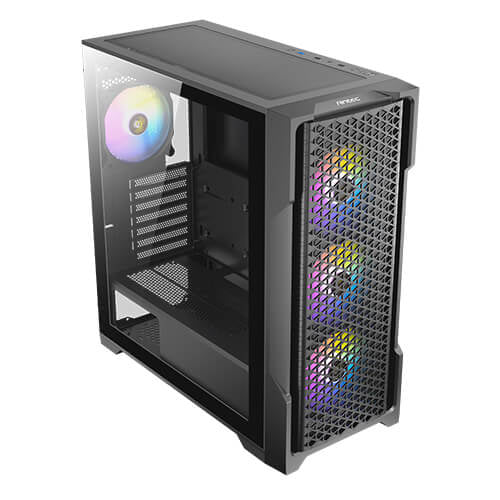

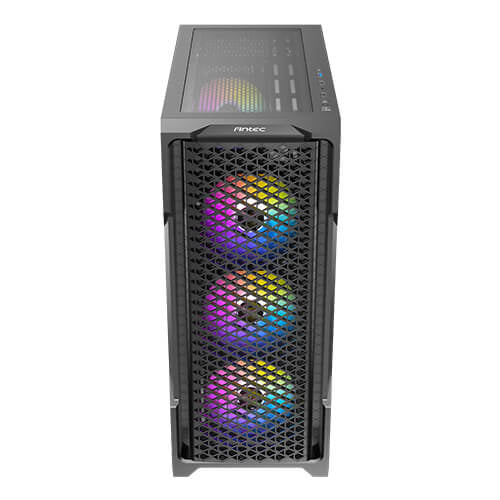

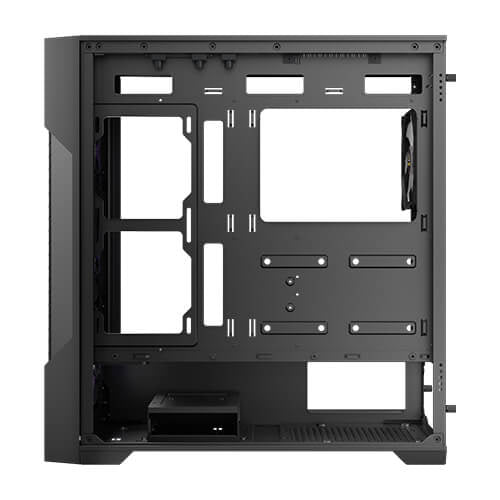

Antec AX90 Midi Tower Black

Mid-Tower, ATX, Micro-ATX, ITX, Tempered glass, Steel, Plastic, 473 x 210 x 486mm, 6.77 Kgs

Description

Unique Design &Powerful Heat Dissipation The AX90 features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously. Diamond-Shaped Mesh Front Panel The diamond-shaped mesh front panel is ready to provide massive airflow for your system and the dust filtering function. MAXIMUM COOLING POTENTIAL The spacious interior can accommodate both front and upper radiators up to 360mm PowerfulCooling Supporting 1 x 240mm radiator or 2 x 120mm fans side-mounted. High-Airflow Mesh Front Panel Enlarged mesh front panel provides massive airflow. Pre-Installed 4 x 120mm Fans Pull in massive air for cooling. In Sync with Motherboard for ARGB Lighting The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup. Neat Build within Reach 23mm space for cable management ensures your PC build looks neat. Tempered Glass Side Panel Showcase your personalized hardware and custom water-cooling system.

Specifications

Technical details
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	ATX, ITX, micro ATX
Supported HDD sizes	2.5,3.5"
Reset button	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	16 cm
Maximum graphics card length	38.5 cm
Maximum PSU length	41 cm
Type	PC
Form factor	Midi Tower
Material
Material	Plastic, Steel
Ergonomics
Reset button	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Plastic, Steel
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	ATX, ITX, micro ATX
Reset button	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	16 cm
Maximum graphics card length	38.5 cm
Maximum PSU length	41 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Power supply included	No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	2
Combo headphone/mic port	Yes
Cooling
Front radiator fan sizes supported	120,140,240,280 mm
Rear radiator fan sizes supported	120 mm
Top radiator fan sizes supported	120,140,240,280 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Number of side fans supported (max)	2
Side fans diameters supported	120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120 mm
Side radiator fan sizes supported	120,240 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	210 mm
Depth	473 mm
Height	486 mm
Weight	6.77 kg
Packaging data
Package weight	7.93 kg
LED controller	Yes
