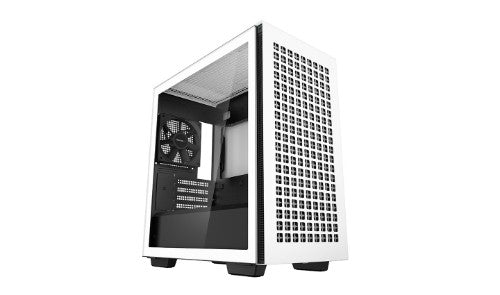

DeepCool CH370 WH Mini Tower White

Mini-ITX / Micro-ATX, 2 x USB3.0, 413 x 215 x 431mm, 5.3 Kg

Key Features

• The built-in GPU support bracket ensures that your graphics card never has to sag
• Dedicated dust-filters help keep your system clean
• Quick-release SSD mounting provides simple installation

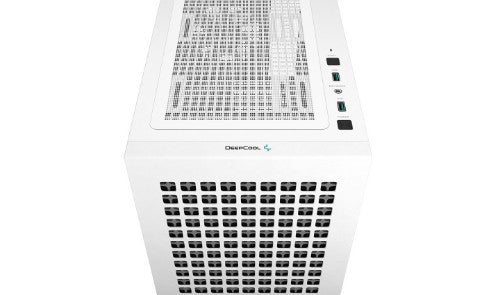

• A standard 2x USB 3.0 and 1x Combo Audio Jack sit conveniently on top for quick and easy access

Description

CH370 WH
The DeepCool CH370 WH is a sleek and minimalistic Micro ATX case with extensive cooling capacity support for a 360mm radiator and up to 8x 120mm fans for a compact powerhouse.

CH370 WH
Compact Powerhouse

MICRO ATX CASE
The DeepCool CH370 is a sleek and minimalistic Micro ATX case with extensive cooling capacity support for a 360mm radiator and up to 8x 120mm fans for a compact powerhouse.

COMPLETE AND COMPACT BUILD EXPERIENCE

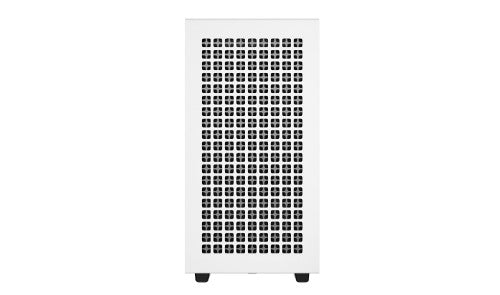

The CH370 is an ideal micro ATX case for any level builder needing a spacious interior and robust feature set designed for a high-performance PC system. The high airflow front panel allows for ample cooling with expansion options for further upgrades. The front panel features an optional shiftable plastic insert for cosmetic purposes.

EXPAND YOUR COOLING
Despite its smaller footprint, the CH370 can install up to a 360mm radiator in front or a 240mm on top for water cooling setups and also support up to 8x 120mm or 4x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.

EXTRA SIDE VENTILATION
The steel side panel features ventilation for airflow when utilizing PSU shroud fans.

SIMPLY STREAMLINED

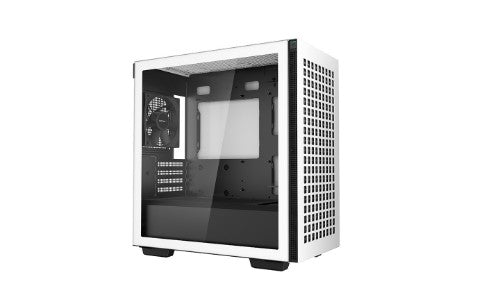

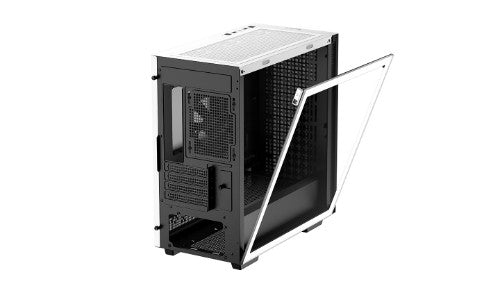

A magnetic tempered glass side panel offers the most convenient way to mount glass panels that includes an optional safety lock for extra security.

RETRACTABLE HEADSET HOLDER
A convenient headset holder can be pulled out from the front panel to help you organize.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Side window	Yes
Product colour	White
Number of expansion slots	4
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	32 cm
Maximum PSU length	16 cm
Type	PC
Form factor	Mini Tower
Material
Material	ABS, Steel, Tempered glass
Indication
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Ergonomics
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	ABS, Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	micro ATX, Mini-ITX
Side window	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Product colour	White
Number of expansion slots	4
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	32 cm
Maximum PSU length	16 cm
Type	PC
Form factor	Mini Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX, PS2
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Front radiator sizes supported	120,140,240,280,360 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,140,240 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	413 mm
Depth	215 mm
Height	431 mm
Weight	5.3 kg
