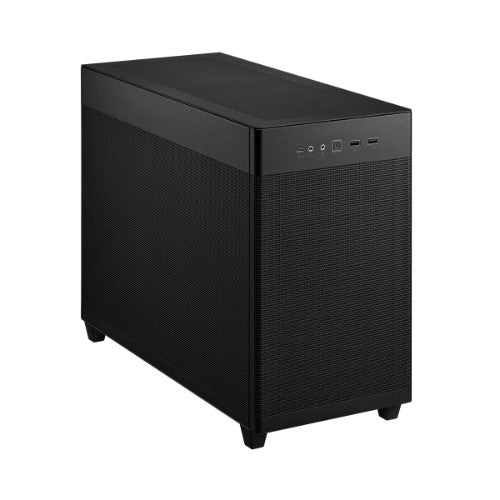

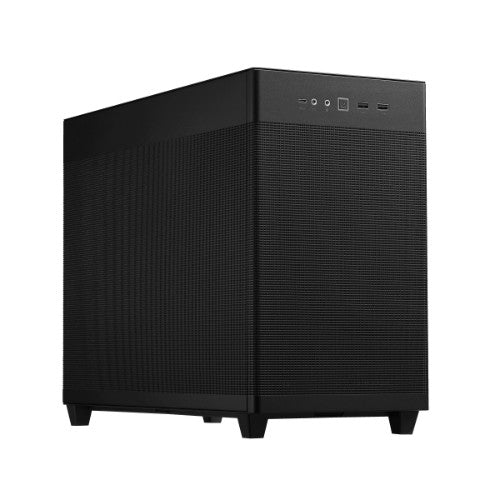

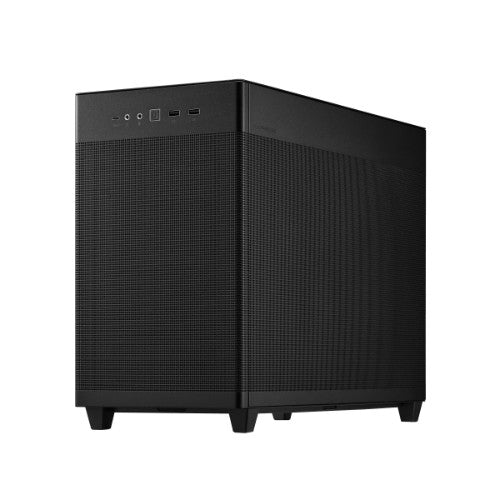

ASUS AP201 PRIME CASE TG Mini Tower Black

The ASUS Prime AP201 Tempered Glass version is a stylish 33-liter MicroATX case with tool-free side panels, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs

Key Features

• Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware
• Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices
• Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging
• Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight
• Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps

Description

GO BIG. STAY COMPACT.
33-LITERS OF COOL

The ASUS Prime AP201 Tempered Glass Version is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels also provide easy access, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.

INDUSTRY-LEADING SPATIAL EFFICIENCY
LOAD UP
Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.

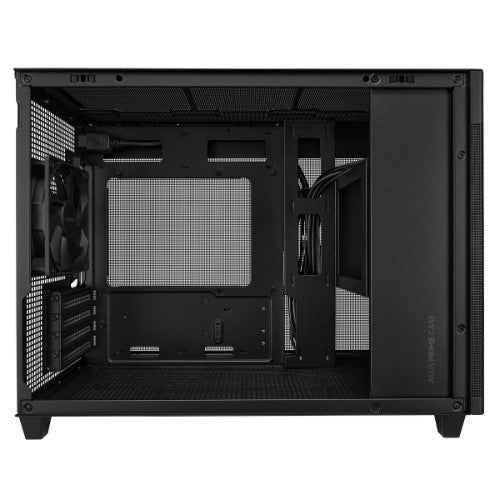

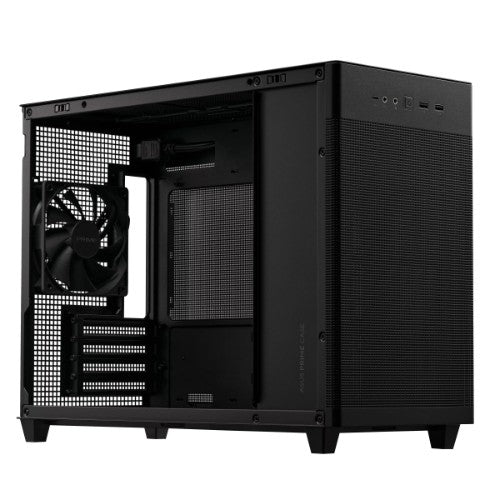

ASUS Prime AP201 TG Version with side panel removed, line art of motherboard, 360 mm radiator, graphics card, and power supply

OPTIMIZED FOR AIRFLOW
RUN COOL
With support for 280 and 360mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of convention-defying SFF rigs loaded with multi-core CPUs and high-end graphics cards.

REMOVABLE DUST FILTER
SPECS, NOT SPECKS
The two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.

TOOL-FREE SIDE PANELS
UNRESTRICTED ACCESS
Instead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged.

SIZEABLE CABLE-MANAGEMENT
TIDY AS YOU LIKE

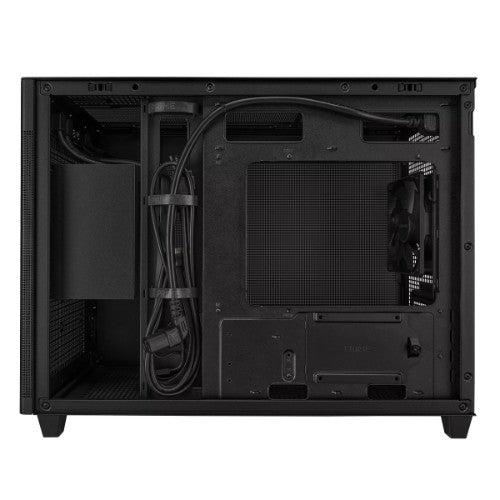

The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap, giving builders ample room to tuck cables out of sight and create a clean aesthetic for their DIY PC.

COLOR-MATCHED CABLES
STYLE THAT’S BLACK AND WHITE
The AP201 comes in black or white, and its cables are coordinated to match the color of the chassis for a premium look and feel.

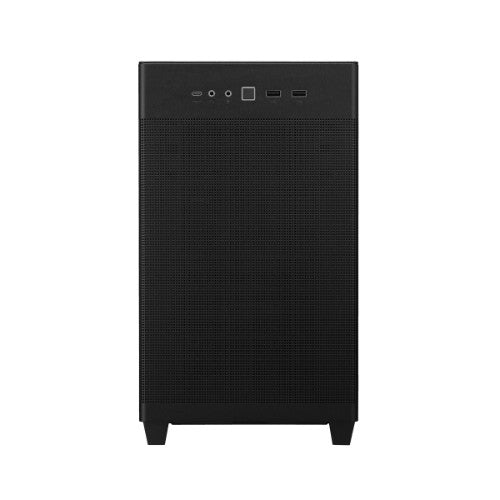

FRONT PANEL USB TYPE-C® SUPPORT
NIMBLE CONNECTIONS
In addition to two Type-A USB 3.2 Gen 1 ports, the front panel of the AP201 also features a Type-C port that is rated for USB 3.2 Gen 2. Compatible microATX ASUS motherboards such as the TUF Gaming B660M Plus or ROG STRIX B660-G can use this port to enjoy transfer speeds of up to 10 Gbps.

Specifications

Technical details
Number of 3.5" bays	3
Number of 2.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Side window	Yes
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	17 cm
Maximum graphics card length	33.8 cm
Maximum PSU length	18 cm
Type	PC
Form factor	Mini Tower
Ergonomics
Cable management	Yes
Design
Anti-dust filter	Yes
Number of 3.5" bays	3
Number of 2.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ITX
Side window	Yes
Cable management	Yes
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	17 cm
Maximum graphics card length	33.8 cm
Maximum PSU length	18 cm
Type	PC
Form factor	Mini Tower
Tempered glass panel(s)	Yes
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
Cooling
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,140,240,280,360 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	205 mm
Depth	350 mm
Height	460 mm
Weight	5.8 kg
