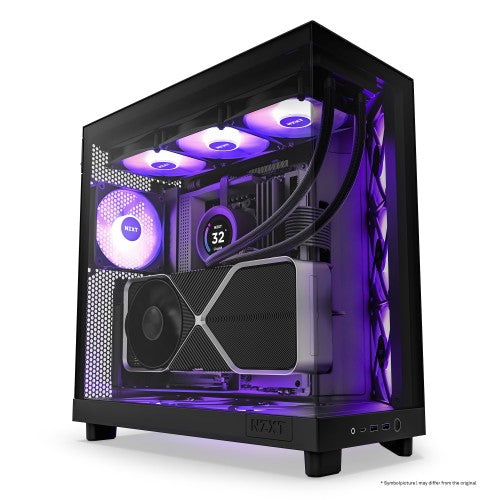

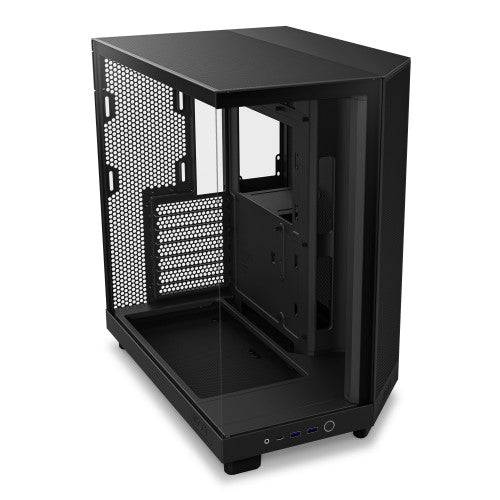

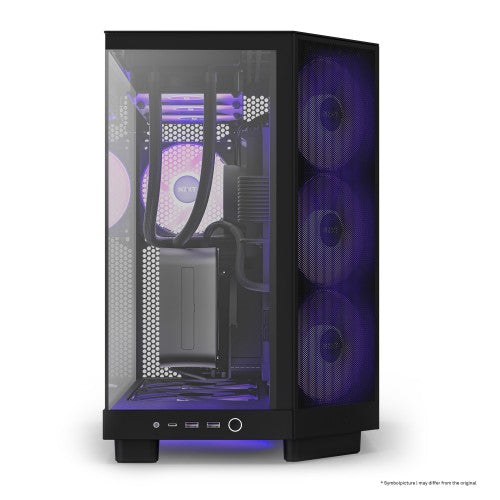

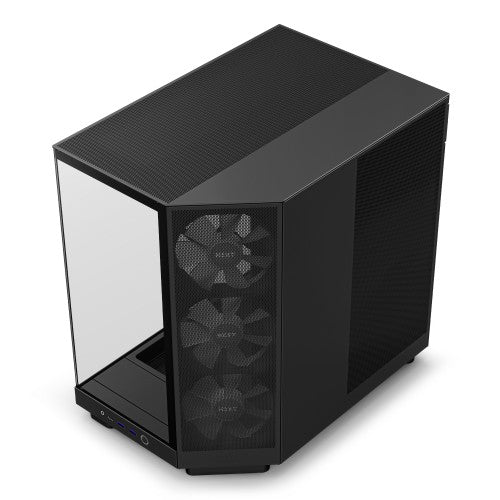

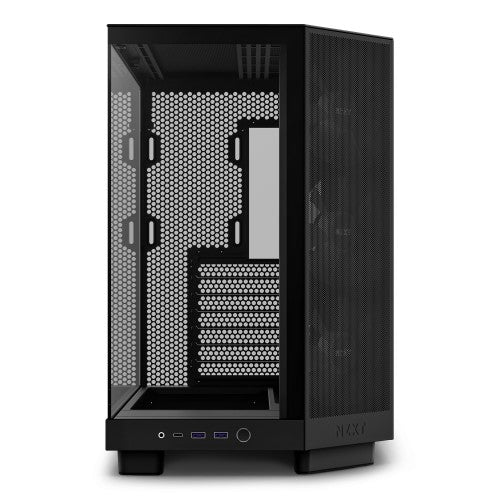

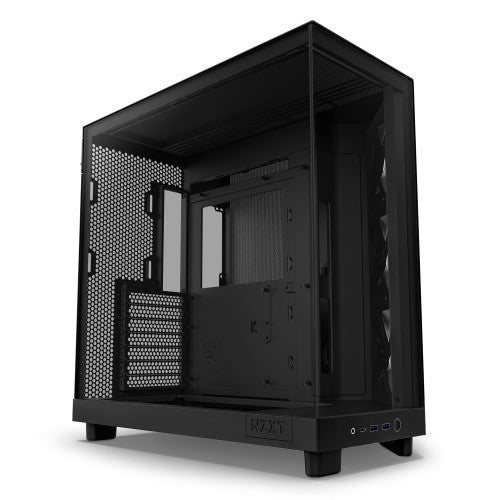

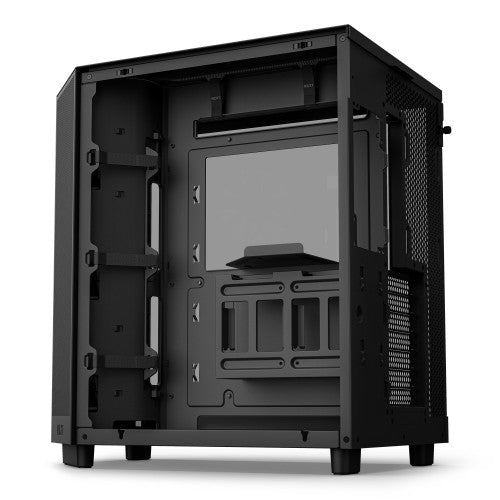

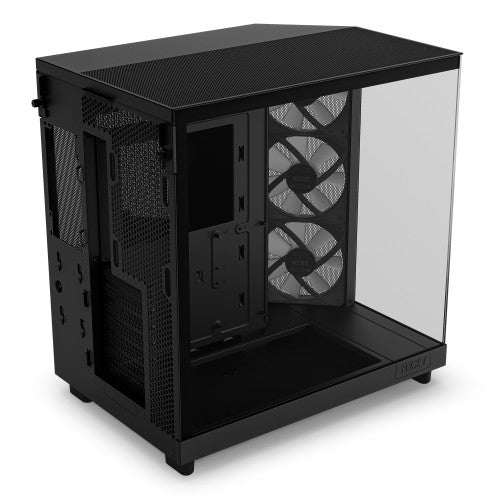

NZXT H6 Flow RGB Midi Tower Black

Compact Dual-chamber, Mid-tower, Mini-ITX / Micro-ATX / ATX, 2 x 2.5, 1 x 3.5, 3 x F120Q (RGB),9.4 kg, Black

Description

Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance

A SEAMLESS SHOWCASE
Tempered glass front and side panels offer an uninterrupted view of components, while the dual-chamber design hides PSU and storage for a sleek, compact, and standout look

ANGLED AIRFLOW
The angled front-right corner with 3 x 120mm fans targets heat-prone components. Supports 2 x 140mm fans beneath the GPU for optimal cooling while perforated panels enhance airflow.

BUILDING MADE SIMPLE
H6 Flow's intuitive design makes building a breeze. Wide channels and included straps aid cable management. Tool-less access to top and side panels simplifies tinkering and upgrading.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	1
Number of 2.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	16.3 cm
Maximum graphics card length	36.5 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
Warranty period	2 year(s)
Material
Material	Steel, Tempered glass
Indication
Illumination location	Case fans
Illumination colour	Blue, Green, Red
Illumination	Yes
Ergonomics
Cable management	Yes
On/off button	Yes
Design
Material	Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	1
Number of 2.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Illumination location	Case fans
Illumination colour	Blue, Green, Red
Illumination	Yes
Cable management	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	16.3 cm
Maximum graphics card length	36.5 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
USB 2.0 ports quantity	0
Cooling
Rear radiator sizes supported	120 mm
Top radiator sizes supported	360 mm
Maximum airflow	55.17 cfm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	140 mm
Fan speed	0 - 1300 RPM
Maximum air pressure	1.27 mmH2O
Storage
Supported HDD sizes	2.5,3.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	287 mm
Depth	415 mm
Height	435 mm
Weight	9.4 kg
Packaging data
Package width	508 mm
Package height	515 mm
Package depth	361 mm
Package weight	11.2 kg
Manual	Yes
Other features
Maximum airflow	55.17 cfm
Manual	Yes
