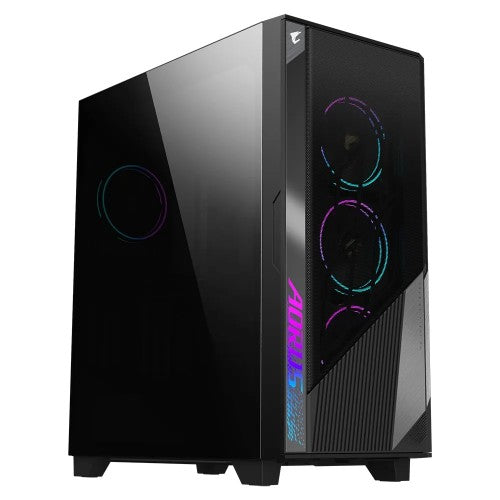

GIGABYTE GB-AC500G ST computer case Midi Tower Black

Mid Tower, Mini ITX / Micro ATX / ATX / E-ATX, USB 3.1 Gen2 Type-C x1 / USB 3.0 x2 / Audio In & Out, Black

Key Features

• Optimized Airflow design
• Support Motherboards up to E-ATX
• Up to 420mm Liquid Cooling Compatible
• Support Vertical GPU Installation
• Modular Easy Installation
• Full-Size Tempered Glass Side Panel
• With USB 3.0 x2 and USB 3.1 Gen2 Type-C x1 on I/O panel
• RGB Fusion 2.0
• Pre-installed 4 fans with ARGB & PWM Connector Hub

Description

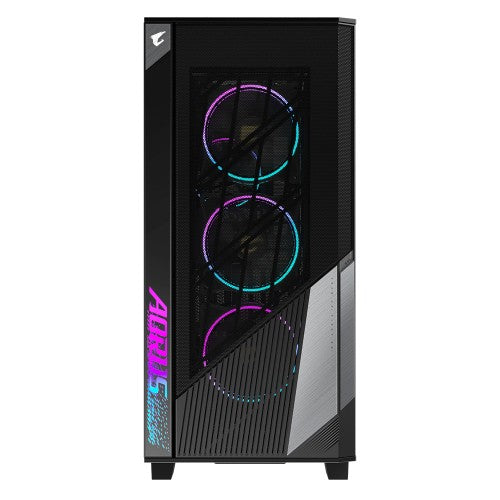

OPTIMIZED AIRFLOW DESIGN
The AORUS C500 GLASS comes with the large mesh front and the vented top panel, delivering generous airflow with premium aesthetics.

MAX COOLING POTENTIAL
The large interior offers extra space that allows users to add 3 more 120mm fans on top of the space that houses the triple 120mm fans in both the front and roof position along with a radiator.

MAX COMPATIABILITY
The AORUS C500 GLASS is compatible with every single AORUS component and has room to hold up to E-ATX motherboards and radiators up to 420mm, providing users with the upmost flexibility.

CABLE MANAGEMENT
LIKE A PRO
A series of grooves and cutouts are located behind the board and along the case edges for smart and tidy cable management, which can shorten your building time.

EASY TO INSTALL.
EASY TO USE.

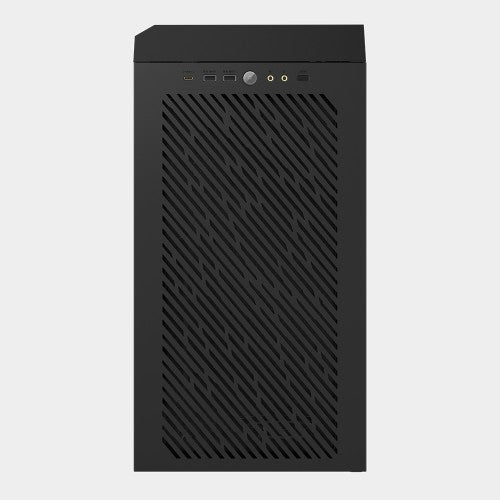

EASY-ACCESS SWING DOOR FRONT PANEL
The swing door design allows easy front access without having to remove the entire panel, which avoids the risk of detaching any cables by accident.

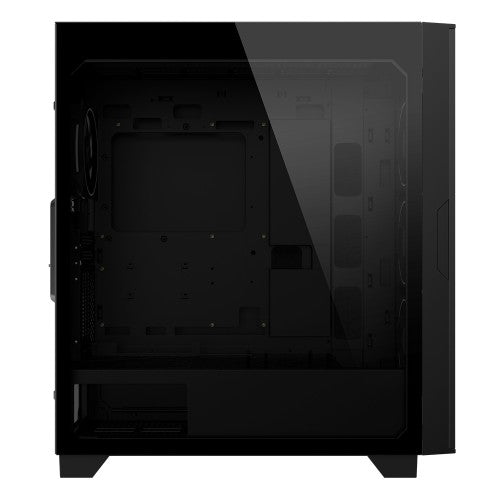

TEMPERED GLASS PANEL WITH ANTI-DROPPING DESIGN
The 4mm tempered glass side panel is thoughtfully designed to be removed by tilting out the top first to prevent accidental drops. The non-drilled design further improves the glass panel's strength and safety.

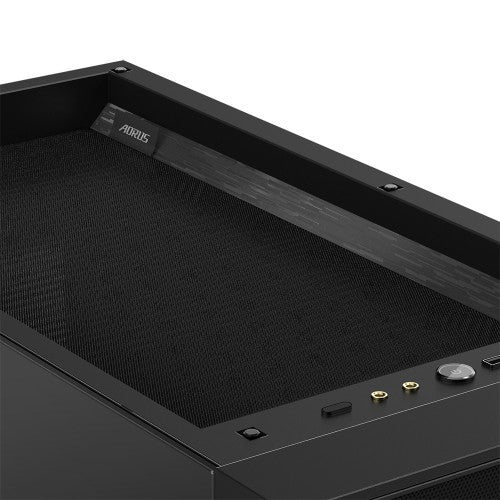

VERSATILE FRONT I/O.
REAL 11 CORE CABLE.
The 2 USB 3.0 ports use the 11-core USB cables to ensure stable signal integrity. The front I/O also offers versatile connectivity, including a USB 3.1 Gen-2 Type-C port and an audio port.

RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

ARGB & PWM CONNECTOR HUB
The built-in ARGB and PWM connector hub is equipped with 5x 5V 3-pin and 5x PWM connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig.

Specifications

Technical details
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Product colour	Black
Number of expansion slots	11
Type	PC
Form factor	Midi Tower
Material
Material	Glass, Plastic, Steel
Indication
LED indicators	Yes
Illumination location	PSU fan
Illumination colour	Blue, Green, Red
Illumination	Yes
Ergonomics
Reset button	Yes
LED indicators	Yes
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Glass, Plastic, Steel
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Reset button	Yes
LED indicators	Yes
Illumination location	PSU fan
Illumination colour	Blue, Green, Red
Illumination	Yes
Cable management	Yes
Product colour	Black
Number of expansion slots	11
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
Cooling
Front radiator sizes supported	420 mm
Rear radiator sizes supported	140 mm
Top radiator sizes supported	360 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	250 mm
Depth	482 mm
Height	548 mm
Weight	13.4 kg
Packaging data
Package width	336 mm
Package height	594 mm
Package depth	584 mm
