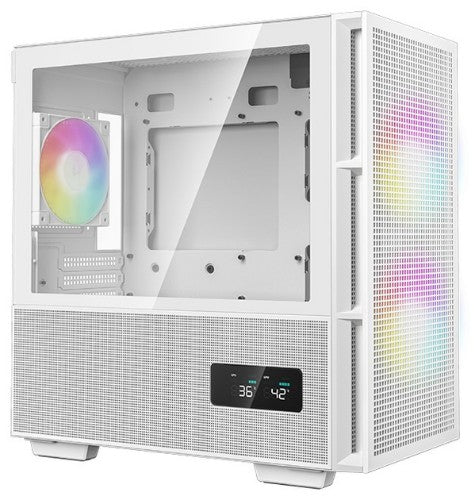

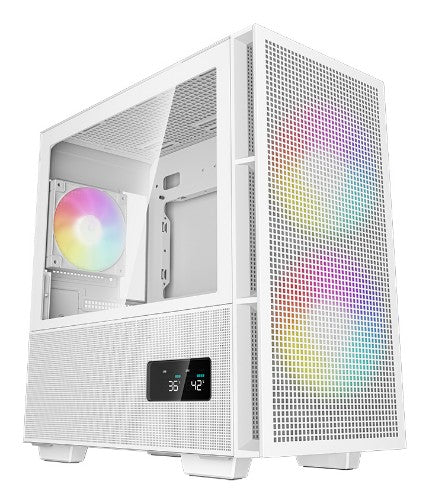

DeepCool R-CH360-WHAPE3D-G-1 computer case Micro Tower White

mATX, 2×140mm ARGB / 1×120mm ARGB, 2.5"/3.5", 4 Slots, USB3.0, 428 × 215 × 431 mm, 6 kg, White

Description

The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH360 DIGITAL is a newly designed mATX case with a concentrated focus on increased airflow throughout the entire chassis. Two bright PWM enabled 140mm ARGB fans are mounted in front of the main compartment, a hybrid side panel, and a dual status digital screen sets the CH360 DIGITAL apart from the competition.

CH360 DIGITAL
HIGH AIRFLOW CASES REIMAGINED

A BREATH OF FRESH AIR

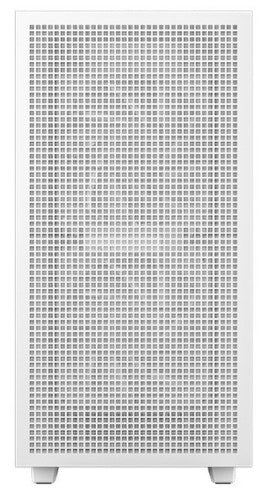

The CH360 DIGITAL provides exceptional airflow from all sides of the case; from the high airflow front to the hybrid tempered glass side panel; cool air is always available for the modern power-hungry components.

HYBRID AIRFLOW GLASS SIDE PANEL

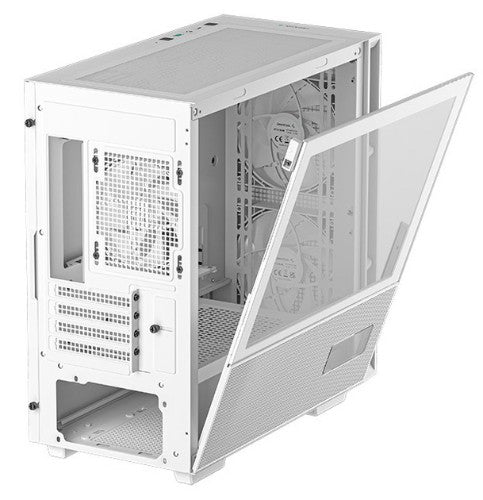

A unique tempered glass and mesh hybrid side panel provides a crystal-clear view into the heart of your system while also supplying modern GPUs with additional ventilation: a functional yet elegant design.

REAL-TIME DUAL-STATUS DIGITAL DISPLAY
Monitor vital CPU and GPU information from the cockpit of your gaming station with the integrated double-status digital screen. Choose between CPU and GPU temperatures, utilization, or both (switches between temperature and utilization in 5-second intervals). A simple to use application will give you control of the display statuses.

MAXIMUM COOLING CAPACITY
The CH360 DIGITAL has a plethora of cooling configurations, from the ability to mount a 360mm radiator in front to the two included 140mm ARGB fans up front—the cooling configurations are endless.

LARGE RANGE OF COMPATIBLE COMPONENTS
With the ability to support 165mm tall CPU coolers, 320mm GPUs, and 160mm PSUs; the CH360 DIGITAL can be configured with a wide range of modern components.

BIGGER, BRIGHTER, BETTER
Two luminous PWM-enabled 140mm ARGB fans come pre-installed on the front of the CH360 DIGITAL and introduce an abundant amount of fresh air into the chassis. These fans are mounted outside of the main compartment to provide extra clearance for modern GPUs while maintaining a smaller footprint. A 120mm ARGB fan is included in the rear of the case to help exhaust internal case heat.

STRESS-FREE BUILDING

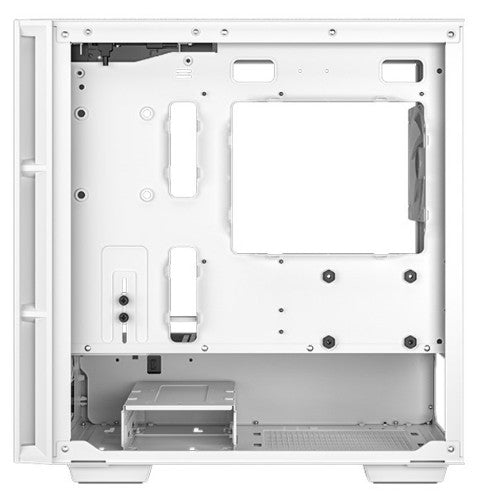

Building and maintaining the CH360 DIGITAL is a breeze: the magnetic hybrid panel with an optional security screw, magnetic air filters, integrated GPU support arm, a removeable hard drive cage, and 26mm of cable management space behind the motherboard tray make life with a computer a little bit easier.

CONVENIENCE AT ARM'S REACH

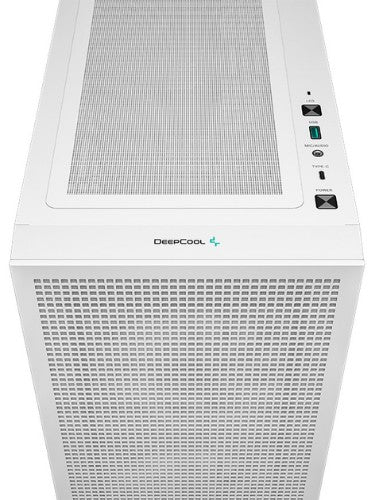

Everything necessary for daily routines is within reach with a Type-C, a USB 3.0 port, and a hybrid audio port, all conveniently located on the case I/O panel.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Product colour	White
Number of expansion slots	4
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	32 cm
Maximum PSU length	16 cm
Type	PC
Form factor	Micro Tower
Material
Material	ABS, SPCC, Tempered glass
Indication
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Design
Material	ABS, SPCC, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	micro ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Product colour	White
Number of expansion slots	4
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	32 cm
Maximum PSU length	16 cm
Type	PC
Form factor	Micro Tower
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Display
Built-in display	Yes
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
USB Type-C ports quantity	1
Cooling
Front radiator sizes supported	120,140,240,280,360 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,140,240 mm
Front fans installed	2x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	215 mm
Depth	428 mm
Height	431 mm
Weight	6 kg
