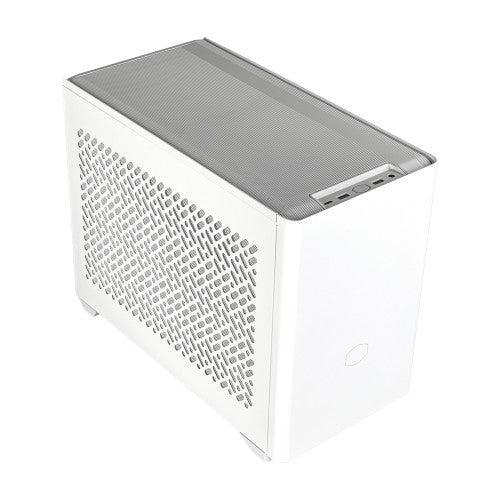

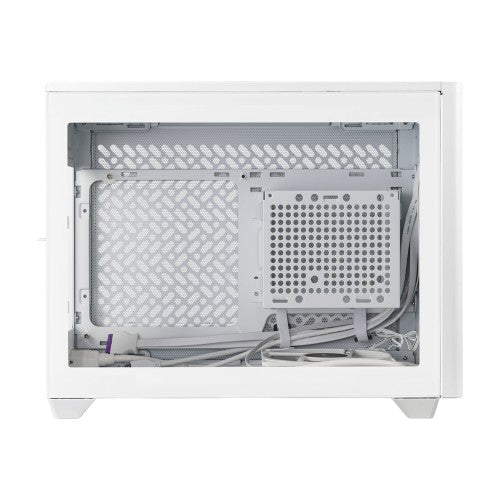

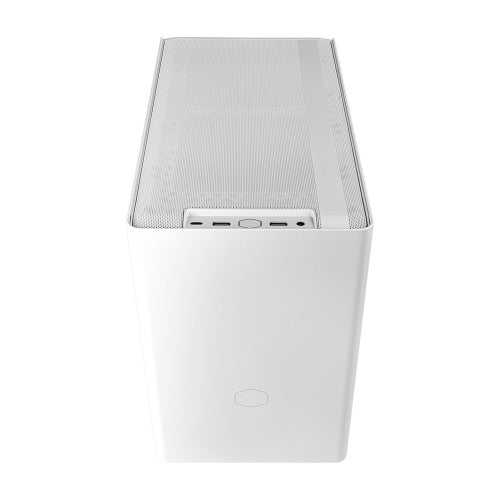

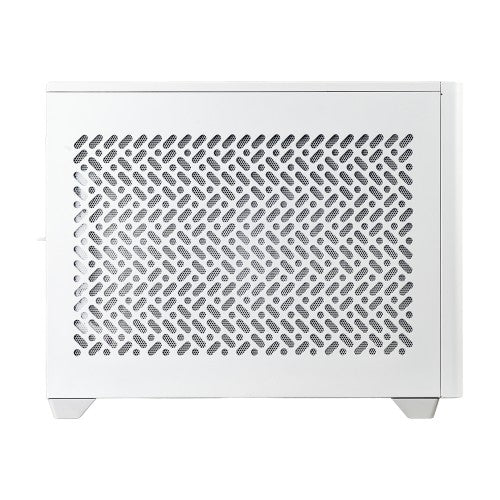

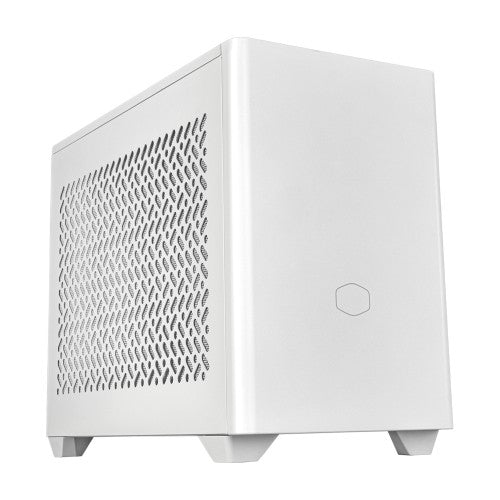

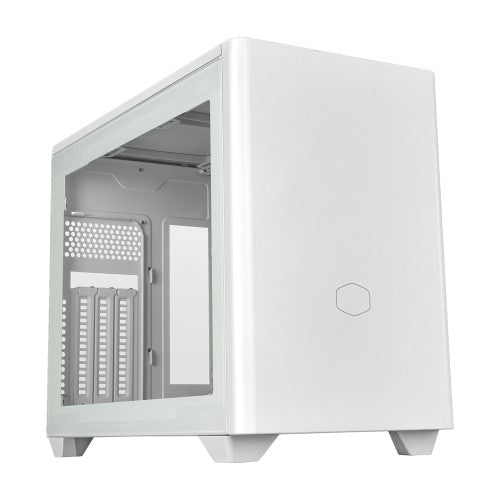

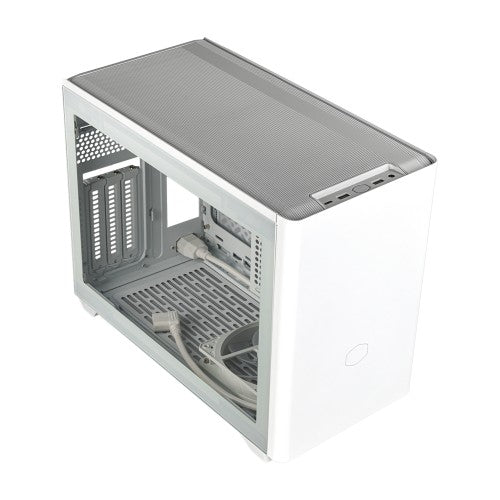

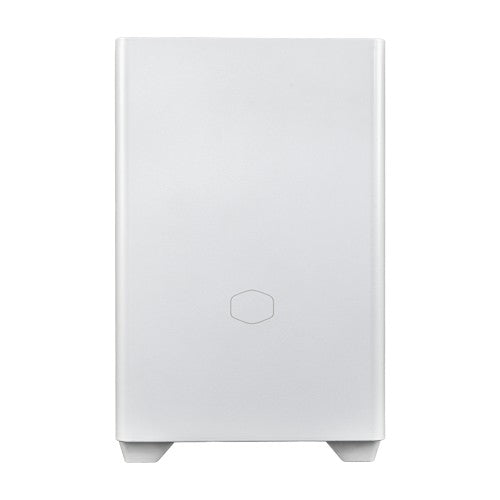

Cooler Master MasterBox NR200P V2 Desktop White

Mini ITX, 18.25L, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type C, 1 x 3.5mm, 1 x 120mm, White

Key Features

• Compact yet powerful
• Stay cool under pressure
• Optimized GPU performance
• Comprehensive GPU support
• Easy, tool-free access
• USB 3.2 Gen 2x2 Type C support
• Refreshed NCORE style

Description

BIG POSSIBILITIES, SMALL SIZE

Compact Yet Powerful
An ultra-sleek 18.25L design delivers unmatched performance and aesthetics with vented steel and tempered glass side panels.

Stay Cool Under Pressure
No performance compromises with support for 240mm/280mm liquid coolers, providing the ultimate in thermal efficiency.

Optimized GPU Performance
An efficient vertical airflow layout supported by a 120mm bottom-mounted fan keeps your GPU extra cool.

Comprehensive GPU Support
Includes vertical mounting options, a custom PCIe 4.0 riser cable, and a support bracket for GPUs up to 356mm in length and 160mm in height.

Easy, Tool-free Access
All external panels are secured with pins for easy removal, facilitating quick access to the internals without the use of tools while a removable GPU panel simplified the installation process.

The New Ncore Style
An NCORE redesign provides a sleek take on maximizing cooling performance and style simultaneously.

USB 3.2 Gen 2x2 Type C Support
A USB 3.2 Gen 2x2 Type C port is built into the I/O panel with up to 20Gbps transfer speeds.

Specifications

Design
Volume	18.25 L
Anti-dust filter	Yes
Material	ABS, Mesh, SGCC, Steel, Tempered glass
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	Mini-ITX
Side window	Yes
Product colour	White
Number of expansion slots	3
Maximum CPU cooler height	6.7 cm
Maximum PSU length	13 cm
Type	PC
Form factor	Desktop
Technical details
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	Mini-ITX
Supported HDD sizes	2.5,3.5"
Side window	Yes
Product colour	White
Number of expansion slots	3
Maximum CPU cooler height	6.7 cm
Maximum PSU length	13 cm
Type	PC
Form factor	Desktop
Material
Material	ABS, Mesh, SGCC, Steel, Tempered glass
Power supply
Supported power supply form factors	SFX, SFX-L
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
Cooling
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Bottom fans installed	1x 120 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	120 mm
Fan speed	650 - 1800 RPM
Pulse-width modulation (PWM) support	Yes
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Volume	18.25 L
Width	185 mm
Depth	372 mm
Height	292 mm
Weight	4.35 kg
Packaging data
Package width	288 mm
Package height	448 mm
Package depth	350 mm
Package weight	6.6 kg
Other features
Volume	18.25 L
