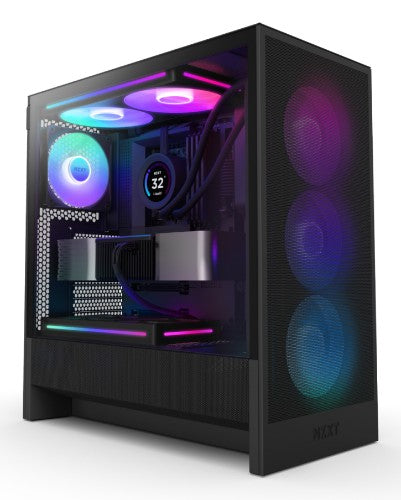

NZXT H5 Flow RGB Midi Tower Black

Mid-Tower, E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX, 465 x 225 x 430 mm, 7.63 kg

Key Features

• The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included)
• Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential
• Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust
• Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting
• Effortlessly route and conceal cables using the wide channels, hooks, and straps

Description

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.

Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

Pre-Installed Fans
Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.
*Case Version (3-pin DC)

Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.

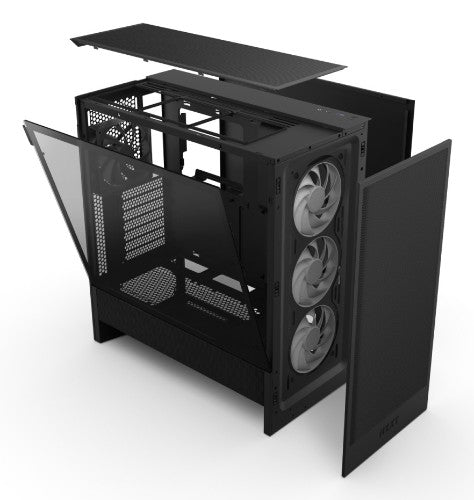

Tool-less Access
Easily open up the front, side, and top panels without any tools.

Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.

Specifications

Design
Fan connector	3-pin
Noise level	23.3 dB
Anti-dust filter	Yes
Material	SGCC, Tempered glass
Number of 3.5" bays	1
Number of 2.5" bays	2
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	17.5 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Technical details
Number of 3.5" bays	1
Number of 2.5" bays	2
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Noise level	23.3 dB
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	17.5 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
Material
Material	SGCC, Tempered glass
Indication
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Ergonomics
Cable management	Yes
On/off button	Yes
Power supply
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Fan connector	3-pin
Audio input	Yes
Audio output	Yes
Cooling
Front radiator sizes supported	360 mm
Top radiator sizes supported	240 mm
Maximum airflow	50.1 cfm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	120 mm
Fan speed	1350 - 1700 RPM
Liquid cooling capability	Yes
Maximum air pressure	1.27 mmH2O
Fan 2 maximum airflow	60.2 cfm
Fan 2 maximum air pressure	1.05 mmH2O
Storage
Supported HDD sizes	2.5,3.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	225 mm
Depth	430 mm
Height	465 mm
Weight	7.63 kg
Packaging data
Manual	Yes
Other features
Maximum airflow	50.1 cfm
Fan connector	3-pin
Noise level	23.3 dB
Manual	Yes
