ASUS A23 PLUS TG ARGB WHITE

ASUS A23 PLUS micro-ATX case offers support for hidden-connector motherboards, 360 mm radiators, and 380 mm graphics cards, with four pre-installed ARGB fans and clean cable management

Key Features

• Hidden Connectors: Compatible with motherboards featuring hidden connectors, which maximizes clean cable management for a clutter-free build
• Broad Compatibility: A23 PLUS supports up to 360 mm radiators, graphics cards up to 380 mm long and CPU air coolers up to 165 mm tall

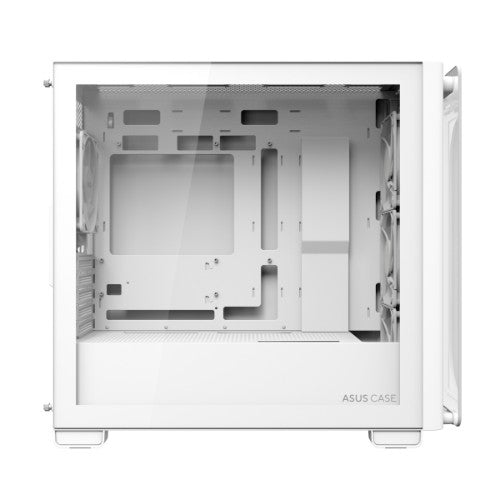

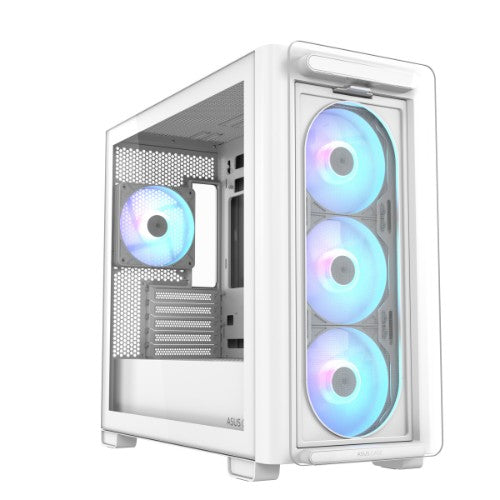

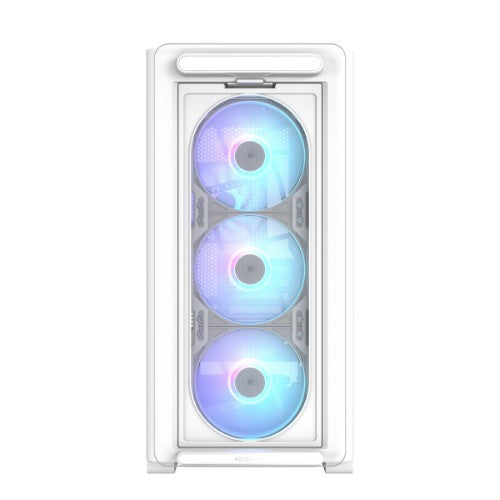

• Standoff-mounted tempered-glass front panel: Enlarged window design lets users fully enjoy the captivating visuals of the front ARGB fans

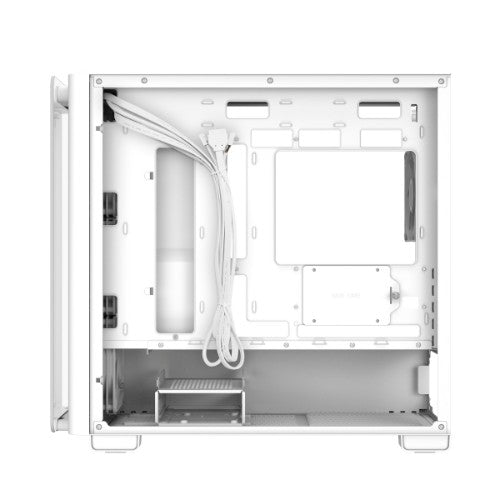

• Ample cable management: The A23 PLUS provides a compartment behind the motherboard that is 33 mm wide to keep your wiring tucked away and tidy

Description

Discover Hidden Potential
The ASUS A23 PLUS is a PC case crafted for minimalist mainstream DIY PC builders, with support for a variety of AIO coolers and graphics cards, and the four pre-installed ARGB fans provide plenty of airflow potential to keep things running smoothly.

Hidden Connectors
In addition to supporting conventional mini-ITX and micro-ATX motherboards, the A23 PLUS is also compatible with the TUF GAMING B760M-BTF WIFI, whose innovative connectors and headers are located on the underside to maximize clean cable management.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Product colour	White
Number of expansion slots	5
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	38 cm
Maximum PSU length	21 cm
Type	PC
Indication
Illumination colour	Multi
Illumination	Yes
Ergonomics
Cable management	Yes
On/off button	Yes
Design
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	micro ATX, Mini-ITX
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Product colour	White
Number of expansion slots	5
Maximum CPU cooler height	16.5 cm
Maximum graphics card length	38 cm
Maximum PSU length	21 cm
Type	PC
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	0
Cooling
Front radiator sizes supported	120,140,240,280,360 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	140,240,360,120,280 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	220 mm
Depth	450 mm
Height	479 mm
Weight	8.9 kg
Packaging data
Package width	290 mm
Package height	493 mm
Package depth	566 mm
Package weight	10.1 kg
