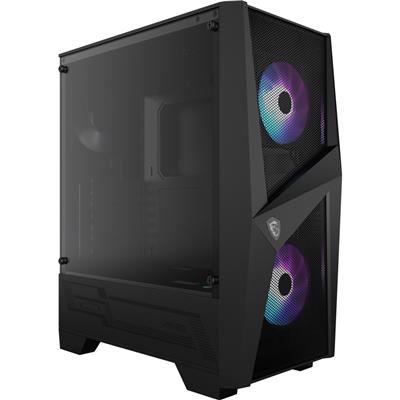

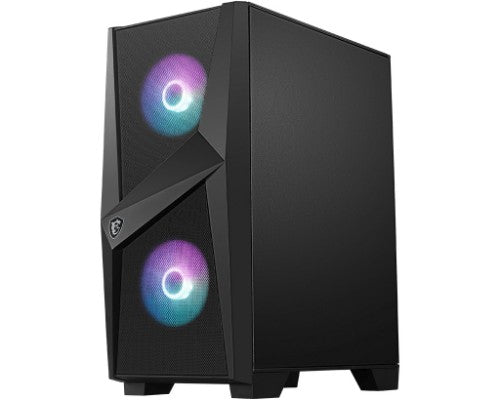

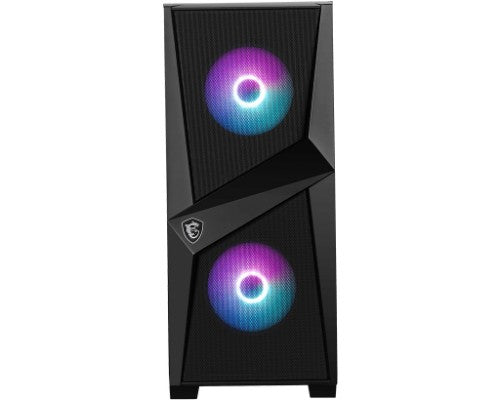

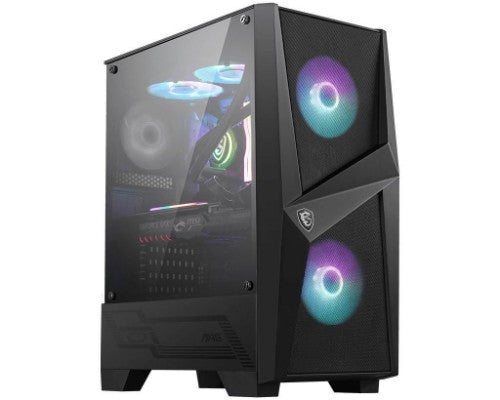

MSI MAG FORGE 100R Mid Tower Gaming Computer Case 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light Sync, Tempered Glass Panel, ATX, mATX, mini-ITX'

Mid-Tower, 2 x USB 3.2 Gen1 Type-A, 1 x HD Audio, 1 x Mic, ATX / mATX / Mini-ITX, 5.64 kg

Key Features

• MSI MAG Forge 100R chassis can support up to ATX motherboard, side panel of 4mm tempered glass, up to 140 mm RGB fan, reserved cooling space and front USB 3.2 Gen 1 Type A
• Optimize Airflow
• ARGB Fan included

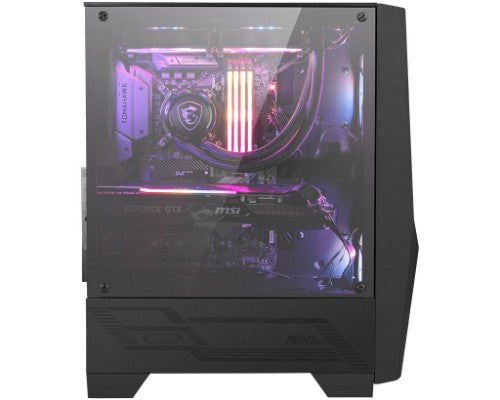

• 4mm Tempered Glass
• 330 mm Radiator Support
• 160 mm CPU Cooler Support

Description

OPTIMIZED AIR FLOW Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series. READY FOR OPTIMIZED MOTHERBOARD Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience. TOOL-LESS TEMPERED GLASS The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction. The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process. PERSONALIZE YOUR GAMING RIG ustomizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build. 1 to 6 ARGB LED Control Board User can intuitively control & switch 9 lighting effects through the LED switch button. LED Switch Button Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.

Specifications

Technical details
Number of 3.5" bays	2
Number of 2.5" bays	3
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Product colour	Black, Transparent
Number of expansion slots	7
Maximum CPU cooler height	16 cm
Maximum graphics card length	33 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
Harmonized System (HS) code	84733080
Material
Material	Tempered glass
Indication
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Ergonomics
Reset button	Yes
LED indicators	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Tempered glass
Number of 3.5" bays	2
Number of 2.5" bays	3
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Reset button	Yes
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Product colour	Black, Transparent
Number of expansion slots	7
Maximum CPU cooler height	16 cm
Maximum graphics card length	33 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
Cooling
Front fans installed	2x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Front fans supported description	addressable RGB LED
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	210 mm
Depth	421 mm
Height	499 mm
Weight	5.64 kg
Other features
Harmonized System (HS) code	84733080
