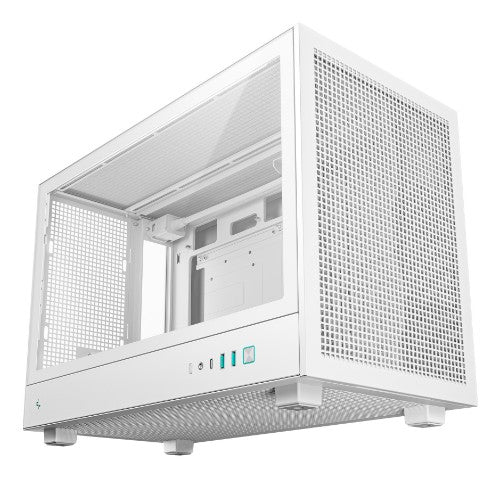

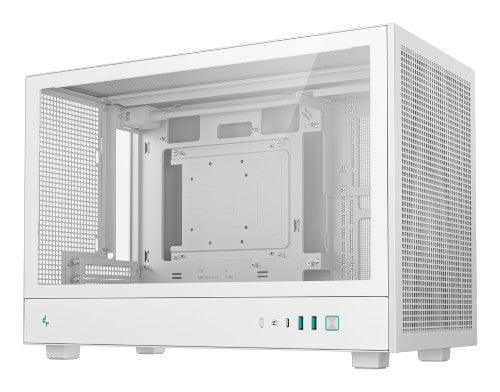

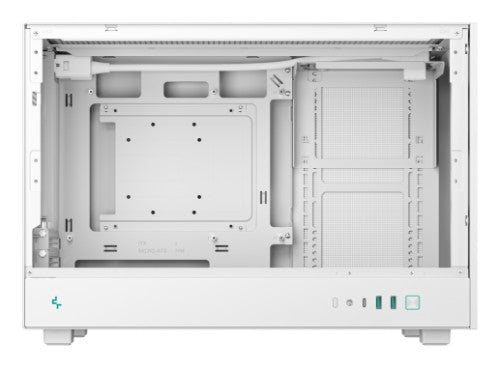

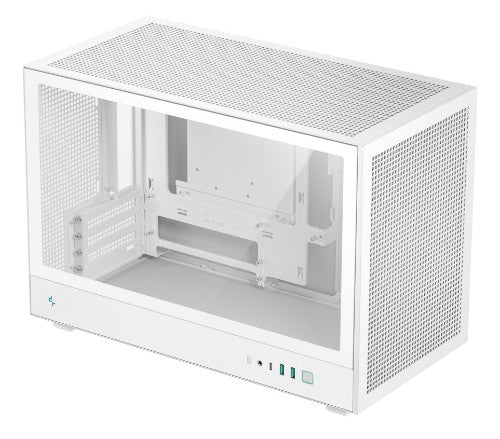

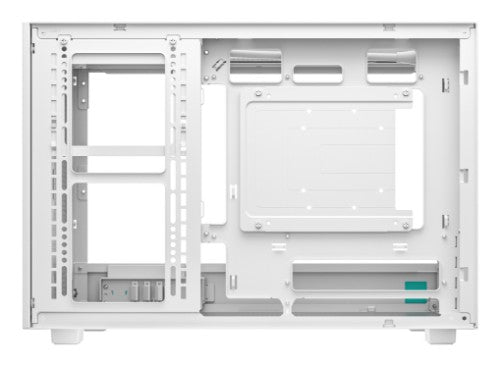

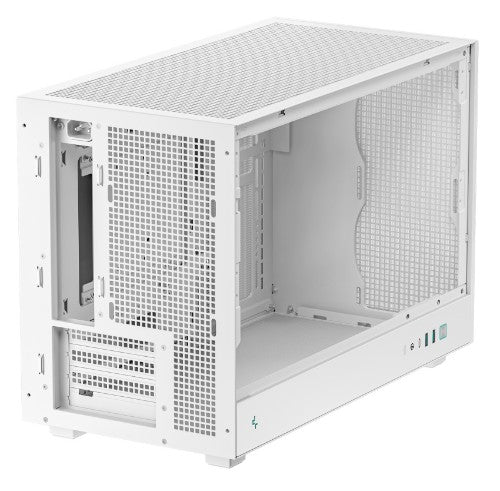

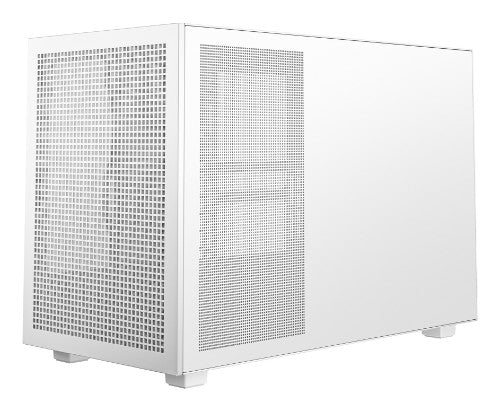

DeepCool CH260 WH Micro Tower White

Mini-ITX / Micro-ATX Micro-ATX(Rear Connector), USB3.0×2, Gen2 Type-C x1, Audio/Mic×1, 438 x 225 x 312.5 mm, White

Description

The CH260 is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.

GO MICRO
The Micro Form Factor CH260 comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.

SMALL SIZE OUTSIDE, FULL SIZE INSIDE
The CH260 provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.

UNCOMPROMISED VENTILATION

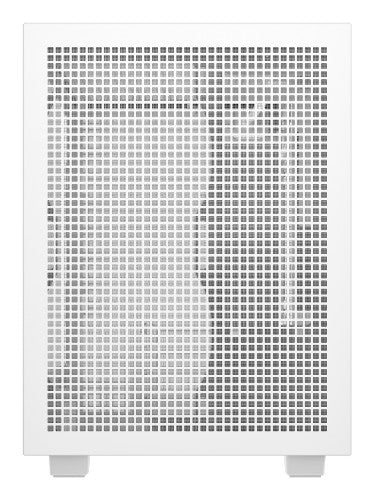

The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.

Specifications

Technical details
Number of 3.5" bays	1
Number of 2.5" bays	1
Number of internal 3.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Product colour	White
Number of expansion slots	4
Maximum CPU cooler height	17.4 cm
Maximum graphics card length	41.3 cm
Type	PC
Form factor	Micro Tower
Material
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Design
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Number of 3.5" bays	1
Number of 2.5" bays	1
Number of internal 3.5" bays	1
Supported motherboard form factors	micro ATX, Mini-ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Product colour	White
Number of expansion slots	4
Maximum CPU cooler height	17.4 cm
Maximum graphics card length	41.3 cm
Type	PC
Form factor	Micro Tower
Power supply
Supported power supply form factors	PS2
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
USB Type-C ports quantity	1
Cooling
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,240,360 mm
Number of front fans supported (max)	2
Front fans diameters supported	120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	225 mm
Depth	438 mm
Height	312.5 mm
Weight	5.3 kg
