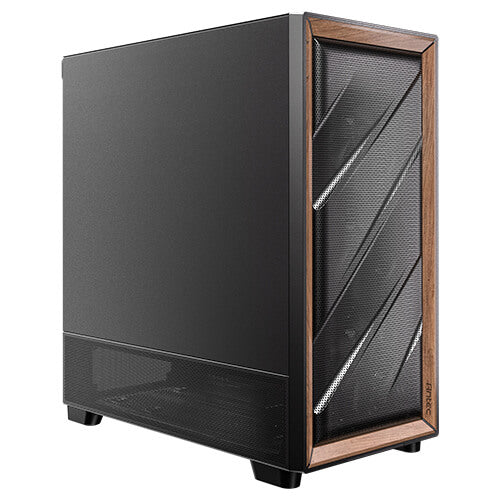

Antec FLUX SE Midi Tower Black, Wood

Mid-Tower, Steel + Plastic + Wood, 7 Expansion Slots, 2.5"/3.5", USB 3.0, USB Type-C, 3.5 mm, 4x 120 mm / 1x 140 mm, 484 x 239 x 502 mm, 8.8 Kg

Description

Flow Luxury
F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 5 x 120 mm fans included, delivering enhanced GPU cooling performance.

Flux Airflow
Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Multi-Directional Vent Design

Pre-Installed Fans 5 x High-Performance PWM Fans

With built-in PWM fan control hub in sync with M/B

Flux Vertical Cooling
Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics card.

Flux Horizontal Cooling
Air intake via the front mesh provide smooth venting channel throughout the case.

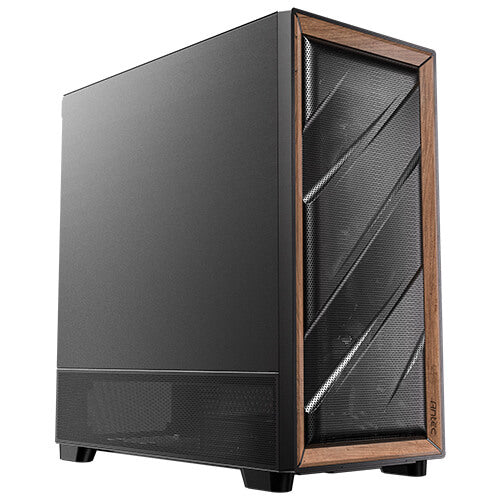

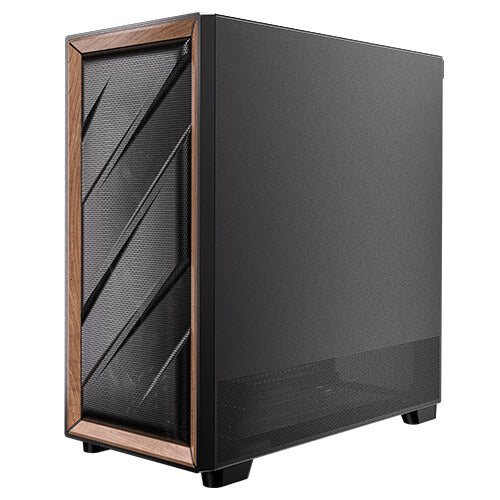

Premium Wood
Front panel is crafted with a combination of metal mesh and wood (walnut) to create a high-quality texture with different materials, integrating seamlessly into your home design.

Optimized Chassis Design
Front is recessed, fostering better airflow and reducing wind noise.

Removable Top Cooling Bracket
Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.

Recommended Water Cooling
Supports simultaneous installation of Front 360mm radiator + Top 360mm radiator.

Extreme Water Cooling
Supports simultaneous installation of Front 420mm push-pull radiator + Top 280mm radiator.

Fan & Radiator Support

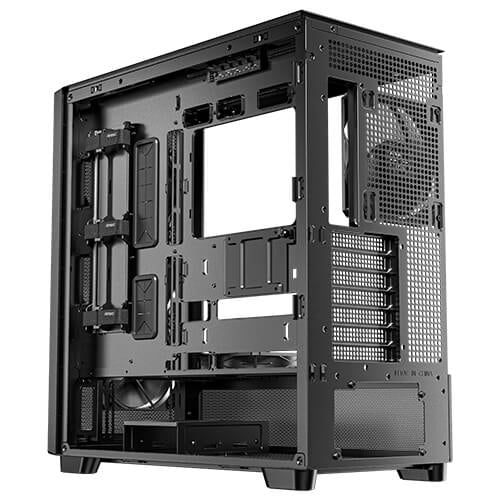

Support Vertical GPU Mount With Vertical Bracket

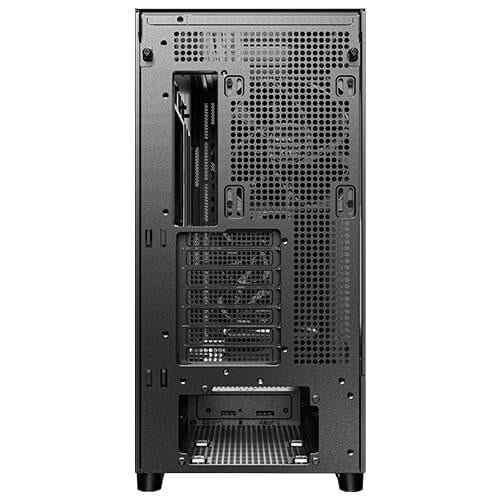

Fully-open PCI slot covers can be removed to install the graphics card vertically.

Support Back-Connect Motherboards
Plug in cables from behind to give front a cleaner look and a smoother airflow channel.

Tool-Free Panel Design

2 x Sound-Dampening Side Panels
Both side panels are designed with sound-dampening foam, offering exceptional sound insulation.

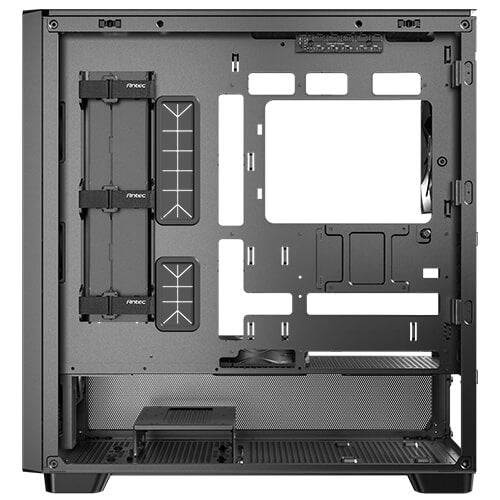

Cable Management

- AVelcro strap x 3
- BCable tie x 3

I/O Panel
Dust plugs included.

Bottom full-size pull-out dust filter
For easy cleaning and strong dust prevention.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	1
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, EATX, ITX, micro ATX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Product colour	Black, Wood
Number of expansion slots	7
Maximum CPU cooler height	18 cm
Maximum graphics card length	40.8 cm
Maximum PSU length	23.5 cm
Type	PC
Form factor	Midi Tower
Material
Material	Plastic, Steel, Wood
Indication
LED indicators	Yes
Ergonomics
Reset button	Yes
LED indicators	Yes
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Plastic, Steel, Wood
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	1
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, EATX, ITX, micro ATX
Suitable for	Gaming
Side window	Yes
Reset button	Yes
LED indicators	Yes
Cable management	Yes
Product colour	Black, Wood
Number of expansion slots	7
Maximum CPU cooler height	18 cm
Maximum graphics card length	40.8 cm
Maximum PSU length	23.5 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Front radiator sizes supported	120,140,240,280,360,420 mm
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,140,240,280,360 mm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	2
Bottom fans diameters supported	120,140 mm
Pulse-width modulation (PWM) support	Yes
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	239 mm
Depth	484 mm
Height	502 mm
Weight	8.8 kg
Packaging data
Package weight	10.3 kg
