be quiet!

be quiet! Pure Base 501 DX White Midi Tower

SKU BGW77
£107.08
£65.44
£107.08
£65.44
Excluding taxes
ATX / M-ATX / Mini-ATX, 1x USB Type-C, 2x USB Type-A, ATX PS/2, 3x Pure Wings 3 140mm PWM White

Key Features

  • High airflow intake front panel and top cover for maximum performance
  • 3 preinstalled Pure Wings 3 140mm PWM White fans for extraordinary air pressure

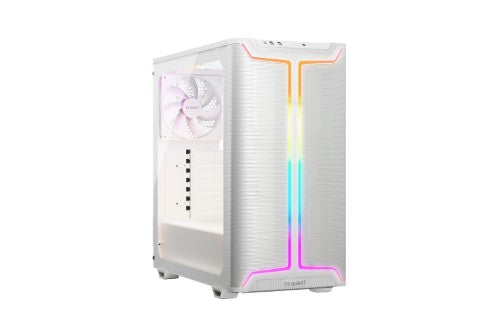

  • Dynamic case front design with elegant ARGB lighting inside and outside of the case
  • ARGB controller with motherboard sync option

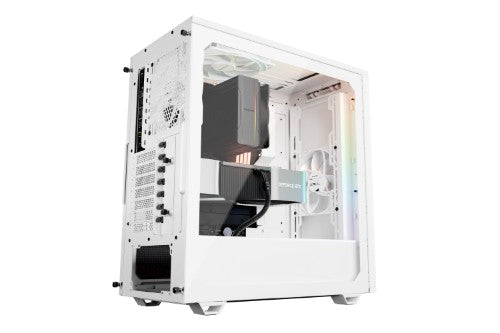

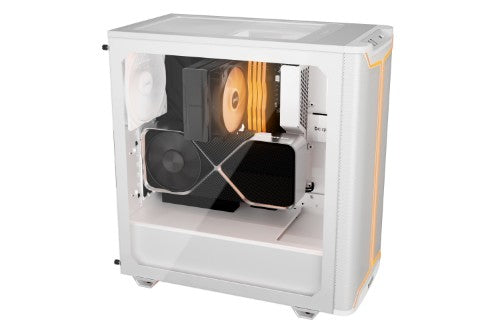

  • Generous space for high-end graphics cards and large coolers, despite compact footprint
  • Optional vertical graphics card installation
  • Water cooling ready for radiators up to 360mm
  • USB 3.2 Gen. 2 Type C for best connectivity
  • Comfortable cable management thanks to a clever and space-optimized cable routing design
  • Side panel made of tempered glass
  • Support for two 3.5" or five 2.5" drives
  • Product conception, design and quality control in Germany

Description

Impressive lighting and airflow
Pure Base 501 DX White is an impressively illuminated be quiet! ATX case with compact dimensions and high airflow for any application. Elevate your system with the elegant ARGB lighting and relish the show.

Specifications

Design
Volume 24.4 L
Fan connector 4-pin
Anti-dust filter Yes
Material Acrylonitrile butadiene styrene (ABS), Glass, Steel
Number of 5.25" bays 0
Number of 3.5" bays 2
Number of 2.5" bays 5
Supported motherboard form factors ATX, micro ATX, Mini-ATX
Side window Yes
Illumination location Front
Illumination colour Multi
Illumination Yes
Product colour White
Number of expansion slots 7
Maximum graphics card length 36.8 cm
Maximum PSU length 20 cm
Type PC
Form factor Midi Tower
Technical details
Number of 5.25" bays 0
Number of 3.5" bays 2
Number of 2.5" bays 5
Supported motherboard form factors ATX, micro ATX, Mini-ATX
Supported HDD sizes 2.5,3.5"
Side window Yes
Product colour White
Number of expansion slots 7
Maximum graphics card length 36.8 cm
Maximum PSU length 20 cm
Type PC
Form factor Midi Tower
Sustainability certificates Triman
Warranty period 3 year(s)
Compliance certificates CE, RoHS, UKCA, WEEE
Material
Material Acrylonitrile butadiene styrene (ABS), Glass, Steel
Indication
Illumination location Front
Illumination colour Multi
Illumination Yes
Power supply
Supported power supply form factors ATX, PS2
Power supply included No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 0
Fan connector 4-pin
Audio input Yes
Audio output Yes
USB 2.0 ports quantity 0
Cooling
Front radiator sizes supported 120,140,240,280,360 mm
Rear radiator sizes supported 120,140 mm
Top radiator sizes supported 120,240 mm
Noise level (high speed) 21.9 dB
Maximum airflow 57.4 cfm
Fan rated voltage 5 - 13.2 V
Fan rated current 0.06 A
Fan power consumption 3.6 W
Front fans installed 1x 140 mm
Number of front fans supported (max) 3
Front fans diameters supported 120,140 mm
Rear fans installed 1x 140 mm
Number of rear fans supported (max) 1
Rear fans diameters supported 120,140 mm
Top fans installed 1x 140 mm
Number of top fans supported (max) 2
Top fans diameters supported 120,140 mm
Liquid cooling capability Yes
Maximum air pressure 0.96 mmH2O
Pulse-width modulation (PWM) support Yes
Storage
Supported HDD sizes 2.5,3.5"
Weight & dimensions
Volume 24.4 L

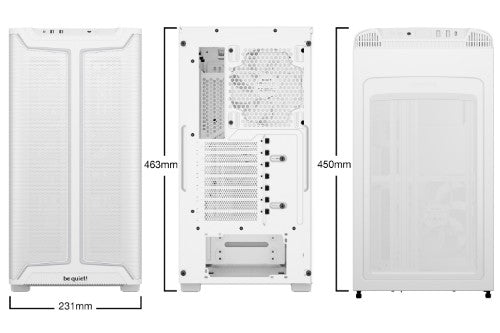

Width 231 mm
Depth 450 mm
Height 463 mm
Weight 7.9 kg
Packaging data
Package width 292 mm
Package height 503 mm
Package depth 518 mm
Package weight 9.2 kg
Other features
Volume 24.4 L
Maximum airflow 57.4 cfm
Fan connector 4-pin
