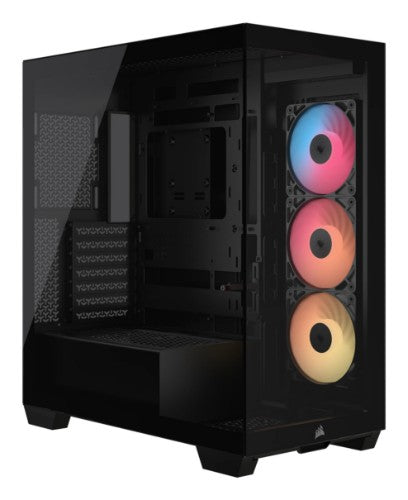

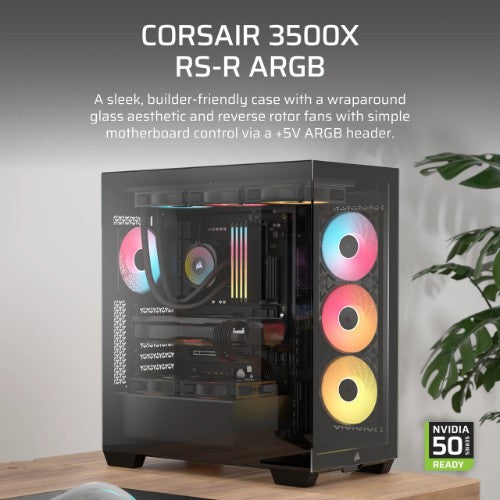

Corsair 3500X RS-R ARGB Midi Tower Black

Midi Tower, Mini-ITX/Micro-ATX/ATX/E-ATX, Steel/Tempered Glass

Key Features

• Wraparound glass view with removable front and side panels
• Three pre-installed RS120-R ARGB fans
• Builder-friendly features for a high-performance custom PC
• Side, roof, and PSU fan mounting points for great cooling
• Compatible with reverse connection motherboards

Description

VERSATILITY BUILT-IN
BUILD WITHOUT BOUNDARIES

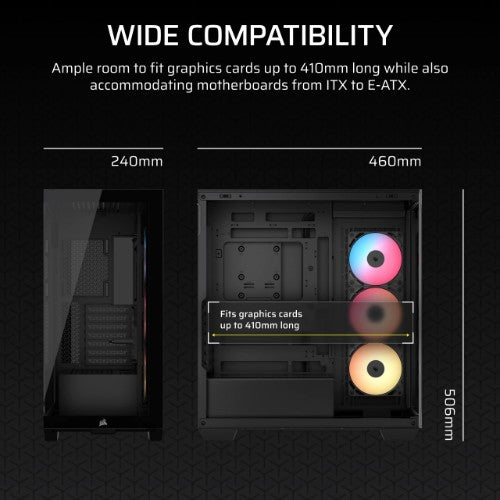

You don’t need a large footprint to build a decked-out PC. The 3500X accommodates most large graphics cards and CPU coolers, 360mm radiators, and even E-ATX motherboards, without taking up your entire desk.

ATTENTION TO DETAILS
REVERSE MOTHERBOARD SUPPORT
Validated for use with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards featuring connections on the back of the board, so your view isn’t spoiled by cables.

STRENGTH IN NUMBERS

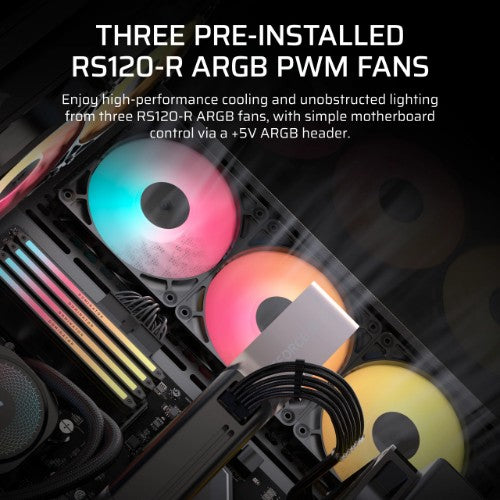

INCLUDES RS120-R ARGB PERFORMANCE FANS
Three RS120-R ARGB fans deliver great cooling and vivid lighting, with daisy-chain connections for simple setup. Their reverse-rotor design keeps the vibrant LEDs fully visible, so lighting effects remain clear and unobstructed.

These fans incorporate CORSAIR Magnetic Dome bearings, AirGuide technology, and custom-engineered fan blades, delivering exceptional cooling performance for both radiator and case setups.

THE AIR IN THERE
COOLING PERFORMANCE

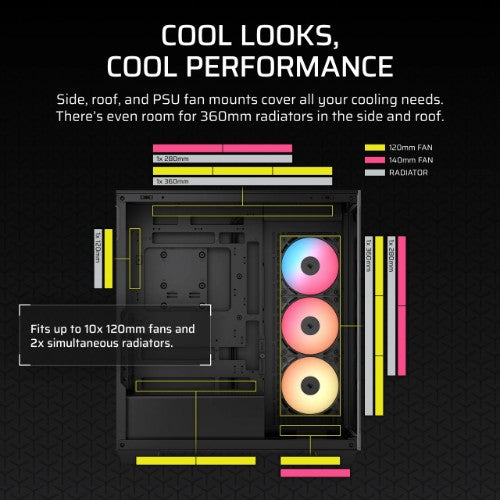

Strong cooling is paramount for a modern PC, and the 3500X excels with side, roof, and PSU fan mounts so you can cover all the angles. And with 360mm radiator mounting points in the side and roof, you’ll have plenty of potential for liquid cooling.

A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the 3500X has the convenient features to take the hassle out of your build.

REMOVABLE GLASS PANELS
The front and side tempered glass panels that give the 3500X its signature look are easily removable for quick access.

CABLE ROUTING
A spacious interior and roomy 38mm behind the motherboard makes cable routing easy and comfortable, while a set of DoubleShot grommets ensures it looks tidy.

SAG-FREE GRAPHICS CARDS
Includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 10x 120mm fans, plus versatile radiator mounting options including up to 360mm in the side and roof.

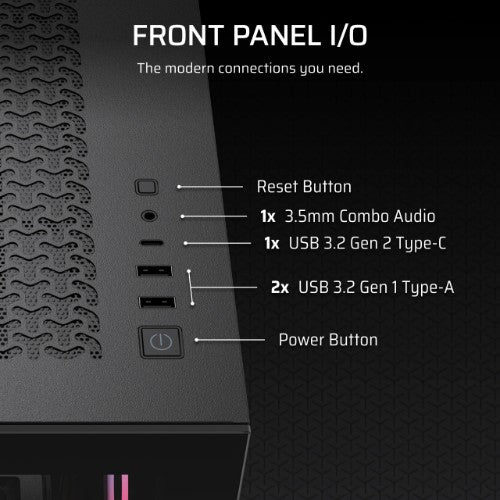

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Supported HDD sizes	3.5"
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	17 cm
Maximum graphics card length	42.5 cm
Maximum PSU length	18 cm
Type	PC
Form factor	Midi Tower
Warranty period	2 year(s)
Material
Material	Steel, Tempered glass
Indication
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Ergonomics
Reset button	Yes
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	17 cm
Maximum graphics card length	42.5 cm
Maximum PSU length	18 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Rear radiator sizes supported	120 mm
Top radiator sizes supported	240,280,360 mm
Side fans installed	3x 120 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	3
Bottom fans diameters supported	120,140 mm
Liquid cooling capability	Yes
Side radiator sizes supported	240,280,360 mm
Storage
Supported HDD sizes	3.5"
SSD form factor	2.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	240 mm
Depth	460 mm
Height	506 mm
Weight	10.7 kg
Packaging data
Manual	Yes
Other features
Manual	Yes
