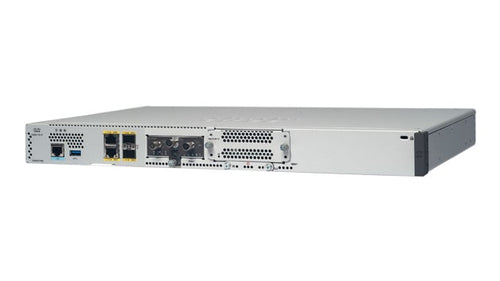

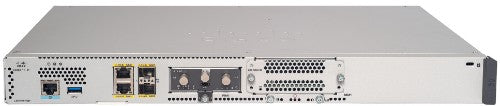

Cisco Catalyst 8200 wired router Gigabit Ethernet Grey

500 Mbps IPsec, 4GB DRAM, 1U, 4x WAN RJ-45, 43.9x438.1x299.7 mm

Description

The Cisco® Catalyst® 8200 Series Edge Platforms with Cisco IOS® XE SD-WAN software deliver Cisco’s secure, cloud-scale SD-WAN solution for the small branch. The platforms are purpose-built for performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. They have a wide variety of interface options to choose from, with backward compatibility to existing WAN, LAN, and voice modules. Powered by Cisco IOS XE, a fully programmable software architecture, and API support, the Catalyst 8200 Series can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. The platforms also come with a trustworthy solutions 2.0 infrastructure that secures them against threats and vulnerabilities through advanced integrity verification and remediation of threats. The 8200 Series is well suited for small and medium-sized enterprise branch offices at optimal price/performance with integrated SD-WAN services. The Catalyst 8200 Series Edge Platforms are offered in two models: C8200L-1N-4T for the small branch with SASE-compliant, cloud-based security requirements, and C8200-1N-4T for the small to medium-sized branch with requirements for higher throughput, scale, and service flexibility. In addition to supporting SASE-compliant cloud-based security services, the C8200-1N-4T also delivers a flexible system of best-in-class, on-premises security services through container-based apps, using Cisco’s third-party ecosystem.

Specifications

Network
Network address translation (NAT)	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah
VLAN support	Yes
Ethernet interface type	Gigabit Ethernet
Memory
Internal memory	4096 MB
Performance
Internal memory	4096 MB
Built-in processor	Yes
Mean time between failures (MTBF)	692577 h
WAN connection
Ethernet WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
Management features
Web-based management	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
Protocols
DHCP server	Yes
DHCP client	Yes
Technical details
Rack mounting	Yes
Built-in processor	Yes
Mean time between failures (MTBF)	692577 h
Product colour	Grey
Harmonized System (HS) code	85176990
Security
Network address translation (NAT)	Yes
Security algorithms	IPSec
Access Control List (ACL)	Yes
Features
Internal memory	4096 MB
Built-in processor	Yes
Mean time between failures (MTBF)	692577 h
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950-1 IEC/EN 60825
Processor manufacturer	Intel
Design
Rack mounting	Yes
Product colour	Grey
Rack capacity	1U
Power
Power source type	AC
AC input voltage	90 - 264 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 85%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3050 m
Weight & dimensions
Width	438.1 mm
Depth	299.7 mm
Height	43.9 mm
Weight	4.54 kg
Certificates
Certification	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950-1 IEC/EN 60825
