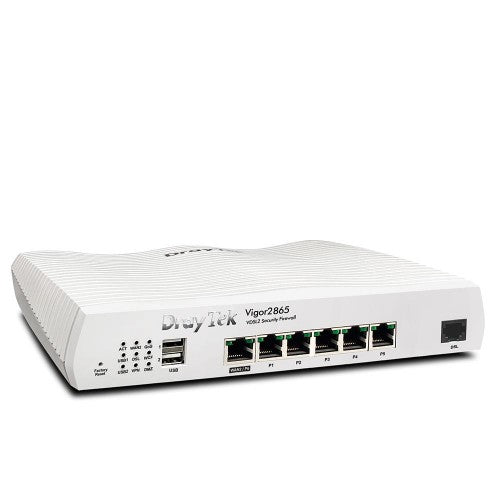

DrayTek Vigor 2865L-5G VDSL router | with 5G LTE modem

Multi-WAN Gigabit Performance Router with Load-Balancing & Failover 5G / LTE with Dual-SIMs for Second Backup Telco VDSL2 (Superfast Fibre) and Gigabit Ethernet WAN Router 32 LAN-to-LAN & Remote Teleworker VPN Tunnels

Key Features

• VDSL2 (Superfast Fibre) and Gigabit Ethernet WAN Router
• Multi-WAN Gigabit Performance Router with Load-Balancing & Failover
• Up to 950Mbps Firewall Throughput for Ethernet WAN
• 5+1 Gigabit RJ-45 LAN Ports
• Up to 800Mbps VPN Throughput with IPsec acceleration
• 32 LAN-to-LAN & Remote Teleworker VPN Tunnels
• 16 DrayTek SSL VPN or OpenVPN Tunnels
• 5G / LTE with Dual-SIMs for Second Backup Telco – New!
• 8 LAN Subnets with VLANs (Port-based / 802.1q)
• SPI Firewall and Content Filtering
• Optional VigorCare Available
• Compatible with VigorACS Central Management Platform

Description

Vigor 2865L-5G VDSL router with integrated 5G modem Multi-WAN Gigabit Performance Router with Load-Balancing & Failover 5G / LTE with Dual-SIMs for Second Backup Telco VDSL2 (Superfast Fibre) and Gigabit Ethernet WAN Router 32 LAN-to-LAN & Remote Teleworker VPN Tunnels The Vigor 2865L-5G is a VDSL and Ethernet WAN router featuring VPN, advanced routing features, firewall, content filtering, bandwidth management and more. Connect the Vigor 2865 to Superfast Fibre with its integrated VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN. Featuring high throughput with Load Balancing and Failover connectivity, suitable for handling Fibre to the Premises (FTTP) and Gigabit Internet connections. Offering up to 950Mbps per-WAN of Hardware Accelerated throughput while retaining its full feature set. The integrated 5G/LTE modem provides fast 5G Mobile Broadband with Carrier Aggregation to get the best performance out of 5G Broadband, for use as a backup connection or primary Internet connection. Route Policy - Powerful Routing Management The Vigor 2865L-5G provides full policy-based control of where and how outbound traffic is routed with Route Policy: VPN Routing Send all or select traffic through VPN services. Hostname Routing Route access to individual websites, Internet domains (i.e. www.bbc.co.uk) and hostnames through a VPN tunnel or a specific WAN. Service Routing Push specific services or ports, such as DNS, through a set WAN, an alternative Gateway or VPN Tunnel. Failover & Failback Extensive control of Failover with multiple Failover rules and paths. Manage how connections are moved back to the primary connection, after a failover has occurred with Failback settings.

Specifications

Ethernet LAN features
Cabling technology	10/100/1000Base-T(X)
Full duplex	Yes
Network
Guest access	Yes
Wake-on-LAN ready	Yes
Network address translation (NAT)	Yes
Internal modem	Yes
Port forwarding	Yes
Cabling technology	10/100/1000Base-T(X)
Full duplex	Yes
Throughput	1.3 Gbit/s
Static route	Yes
Multicast support	Yes
Policy-based routing	Yes
VLAN support	Yes
Differentiated services (DiffServ) supported	Yes
Ethernet interface type	Gigabit Ethernet
Performance
Firmware upgradeable	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	Yes
3G/4G USB modem compatibility	Yes
Mobile network
Mobile network generation	5G
DSL features
Internal modem	Yes
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
VDSL2	Yes
Management features
Wake-on-LAN ready	Yes
Universal Plug and Play (UPnP)	Yes
Firmware upgradeable	Yes
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Interface-based traffic policing	Yes
Ports & interfaces
USB ports quantity	1
USB version	2.0
Ethernet LAN (RJ-45) ports	5
RJ-11 ports quantity	1
DC-in jack	Yes
WAN/Ethernet LAN ports quantity	1
Protocols
Routing protocols	BGP, RIP
DMZ support	Yes
DHCP server	Yes
DHCP client	Yes
Technical details
On/off switch	Yes
Rack mounting	Yes
Firmware upgradeable	Yes
Policy-based routing	Yes
Warranty period	2 year(s)
PSTI certified	Yes
Security
Guest access	Yes
DoS attack prevention	Yes
IP address filtering	Yes
Network address translation (NAT)	Yes
URL filtering	Yes
Firewall	Yes
Security algorithms	3DES, AES, HTTPS, IPSec, MD5, MSCHAPv2, SHA-1, SHA-2, SHA-256, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS, TLS, WEP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-Personal, WPA2-RADIUS, WPA2-TKIP, WPA3, WPA3-EAP, WPA3-Enterprise, WPA3-PSK, WPA3-Personal
VPN tunnels quantity	32
System event log	Yes
VPN support	IPsec, SSL, OpenVPN, WireGuard, PPTP, L2TP
ARP attack prevention	Yes
Access Control List (ACL)	Yes
ICMP attack prevention	Yes
Design
Housing material	Plastic
Wall mountable	Yes
On/off switch	Yes
Rack mounting	Yes
Rack capacity	1U
Power
Power source type	AC
Power consumption (max)	31.2 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	241 mm
Depth	165 mm
Height	44 mm
Weight	600 g
Packaging data
Package type	Box
AC adapter included	Yes
Quick start guide	Yes
Packaging content
Package type	Box
AC adapter included	Yes
Quick start guide	Yes
