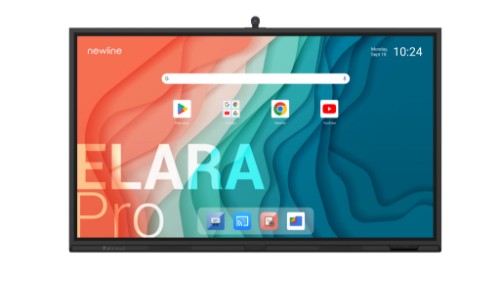

Newline Elara Pro interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Black

86" 3840 x 2160 (4K), Stellar Touch Technology, Android 13, RAM 16 GB, Storage 320 GB, VESA 800 x 400

Key Features

• Google EDLA Certified
• Android 13
• Ready to use hybrid solution
• High precision of writing thanks to Certified Zero Bonding
• Personal user profiles
• Compatible with any hardware and software, super easy to connect to

Description

Elara Pro, a Google EDLA certified powerhouse, seamlessly integrated with Google Apps. This flexible solution ensures a superior user experience in any workspace. High-precision writing, immersive sound with a subwoofer, NFC-enabled login and hybrid UC redefine collaboration. Reinvent your workspace, setting a new standard in corporate excellence with Elara Pro.

Certified Google Integration
Google EDLA (Enterprise Device Licensing Agreement) certification ensures compatibility and optimal performance with Google applications and services. Users can collaborate in real time, edit documents, and share ideas effortlessly.

Plug & Play USB-C
Starting a lesson is effortless with the Elara Pro plug-and-play design. Simply connect your laptop through the convenient USB Type-C cable, and class can begin. Plus, the Elara Pro Series will keep your laptop charged with 100 Watts of power.

Powerful Android 13
Powered by the latest and most advanced Android 13 operating system, the Elara Pro is highly customizable, allowing for tailored user profiles.

Better Connectivity with Wi-Fi 6
The built-in Wi-Fi 6 module provides secure connectivity for up to 30 devices, making it a breeze to connect and collaborate.

4K AI ModCam+ Camera
Be UC-ready with ultra-high-definition Newline 4K AI ModCam+ Camera. Featuring two built-in microphones, the ModCam+ picks up clear, high-quality sound without the need for separate mic array.

Up to 40 Points of Touch
Save time and effort with a feature that understands your writing gestures. The Elara Pro supports up to 40 points of touch and Object Recognition that can differentiate between fingers, pens and palms to react as a marker, thin pen or eraser. All of this to make for a smoother and more natural writing experience.

NFC Easy Login
Elara Pro features NFC easy login. Each user can login to the tab of an NFC card or NFC sticker. Besides comfort, NFC also allows you to login in a more secure way. It avoids any person present in the (class)room to see your password!

Superior Connection
Newline’s Elara Pro brings to you smart connectivity through diverse ports and wireless compatibility. The diversity in connection ports provide great options for all types of devices, making the interactive display more accessible to all users. Ports located on the front and the back of the panel make it easy to use the panel in any mounting situation.

Specifications

Display
Display diagonal	2.18 m (86")
Working area	1895 x 1066 mm
Contrast ratio (typical)	5000:1
Touchscreen	Yes
Accuracy touch	1 mm
Number of simultaneous touchpoints	50
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	5 ms
Haze rate	5%
Touch technology	Multi-touch
Display brightness	450 cd/m²
Display resolution	3840 x 2160 pixels
Display number of colours	1.07 billion colours
HD type	4K Ultra HD
LED backlighting type	Direct-LED
Anti-glare screen	Yes
Surface material	Tempered glass
Native aspect ratio	16:9
Hardness	7H
Palm rejection	Yes
LED backlight	Yes
Features
Display diagonal	2.18 m (86")
Working area	1895 x 1066 mm
Contrast ratio (typical)	5000:1
Touchscreen	Yes
Accuracy touch	1 mm
Number of simultaneous touchpoints	50
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	5 ms
Haze rate	5%
Touch technology	Multi-touch
Display brightness	450 cd/m²
Display resolution	3840 x 2160 pixels
Display number of colours	1.07 billion colours
HD type	4K Ultra HD
LED backlighting type	Direct-LED
Anti-glare screen	Yes
Surface material	Tempered glass
Native aspect ratio	16:9
Hardness	7H
Palm rejection	Yes
LED backlight	Yes
Product colour	Black
Operating system installed	Android
Computer system
Operating system installed	Android
Built-in processor	Yes
User memory	320 GB
Processor cores	8
RAM capacity	16 GB
RAM type	DDR4
Processor architecture	ARM Cortex A76 + ARM Cortex A55
Operating system version	13
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	20 W
Built-in subwoofer	Yes
Subwoofer RMS power	20 W
Number of microphone arrays	8
Built-in microphone	Yes
Projector
Built-in projector	No
Contrast ratio (typical)	5000:1
Network
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi	Yes
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ports & interfaces
HDMI ports quantity	4
Ethernet LAN (RJ-45) ports	2
RS-232 ports	1
USB Type-C ports quantity	2
USB 2.0 Type-B Touch ports quantity	4
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.2
S/PDIF out port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Line-out	Yes
OPS slot	1
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi	Yes
Ethernet LAN	Yes
Ergonomics
Wall mountable	Yes
Product colour	Black
VESA mounting	Yes
Panel mounting interface	800 x 400 mm
Power
Power consumption (typical)	168 W
Power consumption (standby)	0.5 W
System requirements
Windows operating systems supported	Yes
Mobile operating systems supported	Android
Technical details
Working area	1895 x 1066 mm
Touchscreen	Yes
Accuracy touch	1 mm
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Response time	5 ms
Haze rate	5%
Quantity per pack	1 pc(s)
Weight & dimensions
Width	1982 mm
Depth	119 mm
Height	1191 mm
Weight	65 kg
Packaging data
Quantity per pack	1 pc(s)
Stylus included	Yes
Packaging content
Stylus included	Yes
Processor
Built-in processor	Yes
Processor cores	8
Processor architecture	ARM Cortex A76 + ARM Cortex A55
Chipset	Rockchip RK3588
Memory
User memory	320 GB
RAM capacity	16 GB
RAM type	DDR4
Colour
Product colour	Black
