Avocor S-Series 65" 4k IR LED Interactive Displ interactive whiteboard 165.1 cm (65") 3840 x 2160 pixels Touchscreen

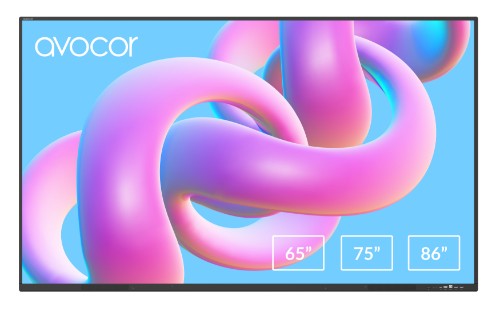

Avocor S-Series 65" 4k IR LED Interactive Display

Key Features

• Available in 65”, 75”, and 86” sizes to fit various classroom and lecture hall needs
• 4K Ultra HD
• 16:9 aspect ratio
• Android 13

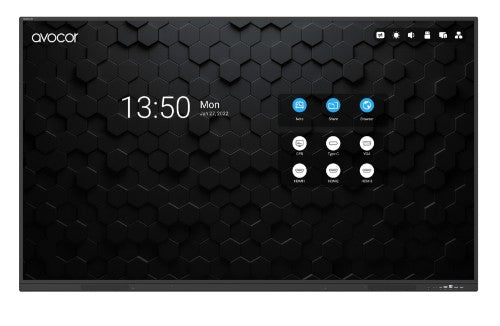

• Intuitive user interface with single touch access to source inputs, settings and key applications out-of-the-box
• Note: Whiteboard and Annotation
• Share: Wireless screen sharing
• Browse: Chromium browser"
• 40 Points of touch with Intuitive low-latency writing experience, Pen/Finger/Palm Differentiation
• Zero parallax glass surface with anti-glare and anti-fingerprint coating for a crisp image with smooth, pixel-perfect inking
• USB Hub Built In
• BYOD - USB-C Single Cable Connection - 65w Power Delivery
• Intel OPS slot for PC expansion
• Wi-Fi module included
• Wall Mount included

Description

The Avocor S Series is a part of our portfolio designed to elevate educational environments, combining sleek design with advanced touch technology. Ideal for classrooms, lecture halls, and hybrid learning settings, the S Series ensures every interaction is engaging and intuitive.

Ensure every educational session, whether in-person or remote, is seamless with the Avocor S Series. Its modern aesthetics and robust functionality make it the perfect solution for schools and universities seeking high performance, interactive displays.

Its diverse connectivity options support seamless integration with various educational tools and devices.
Preloaded with applications like Class, Note, Share, and Browse*, the S Series transforms standard lessons into interactive experiences, keeping students engaged and informed.

Specifications

Display
Display diagonal	165.1 cm (65")
Contrast ratio (typical)	5000:1
Touchscreen	Yes
Technology	Infrared (IR)
Touchscreen type	Infrared
Number of simultaneous touchpoints	40
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display resolution	3840 x 2160 pixels
Display number of colours	1.07 billion colours
HD type	4K Ultra HD
LED backlighting type	Direct-LED
Maximum refresh rate	60 Hz
Anti-glare screen	Yes
Native aspect ratio	16:9
Pen & touch differentiation	Yes
LED backlight	Yes
Features
Display diagonal	165.1 cm (65")
Contrast ratio (typical)	5000:1
Touchscreen	Yes
Technology	Infrared (IR)
Touchscreen type	Infrared
Number of simultaneous touchpoints	40
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Touch technology	Multi-touch
Display brightness	350 cd/m²
Display resolution	3840 x 2160 pixels
Display number of colours	1.07 billion colours
HD type	4K Ultra HD
LED backlighting type	Direct-LED
Maximum refresh rate	60 Hz
Anti-glare screen	Yes
Native aspect ratio	16:9
Pen & touch differentiation	Yes
LED backlight	Yes
Graphics card family	ARM
Graphics card	Mali-G52 MP2
Operating system installed	Android
Country of origin	China
Computer system
Graphics card family	ARM
Graphics card	Mali-G52 MP2
Operating system installed	Android
Maximum internal memory	64 GB
Built-in processor	Yes
Processor cores	4
RAM capacity	8 GB
Processor architecture	ARM Cortex A76 + ARM Cortex A55
Operating system version	13
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
Speaker power	32 W
Network
Bluetooth	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ports & interfaces
USB connector type	USB Type-A, USB Type-B, USB Type-C
HDMI ports quantity	3
HDCP	Yes
Ethernet LAN (RJ-45) ports	2
RS-232 ports	1
USB Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB 2.0 Type-B Touch ports quantity	2
USB 2.0 Type-A hub ports quantity	4
HDMI output ports quantity	1
S/PDIF out port	Yes
HDCP version	2.2
VGA (D-Sub) ports quantity	1
Line-in	Yes
Line-out	Yes
USB Power Delivery up to	65 W
USB Power Delivery (USB PD)	Yes
OPS slot	1
Bluetooth	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Performance
Ambient light sensor	Yes
Operating hours (hours/days)	16/7
Remote control included	Yes
Power
Power consumption (typical)	360 W
Power consumption (standby)	0.5 W
System requirements
Mac compatibility	Yes
Windows operating systems supported	Windows 10, Windows 11, Windows 8
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
Touchscreen	Yes
Technology	Infrared (IR)
Viewing angle, vertical	178°
Viewing angle, horizontal	178°
Country of origin	China
Warranty period	3 year(s)
Remote control included	Yes
Weight & dimensions
Width	1488.4 mm
Depth	87.2 mm
Height	896.6 mm
Weight	34.3 kg
Packaging data
Package width	1628 mm
Package depth	208 mm
Package height	100 mm
Package weight	44.8 kg
Stylus included	Yes
Projector
Contrast ratio (typical)	5000:1
Packaging content
Stylus included	Yes
Mounting brackets included	Yes
Remote control included	Yes
Batteries included	Yes
Pen tray included	Yes
Open Pluggable Specification (OPS) included	No
Stylus pen type	Passive
Number of stylus pens	2
Processor
Built-in processor	Yes
Processor cores	4
Processor architecture	ARM Cortex A76 + ARM Cortex A55
Memory
Maximum internal memory	64 GB
RAM capacity	8 GB
Other features
Country of origin	China
Warranty period	3 year(s)
Logistics data
Country of origin	China
Warranty period	3 year(s)
