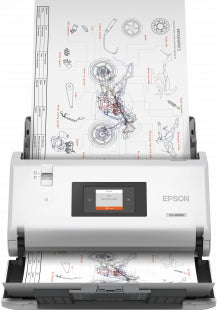

Epson WorkForce DS-30000 Sheet-fed scanner 600 x 600 DPI A3 Black, White

70ppm, 140ipm, 600 DPI, USB 3.0, AC 100 V - 240 V

Key Features

• Space saving: Compact design without compromise on engineering quality
• Fast performance: Up to 70ppm/140ipm scanning at 200 or 300dpi colour
• Flexible scanning: Scan passports and bound media up to 6mm in thickness
• Control and security: Advanced paper handing with paper-protection sensors
• High capacity: Heavy duty 120-sheet document feeder (ADF)

Description

The WorkForce DS-30000 is Epson's first compact A3 desktop scanner. Designed for busy office environments, it features a high-capacity feeder, wide media scanning capabilities and a touchscreen front panel that puts users in control to scan up to 30,000 pages per day

Thanks to Epson's new Complex Production Architecture, the DS-30000 has been engineered to the highest standards to meet the demands of busy departments.

High in capacity and with a robust design, the Automatic Document Feeder (ADF) has the ability to scan the widest range of media in its class¹. Scan passports2, passbooks, ID cards and large-format documents.

Simplify scanning tasks, putting users in control with a 2.7" backlit touchscreen that can display pre-defined scan jobs and highlights machine cleaning and maintenance requirements with easy-to-follow, step-by-step instructions.

The inbuilt advanced paper-protection sensors also prevent documents from being damaged and ultra-sonic sensors ensure all documents are scanned, maintaining data integrity.

The DS-30000 comes with Document Capture Pro 3.0 software with inbuilt OCR functionality, supporting crisp, clear images. A wide range of drivers, including TWAIN, ISIS, WIA, SANE, and ICA allow for easy integration into most document management systems.

For added flexibility and convenience, the optional A4 (DS-5500) and A3 (DS-50000) flatbed scanners enable scanning

Specifications

Scanning
Maximum scan size	304.8 x 5588 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	10 bit
Output colour depth	8 bit
ADF scan speed (b/w, A4)	70 ppm
Sensor type	CIS
Daily duty cycle (max)	30000 pages
Design
Built-in display	Yes
Scanner type	Sheet-fed scanner
Display diagonal	6.86 cm (2.7")
Display	LCD
Product colour	Black, White
Performance
Sensor type	CIS
Daily duty cycle (max)	30000 pages
Scanning noise level	64 dB
Sound pressure level (max)	51 dB
Input capacity
Auto document feeder (ADF) input capacity	120 sheets
Paper handling
Maximum ISO A-series paper size	A3
Ports & interfaces
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1)
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Sound emission
Scanning noise level	64 dB
Power
Power consumption (typical)	17 W
Power consumption (standby)	9 W
Power consumption (off)	0.1 W
Input voltage	100 - 240 V
Power supply type	AC
Sleep mode	Yes
Weight & dimensions
Width	371 mm
Depth	208 mm
Height	219 mm
Weight	5.8 kg
Display
Display diagonal	6.86 cm (2.7")
Display	LCD
Technical details
Scanner type	Sheet-fed scanner
Product colour	Black, White
Harmonized System (HS) code	84716070
Operational conditions
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%
Other features
Scanner type	Sheet-fed scanner
Logistics data
Harmonized System (HS) code	84716070
