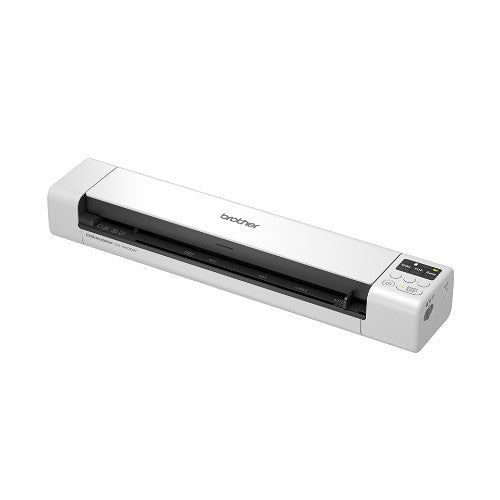

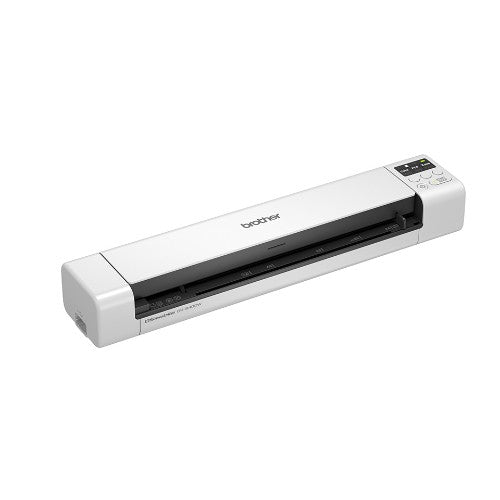

Brother DS-940DW scanner Sheet-fed scanner 600 x 600 DPI A4 Black, White

Wireless scan and go with the DSmobile DS-940DW. Versatile and truly portable with built-in rechargeable battery. Staying on top of your paperwork when you are out of the office is simple.

Key Features

• Automatic 2-sided A4 scanning up to 15 pages per minute
• Space saving ‘U-path’ paper feed system
• Industry leading software to scan documents, receipts and ID cards
• Power directly from a USB 3.0 port on PC
• Built-in rechargeable battery and card reader
• Connect to a wireless network or Brother mobile app

Reasons To Buy

Convenient and space saving

The DSmobile DS-940DW is small and compact, ideal where space is limited. The unique “U-path” paper feed means you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and returned to you.

Enjoy scanning anywhere

Truly portable, the DSmobile DS-940DW scanner has a built-in battery so you can enjoy scanning your documents without the need to plug into a power supply. Simply take your scanner with you, scanning where it’s most convenient for you.

Mixed media, high-quality results

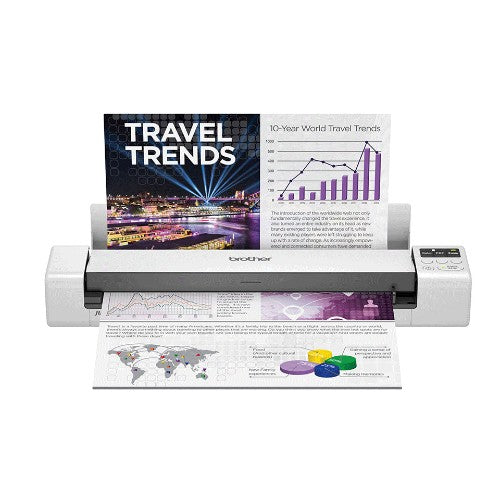

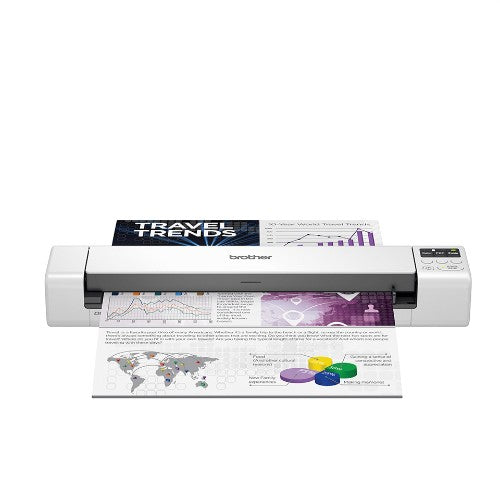

Designed to scan a wide range of documents including A4 documents, ID cards and receipts, makes the DSmobile DS-940DW a true work companion.
The dedicated roller system, ensures your documents are smoothly fed-through, guaranteeing high-quality, digital files are created every time.

Stay effortlessly organised

Using Brother’s free mobile app, viewing and sharing documents on your mobile phone or tablet is effortless. The intuitive LCD panel makes selecting and changing scan functions simple.

Description

The DSmobile DS-940DW is engineered to be truly flexible. Featuring a built-in battery, Wi-Fi and intuitive LCD panel, setup is effortless. Digitising your files whether in the office where space is limited or out on the road is simple. Scan your documents straight to the cloud using Brother's mobile app and easily share your documents with colleagues wherever you are. Your information is kept safe, effortless to find and more convenient to edit. With a unique "U-path" roller system, you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.

Specifications

Scanning
Black/white scanning colour modes	Grayscale, Monochrome
Maximum scan size	215.9 x 1828.8 mm
Optical scanning resolution	600 x 600 DPI
Enhanced scan resolution	1200 x 1200 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
ADF scan speed (b/w, A4)	15 ppm
ADF scan speed (colour, A4)	15 ppm
Duplex ADF scan speed (colour, A4)	30 ipm
Scan to	E-mail, File, Image, Memory card, OCR
Design
Built-in display	No
Scanner type	Sheet-fed scanner
Product colour	Black, White
Performance
Scan to	E-mail, File, Image, Memory card, OCR
Scan drivers	ICA, SANE, TWAIN, WIA
Scanning noise level	53 dB
Internal memory	512 MB
Compatible memory cards	MicroSD (TransFlash)
Sound pressure level (max)	42 dB
Input capacity
Standard input capacity	1 sheets
Paper handling
Maximum scan width	21.6 cm
Maximum scan length	182.9 cm
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plain paper, Plastic Card
Card thickness (max)	1.24 mm
Ports & interfaces
USB connector type	Micro-USB B
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Network
Security algorithms	64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi Direct	Yes
Supported network protocols (IPv4)	DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder,SNTP Client
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Scan drivers	ICA, SANE, TWAIN, WIA
Sound emission
Scanning noise level	53 dB
Power
Power consumption (typical)	3.6 W
Power consumption (standby)	2.2 W
Power consumption (off)	0.11 W
Power supply type	USB
Weight & dimensions
Width	162 mm
Depth	76 mm
Height	377 mm
Weight	590 g
Package depth	162 mm
Package weight	1.23 kg
Package width	377 mm
Package height	76 mm
Packaging data
Package depth	162 mm
Package weight	1.23 kg
Package width	377 mm
Package height	76 mm
Quantity per pack	1 pc(s)
Products per pallet	216 pc(s)
Packaging content
Quick start guide	Yes
Cables included	Micro-USB
Warranty card	Yes
Technical details
Maximum scan width	21.6 cm
Pallet gross height	15.9 cm
Black/white scanning colour modes	Grayscale, Monochrome
Security algorithms	64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
Scanner type	Sheet-fed scanner
Country of origin	China
Compatible memory cards	MicroSD (TransFlash)
Product colour	Black, White
Layers per pallet	8 pc(s)
Master (outer) cases per pallet	72 pc(s)
Master (outer) cases per pallet layer	9 pc(s)
Harmonized System (HS) code	84716070
Pallet type	800 x 1200 mm
Memory
Internal memory	512 MB
Features
Country of origin	China
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Other features
Spare part retention	5 year(s)
Pallet gross weight	274.3 kg
Security algorithms	64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Scanner type	Sheet-fed scanner
Country of origin	China
Products per pallet	216 pc(s)
Layers per pallet	8 pc(s)
Master (outer) cases per pallet	72 pc(s)
Quantity per pack	1 pc(s)
Logistics data
Pallet gross weight	274.3 kg
Country of origin	China
Products per pallet	216 pc(s)
Layers per pallet	8 pc(s)
Master (outer) cases per pallet	72 pc(s)
Quantity per pack	1 pc(s)
Pallet gross height	15.9 cm
Master (outer) cases per pallet layer	9 pc(s)
Harmonized System (HS) code	84716070
