Ricoh fi-8190 ADF + Manual feed scanner 600 x 600 DPI A4 Black, Grey

fi-8190 Scanner - Market defining performance

Description

The evolution of the market’s leading image scanners, the fi-8190 delivers state-of-the-art technology designed to address today’s business challenges and drive sustainable value creation.

Our ground-breaking Clear Image Capture produces image quality that surpasses other available technologies, resulting in industry-leading OCR accuracy rates. PaperStream IP software optimises output files for faster, lower cost operations. Plus, the fi-8190 can easily capture the widest range of document types – from 20gsm to 465gsm, cards or booklets up to 7mm thick.

Driven by ǂ32 new patents, the innovations we have made to the world’s most trusted scanning solution deliver a product you can rely on, now and into the future. The result is reduced power consumption and state-of-the-art Automatic Separation Control that consistently delivers the perfect feed. Meanwhile, Intelligent Sonic Paper Protection (ISoP) and the world’s-first Image Monitoring technology combine for the safe capture and protection of passports, booklets or mixed batches even when labels or photos are attached.

A 100 sheet ADF and 90ppm duplex scanning speed combined with many marginal process gains mean the fi-8190 delivers real-world productivity without equal. Overscan Control and enhanced multifeed detection prevent stoppages from misfeeds, jams or skews, while post-scan filing time is also reduced. And with no need to prepare different document types in separate batches, a fast start-up time and centralised remote scanner monitoring and management, users benefit from uninterrupted operation, maximum uptime and an unsurpassed user experience.

Long-term strategic advantage is also made a reality. Organisational intelligence is enhanced by the scalable, automated capture of richer, more diverse data sets, making the fi-8190 the perfect partner to support the evolution of the digital transformation journey, from the early to advanced stages.

Market defining performance
Clear Image Capture
Clear Image Capture (CIC) is a breakthrough proprietary optical technology innovation debuting in the fi-8190. True image rendering and colour shift prevention deliver industry leading OCR accuracy rates and image quality that surpasses the capabilities of standard CIS or CCD alone. And, as a more efficient optical technology, power consumption for every scan is reduced. CIC also enables capture of the widest range of document types from 20gsm-465gsm – including A4 envelopes, cards, passports, or booklets up to 7mm thick.

Tech you can trust
Automatic Separation Control
Our ǂpatented Automatic Separation Control delivers the perfect feed so organisations can scan larger volumes and mixed batches of documents with confidence. By sensing their weight and adapting and adjusting torque automatically, mis-feed and mid-scan interruptions are eliminated. This guarantees feed stability for different document formats and saves users from wasting time sorting different document types into individual batches. It also enables the 100 sheet ADF capacity and higher speeds for more efficient, high-throughput workgroup scanning.

Industry leading paper protection
The fi-8190 protects documents from damage using innovative new technology. Patentedǂ Image Monitoring identifies overly skewed documents in real time and halts the scanning process before they can be damaged. ISoP (excluding fi-8150, fi-8250 models) will do the same if it detects any abnormal feed sounds. While Lag Detection ensures documents are feeding through at the expected speed.

Specialist passport capture capability

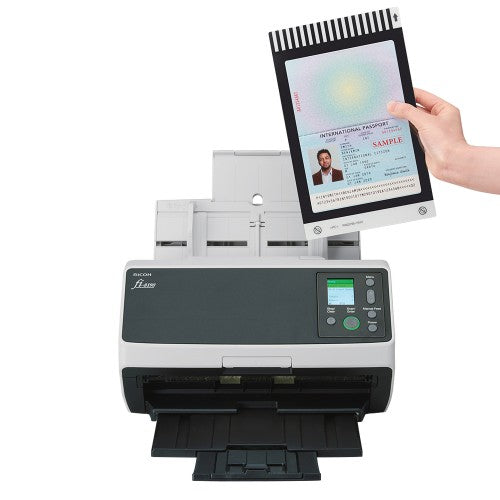

The patentedǂ feeding mechanism ensures safe capture of passports without a carrier sheet, while MRZ recognition ensures consistently accurate capture of personal data.

Real-world productivity without equal
Enhanced multi-feed detection
Unnecessary stoppages in the scanning process are eliminated by automatically recognising and ignoring cards, stickers, and small defined attachments. This patentedǂ technology is an evolution beyond standard multi-feed detection which stops when anything beyond a single sheet is identified during feed through.

High speed, high throughput
Fast boot time and up to 90ppm duplex mean the fi-8190 delivers a highly efficient scanning process for the ultimate in workgroup productivity. Incorporating USB 3.2 and gigabit LAN connectivity also makes rapid file transfer possible.

Overscan Control
Automatically adjust scanning area to prevent image loss on skewed documents, removing the need to ever have to rescan slightly skewed documents. Three precisely positioned sensors detect document edges and adjust the scanning area accordingly to fit the document, even if it has been inserted at a skewed angle. Users can scan safe in the knowledge that the entire document will be scanned every time and no part of the image will ever be lost.

Urethane rollers
Urethane rollers are resistant to absorption of oil from NCR paper, unlike EPDM rollers which can swell and affect feed torque. Maintaining their integrity avoids misfeed and jams for consistent feed performance.

Stacker support
Ergonomically designed stacker support neatly stacks scanned documents for faster, easier post-scan filing.

ǂpatents pending

Specifications

Scanning
Black/white scanning colour modes	Grayscale, Monochrome
Maximum scan size	216 x 355.6 mm
Optical scanning resolution	600 x 600 DPI
Duplex scanning	Yes
ADF scan speed (b/w, A4)	90 ppm
Sensor type	Dual CIS
Light source	LED
Scan file formats	JPEG, PDF, PNG, TIFF
Design
Built-in display	Yes
Scanner type	ADF + Manual feed scanner
Product colour	Black, Grey
Control type	Buttons
Performance
Sensor type	Dual CIS
Light source	LED
Scan file formats	JPEG, PDF, PNG, TIFF
Scan drivers	ISIS, TWAIN
Scanner smart software features	Blank page detection
Input capacity
Auto document feeder (ADF) input capacity	100 sheets
Paper handling
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Post Card(JPN)
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6
Card thickness (max)	1.4 mm
ID-cards (ISO/IEC 7810) compliant	Yes
Paper tray media weight	20 - 465 g/m²
Ports & interfaces
USB connector type	USB Type-B
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Socket connector type	C5
Network
Ethernet LAN	Yes
Software
Scan drivers	ISIS, TWAIN
Power
Power consumption (typical)	30 W
Power consumption (standby)	0.2 W
Input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Sleep mode	Yes
Weight & dimensions
Width	170 mm
Depth	163 mm
Height	300 mm
Weight	4 kg
Package depth	399 mm
Package weight	5.6 kg
Package width	249 mm
Package height	264 mm
Packaging data
Package depth	399 mm
Package weight	5.6 kg
Package width	249 mm
Package height	264 mm
Quantity per pack	1 pc(s)
Packaging content
Cables included	AC
AC adapter included	Yes
Technical details
Pallet gross width	101.6 cm
Pallet gross length	121.9 cm
Black/white scanning colour modes	Grayscale, Monochrome
Scanner type	ADF + Manual feed scanner
Country of origin	Indonesia
Product colour	Black, Grey
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	8471607000
Wood packaging weight	0 g
Plastic packaging weight	15 g
Paper packaging weight	2.4 kg
Metal packaging weight	0 g
Compliance certificates	RoHS
Media formats
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6
Features
Country of origin	Indonesia
Sustainability
Sustainability certificates	ENERGY STAR
Other features
Compliance certificates	RoHS
Ethernet LAN	Yes
Scanner type	ADF + Manual feed scanner
Country of origin	Indonesia
Quantity per pack	1 pc(s)
Logistics data
Country of origin	Indonesia
Quantity per pack	1 pc(s)
Pallet gross width	101.6 cm
Pallet gross length	121.9 cm
Harmonized System (HS) code	8471607000
Wood packaging weight	0 g
Plastic packaging weight	15 g
Paper packaging weight	2.4 kg
Metal packaging weight	0 g
Products per pallet (sea)	84 pc(s)
Products per pallet (air)	48 pc(s)
Polystyrene (EPS/EPP) packaging weight	200 g
Pallet height (sea)	197.4 cm
Pallet height (air)	118 cm
Foil packaging weight	15 g
Glass packaging weight	0 g
Cardboard packaging weight	1.2 kg
