Epson DS-C490 Sheet-fed scanner 600 x 600 DPI A4 Black, Grey

600 x 600 DPI, ReadyScan LED technology, 40 ppm, 20 Sheets, Duplex Scan, 296‎ x 104 x 125 mm, 1.9 kg

Key Features

• Ultra-compact Smallest footprint, even while in use
• Versatile Scan passports, receipts, invoices, cards and more
• Two-in-one U-turn pass and straight pass give you two scanners in one
• Lower environmental impact Power consumption of only 3.3W in ready mode and 1.0W in sleep mode
• Document Capture Pro Powerful document capture software included

Description

Ultra-compact
When the scanner is in U-turn path position, paper can be scanned without adding to the device's footprint, making it the perfect choice when space is at a premium.

Versatile
The DS-C490 is extremely versatile, handling from envelopes and PL cards to long paper and A3 (stitched). It can even scan passports and booklets up to 5mm thick, capturing the MRZ zone of the passport and saving in Excel compatible formats. The DS-C490 also comes with a host of enhancement features, enabling you to improve text sharpness, as well as correcting edge folds, tears, border shadows and punch hole removal. The inbuilt Ultra-sonic sensor eliminates double feeding ensuring peace of mind that all pages are captured. Plus scan to Microsoft applications Word, Excel, PowerPoint. Compatible with Windows, Mac, and Chromebook.

Two-in-one

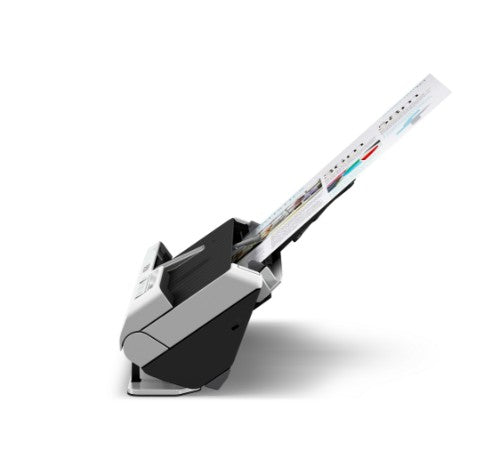

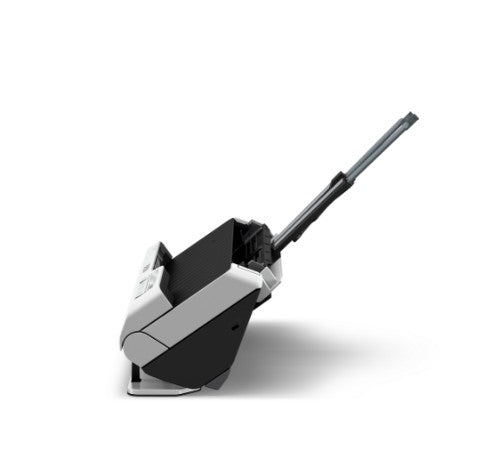

The selector allows you to easily switch between straight path mode and U-turn mode, even while in operation, enabling you to create a single PDF. When the scanner is in U-turn mode, paper can be scanned without adding to the device's footprint, making it the perfect choice when space is at a premium.

Lower environmental impact
With a power consumption of only 3.3W in ready mode and 1.0W in sleep mode, it will also save you energy.

Specifications

Scanning
Output greyscale depth	8 bit
Maximum scan size	215.9 x 5588 mm
Optical scanning resolution	600 x 600 DPI
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
ADF scan speed (b/w, A4)	40 ppm
ADF scan speed (colour, A4)	40 ppm
Duplex ADF scan speed (b/w, A4)	80 ipm
Duplex ADF scan speed (colour, A4)	80 ipm
Input greyscale depth	10 bit
Roller lifetime	50000 pages
Light source	ReadyScan LED
Scan file formats	BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max)	6500 pages
Design
Built-in display	No
Scanner type	Sheet-fed scanner
Product colour	Black, Grey
Control type	Buttons
Performance
Light source	ReadyScan LED
Scan file formats	BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max)	6500 pages
Scan drivers	ICA, ISIS, SANE, TWAIN, WIA
Input capacity
Auto document feeder (ADF) input capacity	20 sheets
Paper handling
Maximum ISO A-series paper size	A4
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6
Paper tray media weight	40 - 413 g/m²
Ports & interfaces
USB port	Yes
USB version	2.0
Software
Windows operating systems supported	Windows 10, Windows 10 x64, Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks, Yes
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016
Scan drivers	ICA, ISIS, SANE, TWAIN, WIA
Power
Power consumption (typical)	10 W
Power consumption (standby)	1 W
Input voltage	100 - 240 V
Power supply type	AC
Weight & dimensions
Width	296 mm
Depth	104 mm
Height	125 mm
Weight	1.9 kg
Packaging data
Quantity per pack	1 pc(s)
Media formats
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6
Sustainability
Sustainability certificates	ENERGY STAR
Technical details
Scanner type	Sheet-fed scanner
Product colour	Black, Grey
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 x64, Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks, Yes
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%
Other features
Compliance certificates	RoHS
Scanner type	Sheet-fed scanner
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
