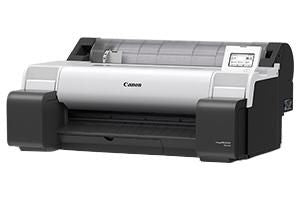

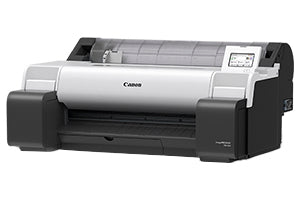

Canon imagePROGRAF TM-240 large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN

24", 2400 x 1200 dpi, 5 x 55ml, 2GB, USB B, Gigabit LAN

Description

Reimagine printing performance with the sustainable 24” imagePROGRAF TM-240, offering less noise printing, more re-intuitive functionality and brilliant image quality for AEC offices, retail and education.

Reimagine performance with an elevated printing experience
Seamlessly create professional quality prints with reliable productivity, intuitive functionality and sustainable operation processes. Produce sharp, crisp lines and vivid red colour for eye-catching marketing materials and accurate CAD prints.

Enhanced professional quality
The new magenta ink produces a more brilliant red and stable image enhancements mean crisper lines. Print vivid and accurate CAD drawings, posters, educational materials and more.

Reliable productivity
Productivity that you can count on, with reliable performance, faster processing time and a quick return from sleep mode. Save time trimming excess margins with borderless print, giving full bleed images of any size, straight from the device.

Intuitive functionality
Functional design with a 4.3” touch screen panel displaying intuitive instructions and important information, like media type, remaining media and ink amount. Roll paper can be replaced with ease on the flat-top cover.

Improved sustainability
Environmentally conscious EPEAT Gold1 rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices.

Specifications

Print technology
Number of print cartridges	5
Print technology	Inkjet
Printing colours	Pigment black, Pigment cyan, Pigment magenta, Pigment matte black, Pigment yellow
Colour	Yes
Print head nozzles	15360
Maximum resolution	2400 x 1200 DPI
Page description languages	CALS G4, HP-GL/2, HP-RTL, JPEG
Printing
Number of print cartridges	5
Print technology	Inkjet
Printing colours	Pigment black, Pigment cyan, Pigment magenta, Pigment matte black, Pigment yellow
Colour	Yes
Borderless printing	Yes
Print head nozzles	15360
Maximum resolution	2400 x 1200 DPI
Page description languages	CALS G4, HP-GL/2, HP-RTL, JPEG
Copying
Copying	No
Scanning
Scanning	No
Print quality
Printing colours	Pigment black, Pigment cyan, Pigment magenta, Pigment matte black, Pigment yellow
Maximum resolution	2400 x 1200 DPI
Paper handling
Maximum roll width	61 cm
Maximum roll diameter	15 cm
Print margin roll	2 cm
Print margin cut-sheet	20, 31, 3 mm
Media thickness	0.07 - 0.8 mm
Maximum roll length	18 m
Cut sheets	Yes
Borderless printing media sizes	A1, A2, A3, A3+, B2, B4
Borderless printing	Yes
Maximum print size	A1 (594 x 841 mm)
Paper tray media types	Cut sheet, Roll
Media types
Paper tray media types	Cut sheet, Roll
Media formats
Maximum roll width	61 cm
Maximum roll diameter	15 cm
Maximum roll length	18 m
Borderless printing media sizes	A1, A2, A3, A3+, B2, B4
Borderless printing	Yes
Ports & interfaces
USB port	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
USB connector	USB Type-B
Ethernet LAN	Yes
Mobile printing technologies	Apple AirPrint
Technical details
Maximum roll diameter	15 cm
Line accuracy	0.1%
Print margin roll	2 cm
Print margin cut-sheet	20, 31, 3 mm
Borderless printing	Yes
Sustainability compliance	Yes
Compliance certificates	CE, UKCA
Performance
Product colour	Black, Grey
Internal memory	2000 MB
Sound pressure level (printing)	39 dB
Control type	Touch
Built-in display	Yes
Display diagonal	10.9 cm (4.3")
Sound pressure level (standby)	35 dB
Network
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Memory
Internal memory	2000 MB
Design
Product colour	Black, Grey
Control type	Touch
Built-in display	Yes
Display diagonal	10.9 cm (4.3")
Sound emission
Sound pressure level (printing)	39 dB
Power
Power consumption (typical)	59 W
Power consumption (off)	0.1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (sleep)	2.2 W
Operational conditions
Operating relative humidity (H-H)	10 - 80%
Operating temperature (T-T)	15 - 30 °C
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8.1
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	978 mm
Depth	748 mm
Height	439 mm
Weight	40 kg
Packaging data
Cartridge(s) included	Yes
Packaging content
Cartridge(s) included	Yes
Other features
Line accuracy	0.1%
